Barmag, SW46 1S-800, 1986, POY/FOY Filament Spinning Machine, 64 Ends, 500 To/a Capacity

Barmag, SW46 1S-800, 1986, POY/FOY Filament Spinning Machine, 64 Ends, 500 To/a Capacity

Description

  1. Overview
    1. Barmag poy/foy filament spinning machine, year 1986
    2. Field of application: filament spinning machine – poy / foy
    3. Machine capacity: 500 to/a
    4. Number of ends: 64
    5. Spin-titre range: 19 - 67 dtex
    6. Shroud: 80.5 mm
    7. Convergance length: 97 + 202 cm
    8. Quench length: 1040 mm
    9. Max. bobbin weight: 21 kg
  2. Specifications
    1. Chips drying: fixed bed dryer

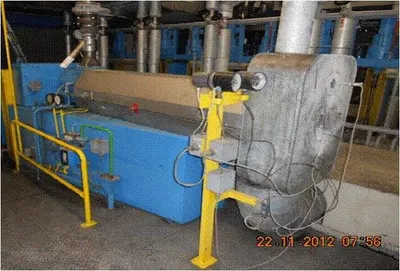

    2. Extruder: Barmag 7e4, 60 mm diameter
    3. Spin-pumps: Mahr 4x0.6 – 7 to 29 g/min
    4. Finish-pumps: Mahr 8x0.5 – 0.5 to 2.5 g/min
    5. Winder: Barmag sw46 1s-800, 800 mm chuck length, 4 bobbins
    6. Additive dosing: none
  3. Condition and Inclusions
    1. Machines and equipment are sold without pack internals (filters, screens, sand) or drawings of the same
    2. Sold without spinnerettes or drawings
    3. Sold without automation (pcs, dcs) hardware or software
    4. Available spare parts are sold separately
