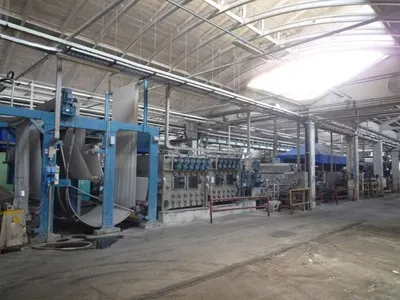

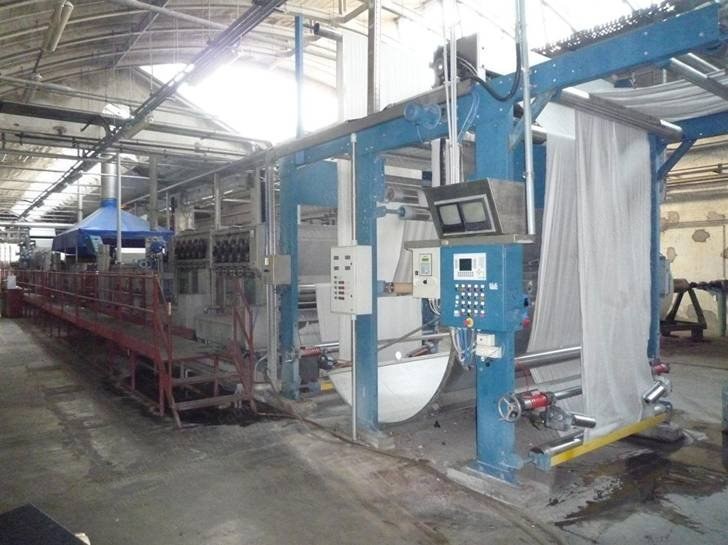

Benninger, Dimensa Mod. MS3-1E-LG Extracta-1800, 1999, 1800mm Working Width, 2000mm Roller Length, 50 m/min Speed

Benninger, Dimensa Mod. MS3-1E-LG Extracta-1800, 1999, 1800mm Working Width, 2000mm Roller Length, 50 m/min Speed Sold

Description

  1. Overview
    1. Width: 1800 mm
    2. Roller length: 2000 mm
    3. Motors side: right
    4. Average working speed: 50 m/min (depending on weight of fabric)
  2. Machine Components
    1. Fabric inlet with J box
    2. Compensator
    3. No. 2 extracta pre washing units, total fabric content 58 m
    4. No. 1 closed double impregnation unit for mercerizing process, type 21 w - fabric content 15 m

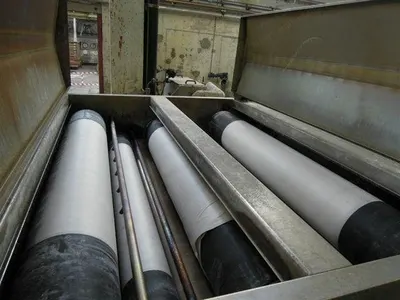

    5. High performance squeezer, linear pressure max 500 N/cm
    6. Feeding unit to the chain compartment

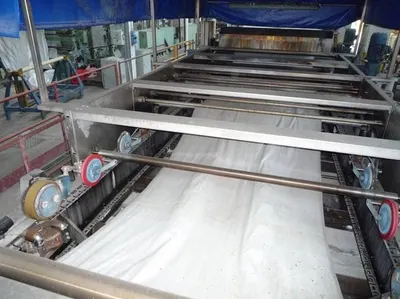

    7. Levelling and tentering by vertical pin chain for fabric from 800 to 1900 mm, including all spray nozzles for caustic soda application on the fabric, with rotation filter, tanks for caustic recovery and circulation pump
    8. High performance squeezer, linear pressure max 500 N/cm
    9. Mercerizing stabilization unit, fabric content 8.5 m
    10. High performance squeezer, linear pressure max 500 N/cm

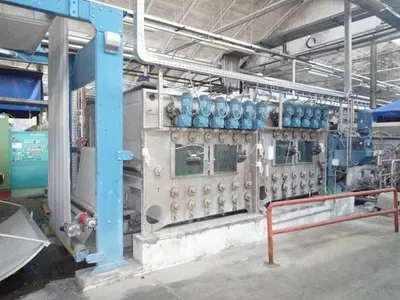

    11. No. 1 extracta washing units type lg da 6c, fabric content 30 m
    12. No. 1 extracta washing units type lg da 6c, fabric content 28 m
    13. High performance squeezer, linear pressure max 500 N/cm
    14. No. 1 closed washing unit mod. becoflex type lg ea 7/2
    15. High performance squeezer, linear pressure max 500 N/cm
    16. Peripherical winder max Ø 2000 mm
    17. Control panel with LCD display
  3. Included Accessories
    1. Automatic dosing system of the acid, including dosing tank 140 lt in PE installed on the dosing pump
    2. Computerized system for soda preparation and dosing system
    3. System allows to maintain the concentration +/- 1 baume changing concentration from caustification process to mercerizing process and viceversa within 20/25 minutes
    4. All the process wet on wet and dry on wet are adjustable
    5. All the operations such as filling, emptying etc are automatically processed
  4. Electrical Specifications
    1. Tension control: 24 VDC / 230 VAC
    2. Motors total power: approx 110 kW
    3. Installed power: approx 180 kVA
    4. Siemens inverters
  5. Condition
    1. Stopped last month, on the mill floor
