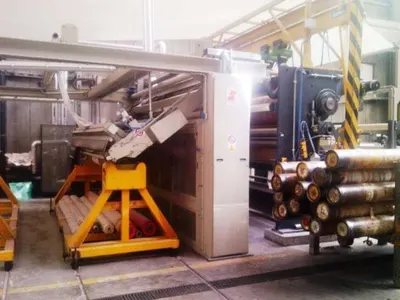

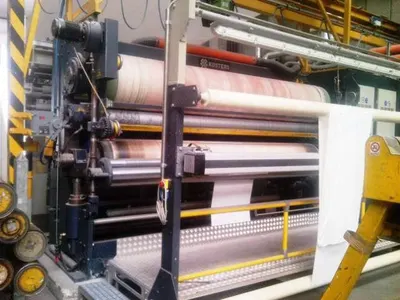

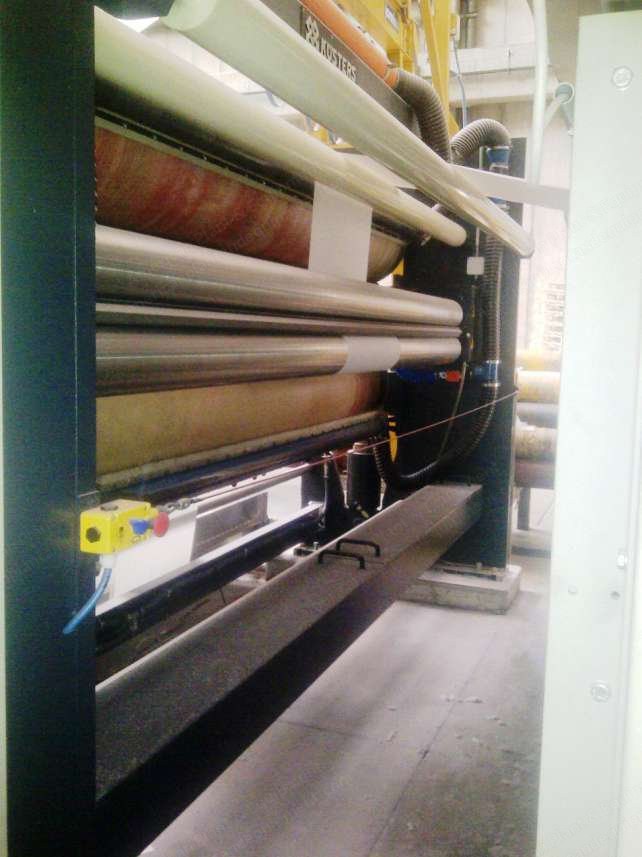

Description Overview For embossing, smoothing, lurching, and light compaction Make: Kusters Model: 213-40 Width: 3600 mm Working width: 3400 mm Year: 2001 With S-roll Fabric weight: 50-200 g/m2 Linear pressure max: 100 N/mm Speed max: 80 m/min, min: 2 m/min Main command power: 16 kW Tension operation: 400V +/- 10% Command tension: 230V, 50 Hz Water required pressure: 2-3 bar Temperature required: 15-18°C Compressed air required pressure: 6 bar Oil heated Roll Configuration N 3 rolls: elastic upper roll diam. 640 mm, polycotton covered with oscillating roller bearings Middle roll with steel shaft Lower roll Kusters S-roll floating roll, diam. 500 mm, with flexure control Superior chromed steel roll diam. 300 mm, heating by thermic oil Middle paper roll diam. 500 mm Hydraulic and Cooling Systems Hydraulic system for Kusters floating roll and jacks with tank and pump Water cooling by heat exchanger with temperature sensor and magnetic valve Correction device for pressure inside Kusters floating roll Cooling device for elastic roll covering and Kusters floating roll covering, composed of 2 fans and 1 tube for air cooling for each roll Additional Equipment 1 windener 1 group of 2 fabric cooling rollers diam. 180 mm in stainless steel Electric board Caipo seams controlling device for rollers protection Salvade Reel Salvade reel 3400 mm, year 2001 2 rolling positions Roll diam. max 1800 mm Pneumatic braking for roll hardness control Transversal cutting at the beginning of the roll Pneumatic system for rolls lifting and safety Stainless steel widener
