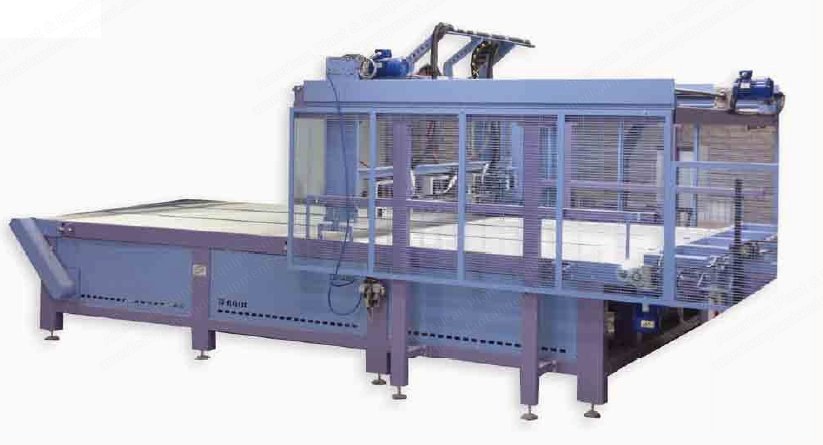

Gruppo Grassi, G6001, Automatic Line for Hot-Melt Gluing Foam Mattresses, 2200x2200mm Max Working Range, 80kg Fuser Capacity

Gruppo Grassi, G6001, Automatic Line for Hot-Melt Gluing Foam Mattresses, 2200x2200mm Max Working Range, 80kg Fuser Capacity

Description

  1. Overview
    1. One location, small space requirement and extreme functionality enable automatic operation of tipping, glueing the fabric and final assembly of the mattress.
    2. With this line you can constantly manage the quantity of glue by type of product regardless of the size or the shape, determine the points of bonding in relation to programs and customized recipes, quantify a certain cost.
  2. Composed Of
    1. 3 feeding conveyor silicone surface non-stick.
    2. 1 automatic glueing machine with 3 heads spray nozzles.
    3. 1 integrated to tipper flip the mattress and paste it from both sides.
    4. 1 fuser glue to 80 kg, 8-outlet, with 2 pumps ceramics gear controlled by a microprocessor.
    5. Independent temperature controls and start up and automatic preheating programmable.
  3. Accessories And Options
    1. Touch screen 12" with operator interface.
    2. Integrated overturner newly developed.
    3. Modem with full control of telecare.
  4. Specifications
    1. Working range: minimum 500 mm x 500 mm - maximum 2200 mm x 2200 mm.
    2. Height: minimum 10 mm - maximum 400 mm.
    3. Maximum speed: 30 meters/minute (adjustable by inverter).
    4. Fuser: capacity 80 kgs, 8 outputs (either smaller version).
    5. Maximum temperature: 199 degrees.
    6. Dimensions: 5276 cm x 2710 x 2430 cm.
    7. Weight: 3500 kgs.
    8. Power supply: 400 volt + n + t - 50/60 hz.
    9. Air pressure: 6/8 bar.
