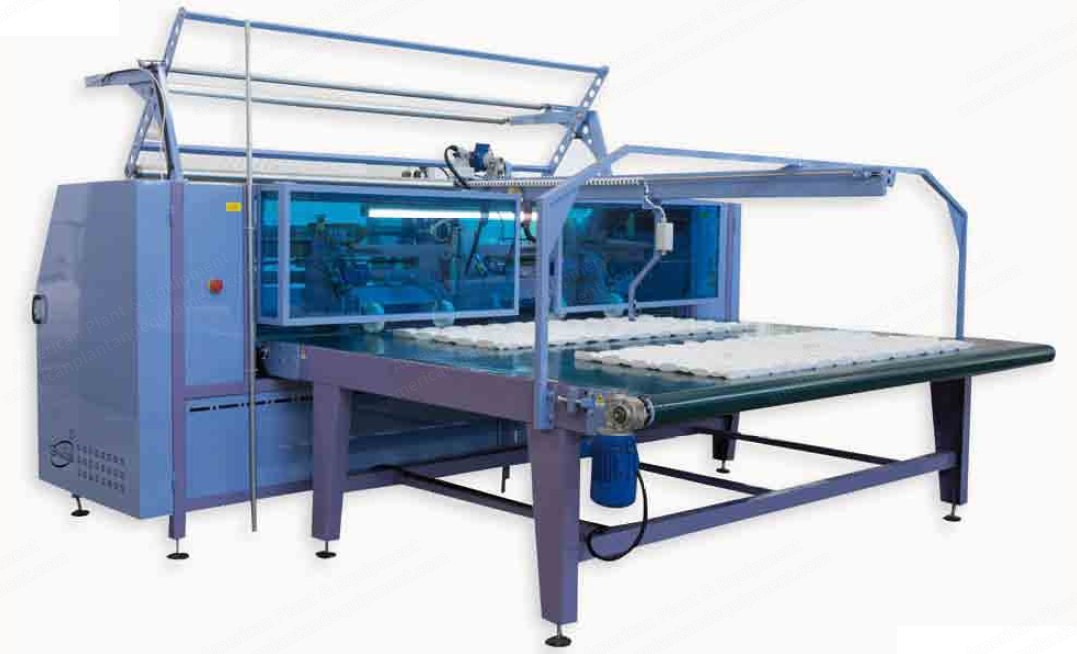

NovaStar, MA266, Electronic Cutting Machine, Working Width 3200mm, 3 Cycles/Min (New)

NovaStar, MA266, Electronic Cutting Machine, Working Width 3200mm, 3 Cycles/Min

Description

  1. Overview
    1. High precision automatic cutter capable of cutting padded quilted fabrics with ease and precision.
    2. Suitable for a diverse range of knitted fabrics, jacquard, stretch, cotton, quilted with light and heavy padding, polyester, polyurethane, visco, latex or wool.
    3. Especially for technical fabrics quilted with elastic inside magnetic stripes, natural or synthetic fibers.
    4. Can be placed in line with automatic quilting lines or used for cutting from a roll of fabric or quilted.
  2. Equipment
    1. Selvedge trimmers with 2 blades, diameter 300 mm, with cooling and automatic sharpening.
    2. Cross cutting with 1 blade, diameter 300 mm, with cooling and automatic sharpening.
    3. Arrangement for feeding nonstick fluid on the bakes, particularly suitable for very thick fabrics with high percentage of polyester and polypropylene.
  3. Accessories and Options
    1. Touch-screen color to set sizes, select programs and recipes cut, adjustable speed.
    2. Production controls.
    3. Load sequential orders.
  4. Specifications
    1. Working width: 2500 mm / 3200 mm (depending on the version chosen).
    2. Working width sanders: from 175 cm to 250/320 cm.
    3. Production: 3 cycles per minute.
    4. Cutting accuracy: +/- 5 mm.
    5. Cutting thickness: 10 mm to 50 mm.
    6. Blades for cutting: 2 side blades and 1 cross blade.
    7. Selvedge trimmers: automatic.
    8. Dimensions: 390 cm x 360 cm x 230 cm.
    9. Weight: 1600 kg.
    10. Power: 6 kW.
    11. Power supply: 400 volts + N + T – 50/60 Hz.
    12. Air pressure: 6/8 bar.
