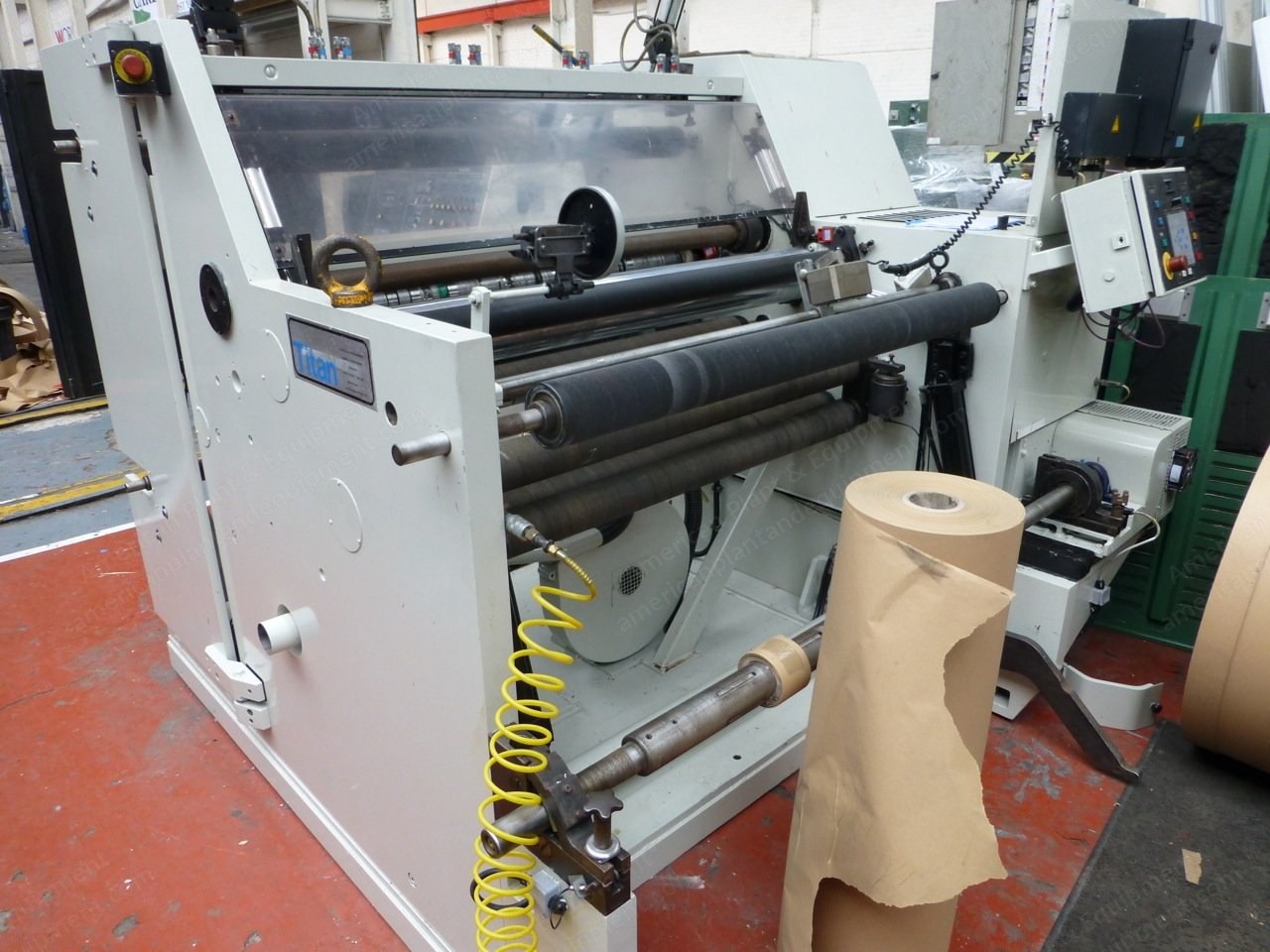

Titan, SR6, 1991, 1300mm Web Width, Duplex Centre Wind, 4 Rotary Shear Knives

Titan, SR6, 1991, 1300mm Web Width, Duplex Centre Wind, 4 Rotary Shear Knives

Description

  1. Overview
    1. Maximum web width: 1300 mm
    2. Age: 1991
  2. Unwind Section
    1. Maximum unwind reel diameter: 1000 mm
    2. Unwind type: shafted
    3. Number of unwind shafts: 1 x 76 mm dia
    4. Roll lifting at unwind: yes
  3. Rewind Section
    1. Maximum rewind reel diameter: 800 mm
    2. Rewind type: duplex centre wind
    3. Finished rolls removal: yes, unloading pedestal
  4. Slitting Section
    1. Number of knives: 4 rotary shear
    2. Razor or shear: rotary fitted; razor possible at 2000 euro extra cost
    3. Number of slitting shafts: 1
    4. Number of quick locks: 16 x 76 mm, 8 x 152 mm
  5. Controls and Features
    1. Edge guide: E&L electronic
    2. Edge trim fan and extraction: yes
