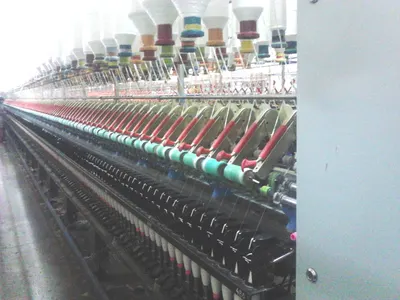

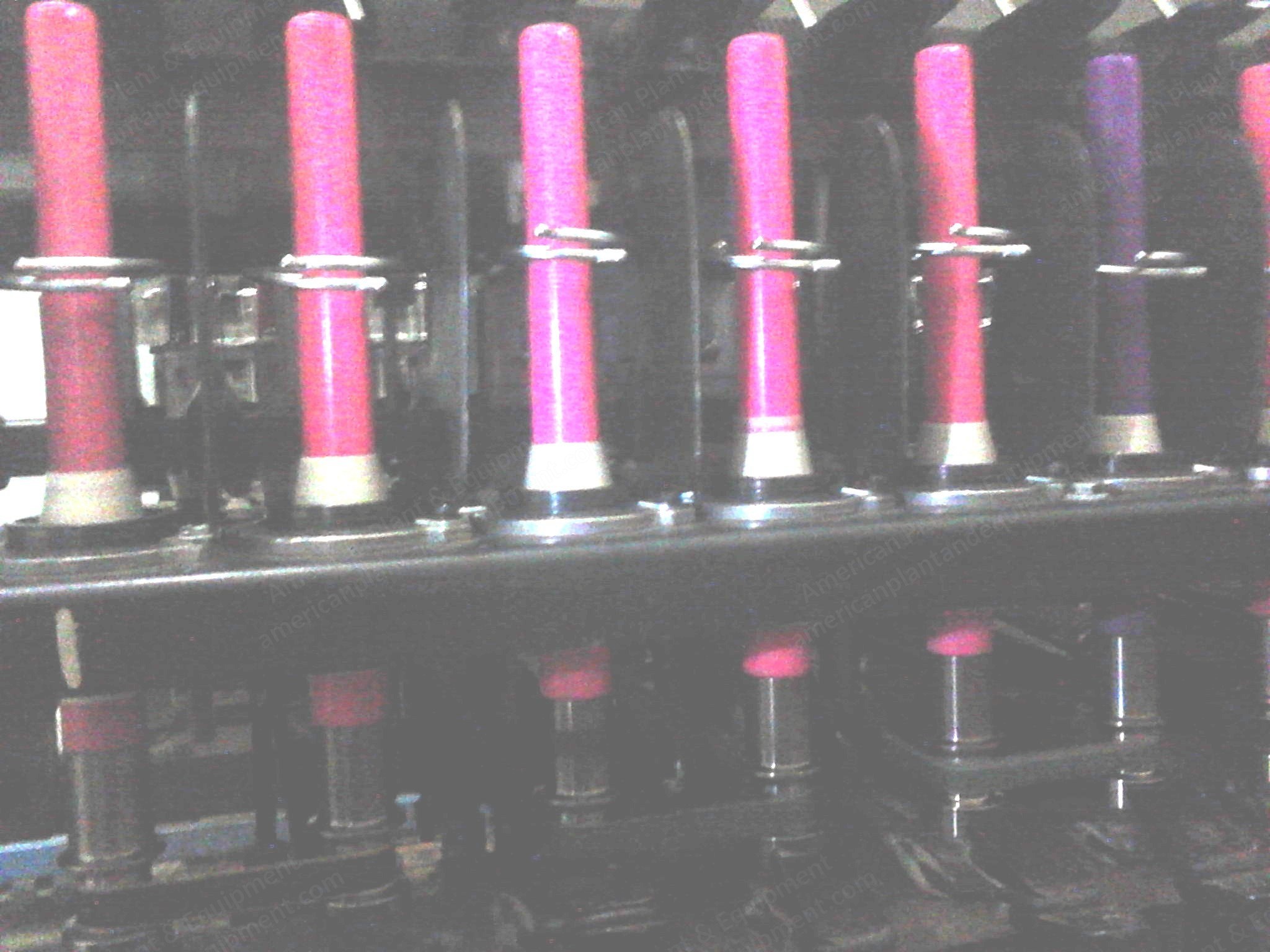

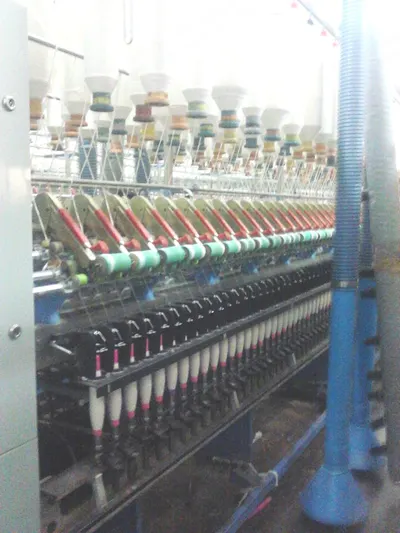

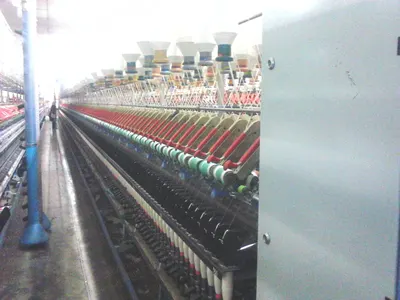

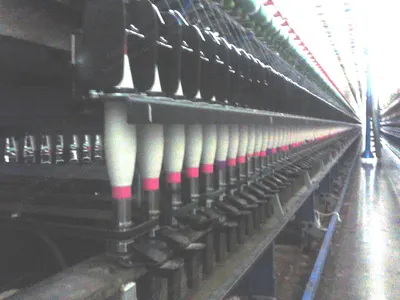

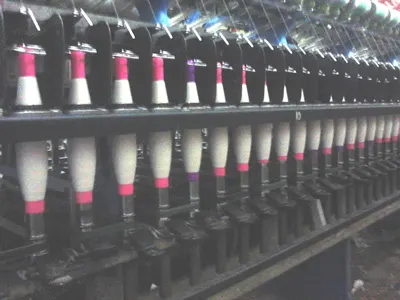

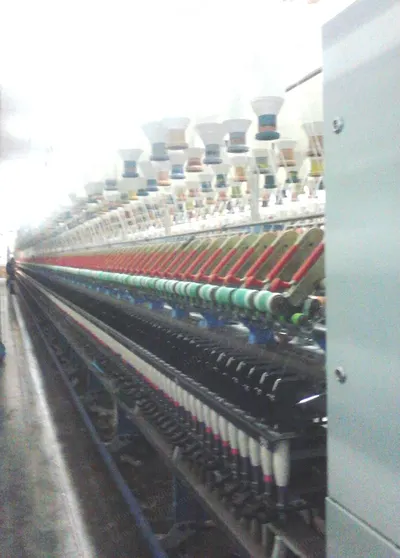

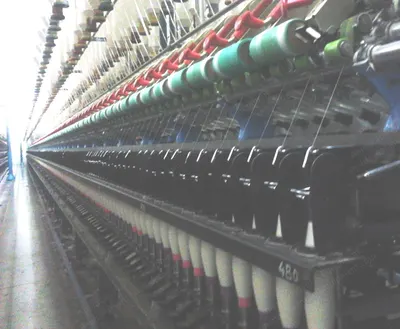

Jingwei, F 1520, 2007, Ring Spinning Frames, 1008 Spindles, 70mm Gauge

Jingwei, F 1520, 2007, Ring Spinning Frames, 1008 Spindles, 70mm Gauge

Description

  1. Jingwei Ring Frames 1008 Spindles Year 2007
    1. Quantity: 12
    2. Model / year: F 1520 - 2007
    3. Number of spindles per frame: 1008
    4. Gauge of machine: 70 mm
    5. Machine lift: 180 mm
    6. Ring diameter and flange: 40 mm x 1 flange
    7. Make of ring: Kanhai
    8. Yarn counts: Ne 120 to Ne 6
    9. Twist per inch: 5.3 to 46.2 t/inch
    10. Draft ratio: total 10 to 50 (rear zone 1.06 to 1.53)
    11. Type of twist: Z or S
    12. Spindle driving: main shaft pulley (bakelite - 10" dia.) driving 4 spindles
    13. Spindle wharve diameter: 20.5 mm

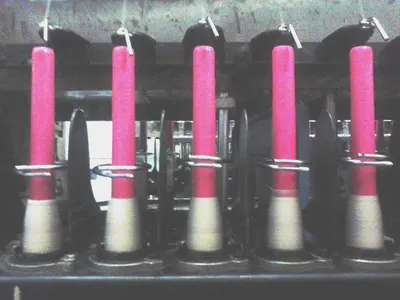

    14. Spindle top part: aluminium plug type

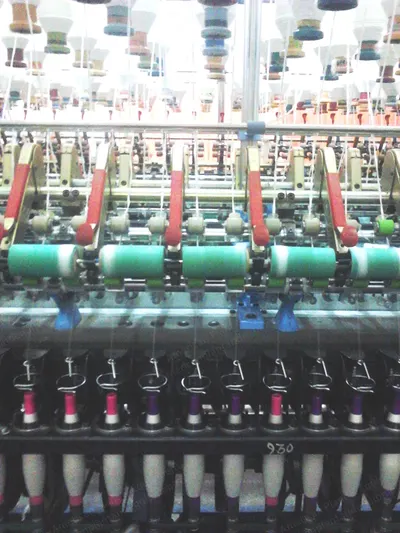

    15. Drafting system: three line rollers - short aprons - spring loaded pendulum arm weighting
    16. Bottom roll diameter: 27 mm
    17. Type of creel: umbrella type - 6 rows
    18. Roving package size: max. 152 mm dia x 406 mm lift
    19. Type broken end suction: individual suction tube for each spindle with waste collection box having 5.0 kw suction motor with 500 mm impeller

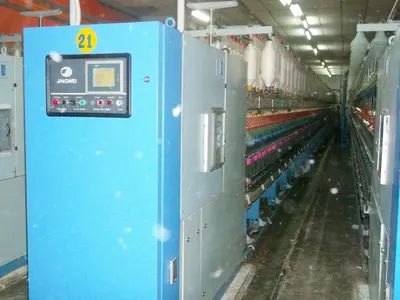

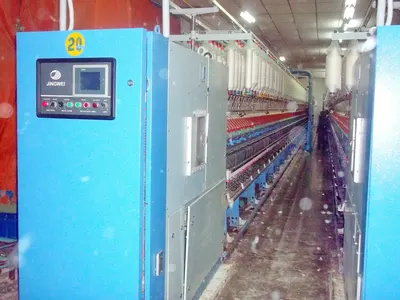

    20. Electrical control: PLC, inverter and PLC control
    21. Overhead cleaner: individual
    22. Make of overhead cleaner: Unirol
    23. Drafting: Texpart
  2. Jingwei Ring Frames 960 Spindles Year 2007
    1. Quantity: 6
    2. Model / year: F 1520 - 2007
    3. Number of spindles per frame: 960
    4. Gauge of machine: 70 mm
    5. Machine lift: 180 mm
    6. Ring diameter and flange: 40 mm x 1 flange
    7. Make of ring: Kanhai
    8. Yarn counts: Ne 120 to Ne 6
    9. Twist per inch: 5.3 to 46.2 t/inch
    10. Draft ratio: total 10 to 50 (rear zone 1.06 to 1.53)
    11. Type of twist: Z or S
    12. Spindle driving: main shaft pulley (bakelite - 10" dia.) driving 4 spindles
    13. Spindle wharve diameter: 20.5 mm
    14. Spindle top part: aluminium plug type
    15. Drafting system: three line rollers - short aprons - spring loaded pendulum arm weighting
    16. Bottom roll diameter: 27 mm
    17. Type of creel: umbrella type - 6 rows
    18. Roving package size: max. 152 mm dia x 406 mm lift
    19. Type broken end suction: individual suction tube for each spindle with waste collection box having 5.0 kw suction motor with 500 mm impeller
    20. Electrical control: PLC, inverter and PLC control
    21. Overhead cleaner: individual
    22. Make of overhead cleaner: Unirol
