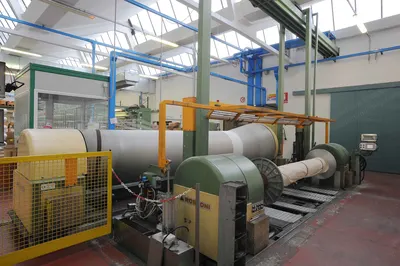

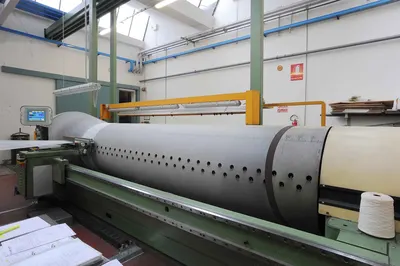

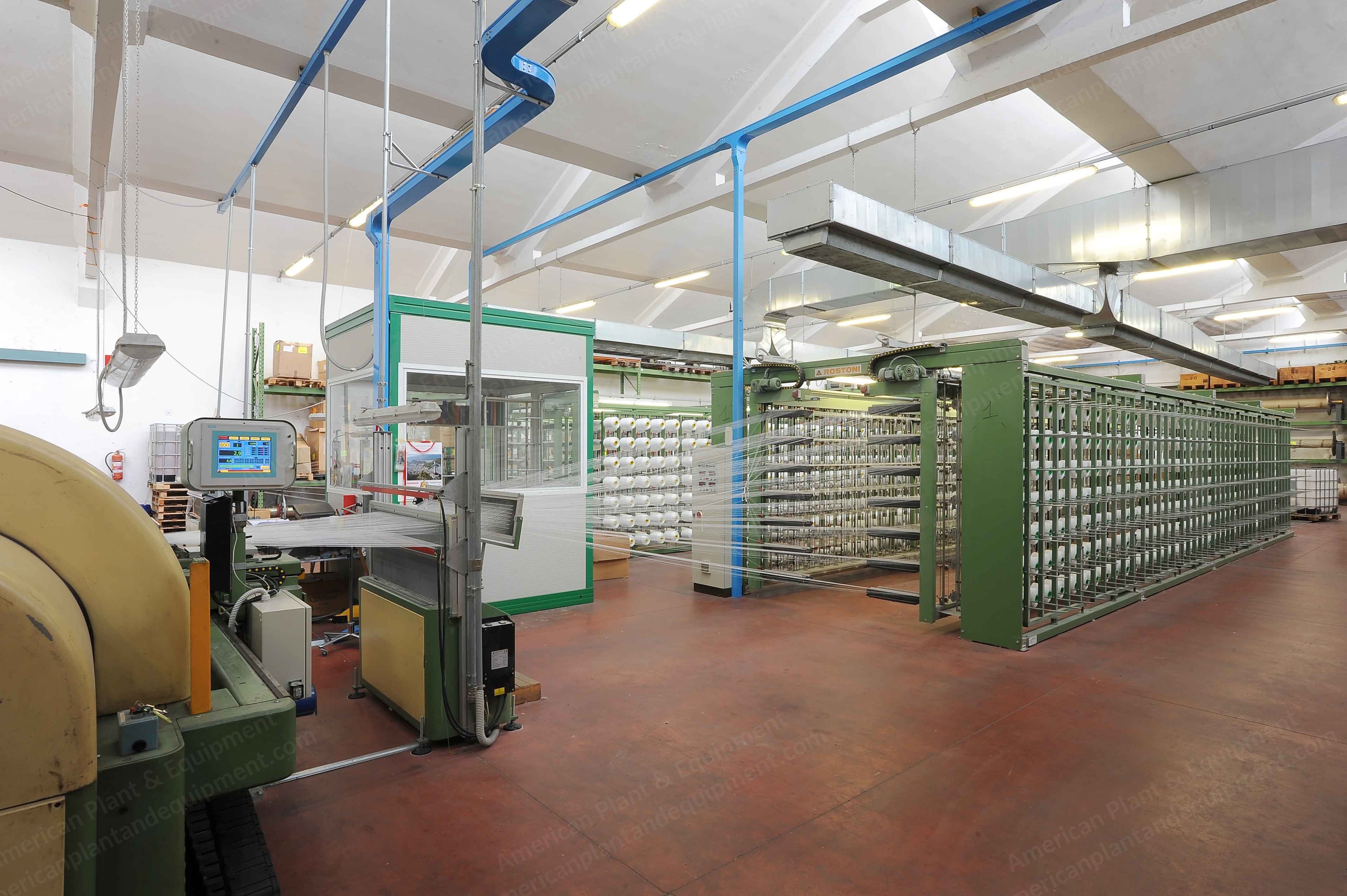

Rostoni, OSH /3800, Sectional Warper, 3800mm Working Width, 800 m/min, with Two Creels

Rostoni, OSH /3800, Sectional Warper, 3800mm Working Width, 800 m/min, with Two Creels

Description

  1. Overview
    1. Warping speed: 800 m/min
    2. Re-beaming speed: 300 m/min
    3. 12,000 threads per beam maximum
    4. Length of cone section: 1200 mm
    5. Length of cylindrical section: 3900 mm
    6. Maximum re-beaming flange diameter: 1200 mm

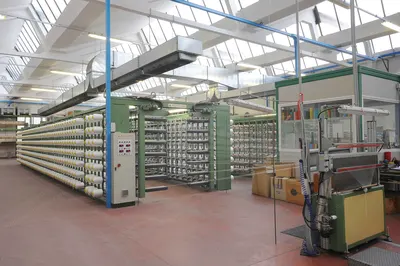

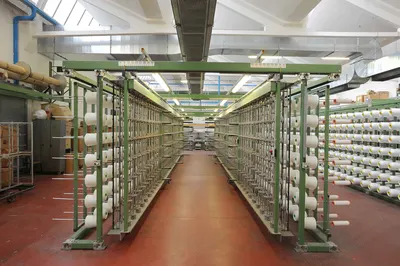

  2. First Creel
    1. Model: RQY/770
    2. 770 positions
    3. Vertical and horizontal gauge: 280 mm
    4. 7 levels
    5. Length of creel: 16,300 mm

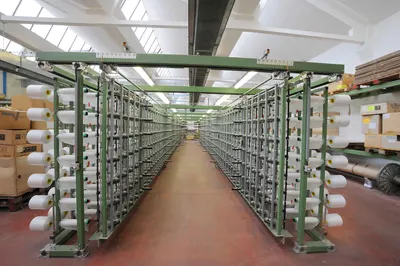

  3. Second Creel
    1. 560 positions
    2. Vertical and horizontal gauge: 280 mm
    3. 7 levels
    4. Length of creel: 11,760 mm
