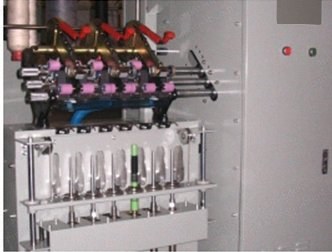

NovaStar, TL138, Lab Spinning Machine, 6 Spindles, 12000 RPM, 1500W (New)

NovaStar, TL138, Lab Spinning Machine, 6 Spindles, 12000 RPM, 1500W

Description

  1. Overview
    1. Fibre length range: 22 to 42 mm
    2. Range of draft: about 2 to 50
    3. Range of twist: about 200 to 2000
    4. Control: touchscreen + PLC
  2. Spindle and Drafting Specifications
    1. Spindle number: 6 (8 or 12 can be ordered)
    2. Speed of spindle: 12000 rpm
    3. Drafting roller: Φ25/25/25 mm
    4. Ring: Φ38-42 mm
  3. Bobbin and Dimensions
    1. Bobbin length: Φ205 mm
    2. External dimension: 120 x 800 x 1600 mm
  4. Electrical Specifications
    1. Power: 1500 W
    2. Voltage: 220 V / 380 V AC, 50/60 Hz
