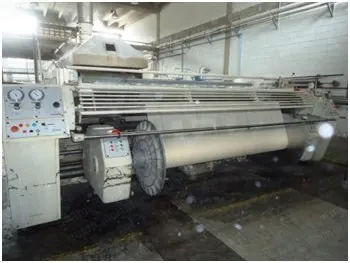

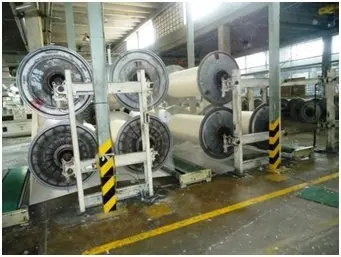

Description Overview Creel holds up to 12 beams from warping Maximum feed beam diameter: 1000 mm Maximum feed beam width: 1800 mm Sizing Box Sizing box with 2 squeezers and 2 submersible cylinders with a width of 2000 mm Drying Cylinders 12 drying cylinders with 800 mm diameter and 2000 mm wide Five of the drying cylinders are teflon coated Speed and Control 150 m/min working speed (depends on the yarn type) Malho speed regulator and residual moisture control Preparation Kitchen Preparation kitchen that holds 650 liters and a reserve tank Exit and Warp Beam Maximum width of exit head end: 2850 mm Maximum diameter of warp beam flange: 1000 mm
