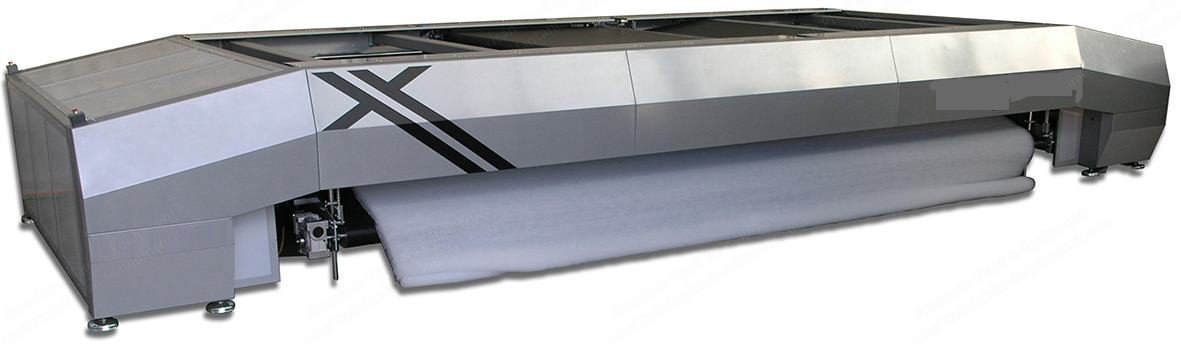

Description Overview Card web width: 2,500 mm Lapping width: 4,000 mm Maximum input speed: 90 m/min Maximum lapping speed: 120 m/min Cam digital profiling batt shaping: yes Automatic opening safety panels: yes Electric lift delivery aprons Double sided delivery Conveyor belts tracking system: proportional pneumatic 6 brushless motors Control panel with color touch screen Total power installed: 30 kW Construction Supporting structure made of two vertical side frames, made with quality steel pantographed, electro-welded, control-processed and painted covers An entry frame made up of the extension of the machine conveyor belt, suitable for stretch-free collection of one or two card webs A trapezoid-profiled output conveyor belt Components Mechanical minute components made with numeric control and chromium-plated work centers Carriage transmission through special dented non-extensible straps 2 brushless motors for carriages independent transmission 3 brushless motors for belts transmission (feeding and delivery) 1 brushless motor for profiling 2 pneumatic pistons for proportional control of belts true 4 pneumatic pistons for belts tensioning 2 epicyclical step-down gears 4 orthogonal step-down gears 1 power and automation management panel - mm 2100 x 1200 x 625, placed as per specifications below Total power installed: 30 kW Working air pressure: 8 atm 1 controlling pulpit with operator/machine interface LCD color touch screen, placed as per specifications below
