Surface Winder, 2800mm Working Width, 500-1500 GSM, Fife Edge Guiding

Surface Winder, 2800mm Working Width, 500-1500 GSM, Fife Edge Guiding

Description

  1. Overview
    1. Surface winder for technical textile fabrics
    2. 2800 mm wide
    3. No slitting or trimming needed
  2. Specifications
    1. Fabric weight: 500 to 1500 gsm
    2. Fabric thickness: 1/16 in to 1/4 in (1.6 mm to 3.2 mm)
    3. Core diameter: 3 in
    4. Core material: cardboard
    5. Core wall thickness: 1/4 in (3 mm)
    6. Wound roll diameter: 20 in (500 mm)
    7. Maximum roll weight: 600 kg
    8. Maximum roll diameter: 1000 mm
    9. Speed: 10 m/min
  3. Condition and Features
    1. Surface winding rolls are flame sprayed for heavy duty grip
    2. Air clutch ties the two rolls together for tight roll building

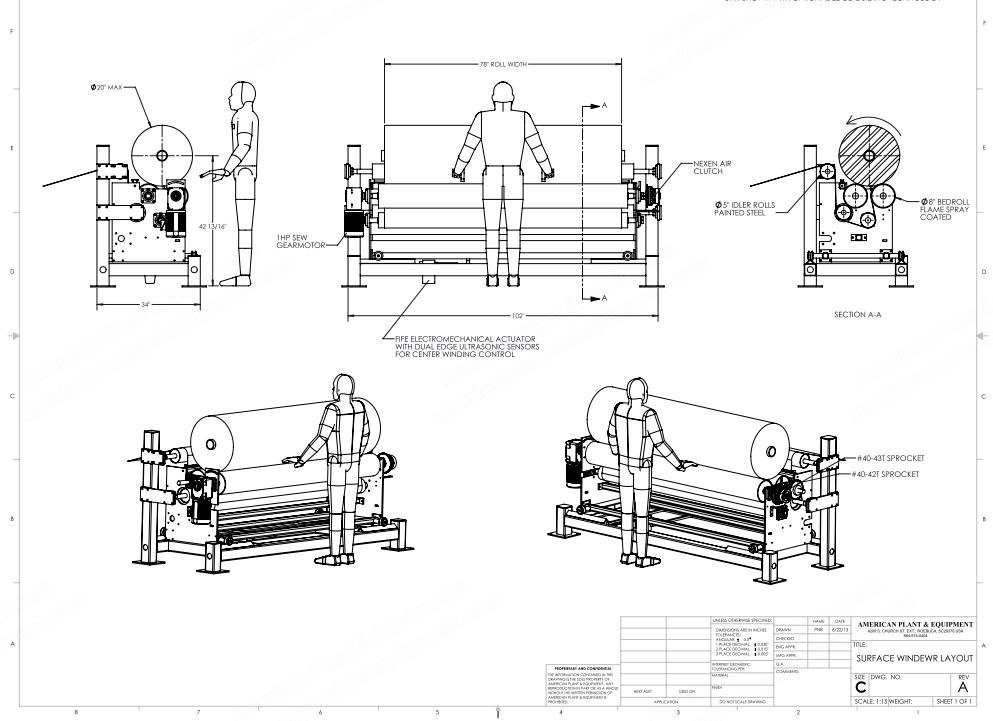

    3. Unit is shown with Fife edge guiding system and Fife controller
    4. Without the edge guiding system, the unit would have a smaller frame and be lower to the ground
  4. Included
    1. Drive and gear motor
