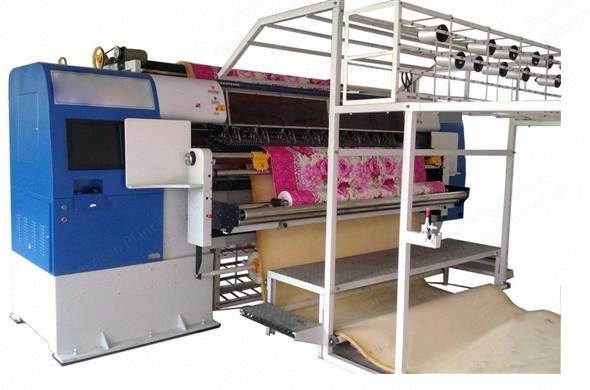

Description Overview Chain stitch quilting machine with needle bar spacing of 2 inches, 3 inches, and 3 inches Dimensions: 4800 x 1600 x 2000 mm Weight: 4500 kg Specifications Quilting width: 2485 mm Needle bar space: 50.8, 76.2, 76.2 mm (2 inches + 3 inches + 3 inches) Quilting thickness: ≤ 80 mm Maximum quilting thickness can reach 80 mm Rolling speed: 600 to 900 r/min Output: 10 to 180 m per hour Needle type: #21 to #24 X-axis movement: 410 mm Needle space: 25.4 mm Stitch length: 2 to 8 mm Rated voltage: 380 V / 50 Hz or 220 V / 60 Hz Power: 7 kW Features Needle bar and pressing block take the double rocker to avoid materials being soiled by lubrication X and Y motors are driven by servo system Auto-stop system in case the bottom or upper thread breaks (by infrared) 360-degree quilting and limitless multi-span and independent quilting High speed, low noise, very thick material with precise quilting
