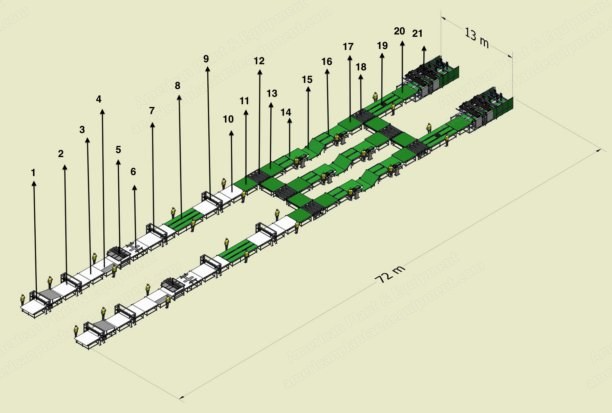

Mattress Production Line, 2200mm, 1000 Mattresses/8h Shift
Scroll to zoom
100%
Description
Overview
Maximum width: 2200 mm
Capacity: 1,000 mattresses per 8-hour shift
Floorspace dimensions: 72000 mm x 13000 mm
Description Of Operation
1st hotmelt bridge: The glue is transferred on the foam with 3 guns and 4 nozzles on each. Felt ramp: The felt is fed with the felt ramp, and fixed on the foam with presser cylinder.
2nd hotmelt bridge: The glue is transferred on the 4 edges with the help of 2 guns and 12 nozzles in total.
Reserve silicon conveyor
Width adjustable silicon conveyor, the side foam blocks and spring is put on the felt and foam pair, while the two operators are doing this the upper felt and foam pair is being prepared in the previous sections, when all the processes are done, these two operators put the upper unit onto the prepared one.
Automatic pressing of the mattress is performed in the reserve conveyor.
The 90 degree turning of the mattress is performed in the reserve conveyor.
3rd bridge, the glue is transferred onto the mattress in order to fix the quilt with 3 guns and 4 nozzles on each.
Flipping straight conveyor, upper layer is fixed by two operators and the mattress is flipped automatically at the end.
4th bridge, the glue is transferred onto the new upper side of the mattress in order to fix the other layer.
Silicon conveyor, the second layer is fixed onto the mattress.
