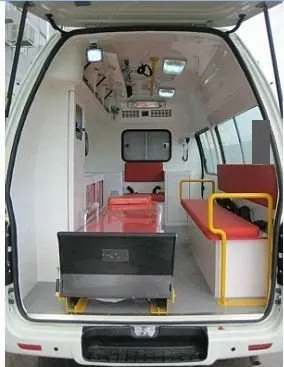

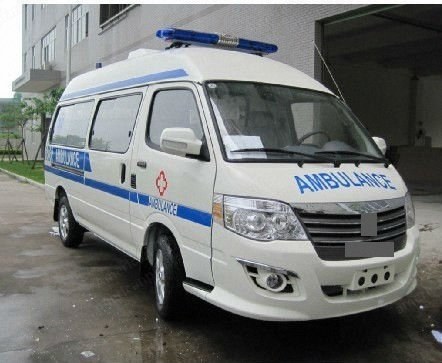

Description Overview Lengthened Ambulance, rhd 7th generation of front face; standard dashboard; separated a/c; rear heater High position brake light; intermittent wiper; left visor; cd player Side hand brake, glove box, wheel cover, se lion white, two seats Rear bumper with step; tailed door with internal opener; odometer and tachometer 60a battery Dimensions And Weight Size of Ambulance (lxwxh): 5280 x 1700 x 2420 mm Size of cabin (lxwxh): 3200 x 1540 x 1580 mm Wheelbase: 2890 mm Wheel track front/rear: 1450/1430 mm Turning diameter ≤ 12 m Curb weight: 1760 kg Total weight: 2860 kg Engine And Drivetrain Engine model: jm491q-me Gas fueled Multi electronic injection Displacement: 2237 ml Rated power: 76 kw / 4600 rpm Emission standards Max torque: 193 n.m / 2800 rpm Clutch: single plate and hydraulic operation Transmission: 5 speed, mechanical operation 195r vacuum tire Power assisted steering system Magnetic resonance abs Medical Cabin Interior Ultraviolet sterilizing lamp installed in front of medical cabin High power ventilating fan with shield against rain High quality 3 layers compound board for partition Smooth surface and easy cleaning external abs plastic board Side moveable window on partition Walk-talking system installed Smooth surface and easy cleaning external abs plastic board as inner roof and right side surface of medical cabin Hanged cabinet installed top right side in medical cabin Oxygen cabinet contained two 10-liter oxygen bottles installed rear right side in medical cabin Equipped cabinet installed front right side in medical cabin Store cabinet and operation platform installed middle right side in medical cabin One cabin with safety belts that can be used as four person seats or one person bed is installed left side in the medical cabin Folded chair for the doctor installed in front of cabinet (can be used as bed) at left side Medical cabinet (with washing base) can contain 10-20 liter water Imported exclusively medical use pvd foam board is used for cabin and cabinet No sharp corner with cabinet door; lock hook installed with drawer and cabinet door, high quality artificial pvc leather used for soft seat mat Electrical And Lighting 1000w inverter power system Two power supply system: ac: 220v, dc: 12v, each have two sockets Key igniting controller control all medical apparatus Central controlling system box for medical operation Long row led blue warning light (100w horn) Two group of led blue sparkling warning light with each side Two group of led white illuminating light for on-spot use Two group of led blue sparkling warning light on tail Two sets of two tube high lighting energy-saving light Up-down adjustable illuminating led light installed at rear door of medical cabin Two rectangle of led white illuminating light for on-spot use installed two sides of Ambulance Oxygen System Two equipped 10 liters oxygen bottles with pressure releasing and fixed equipment Oxygen pipeline hidden Central oxygen supply, two instant connector for aspirator or patient
