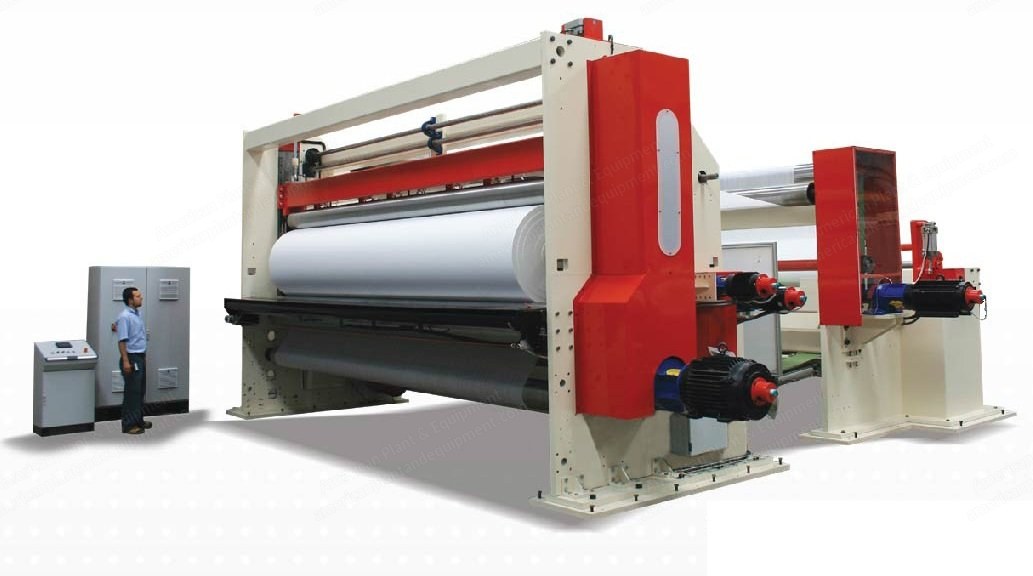

Description Overview For large rolls of non-woven fabrics (spunbond and spunlaced) Process Shaftless winding system with pneumatic chucks to hold the cores Surface winding system and pneumatic actuated rider roll system Plc system with an hmi screen to program the recipes of the process Unwinder with traction belts to keep a precise and controlled feeding of the material Pneumatic security chucks on the unwinder Lateral adjustment with power screws Load cells for tension control with a closed loop Tapper tension and tapper nip systems Optional Semiautomatic cycle restart system Unloading system for finished rolls (to leave them on the floor) Technical Specifications Unwinder maximum diameter: 1600 mm Standard maximum width: 4500 mm Minimum cutting width: 60 mm Maximum diameter of finished rolls: 1200 mm Speed: 800 meters per minute Includes 32 cutters tidland class i, shear type
