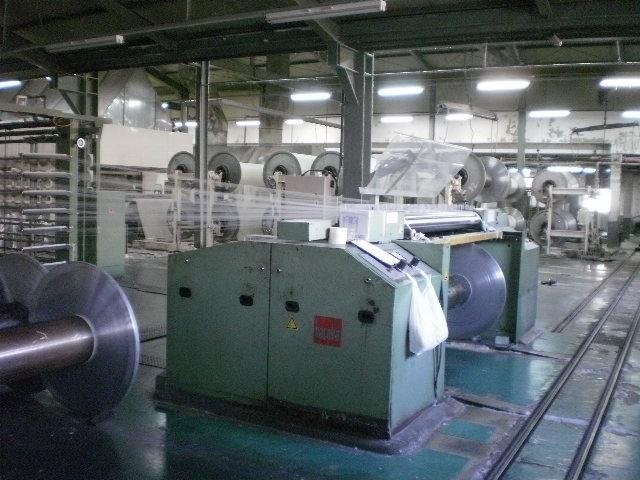

Sucker Muller, WN, 1994, 3300mm Sizing Machine with Hacoba NZB-Super 1000 Direct Warper

Sucker Muller, WN, 1994, 3300mm Sizing Machine with Hacoba NZB-Super 1000 Direct Warper

Description

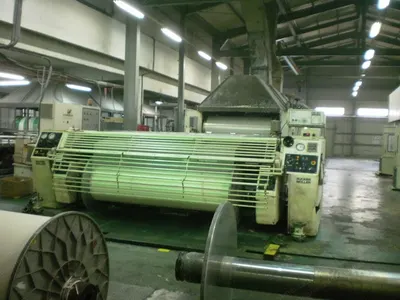

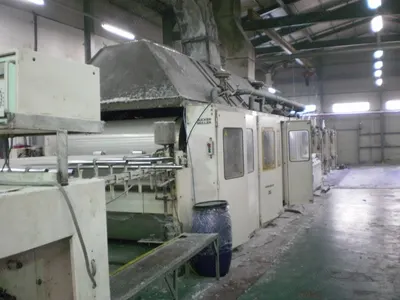

  1. Sucker Muller Sizing Machine
    1. Year: 1994
    2. Head type: WN
    3. Width: 130 in (3,300 mm)

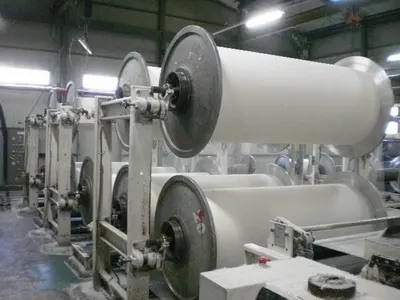

    4. Beam stand creel: 12, type ANP-12
    5. Warping width: 1,800 mm
    6. Maximum beam flange diameter: 1,000 mm

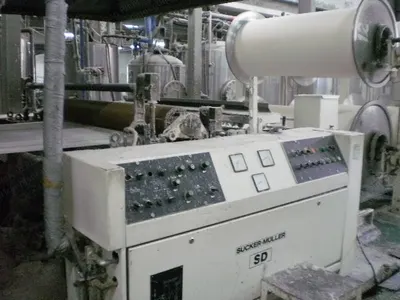

    7. Single size box, type SD-40
    8. Number of squeezing rollers: 2 x 2
    9. Number of immersion rollers: 2
    10. Maximum squeezing press of main squeezing machine: 40 kN
    11. Automatic squeeze pressure control from 0 to 15 kN
    12. Maximum machine speed: 125 m/min
    13. Let-off regulator AB300
    14. Let-off measuring tension range: 0 to 2,700 N
    15. Roller width: 2,000 mm

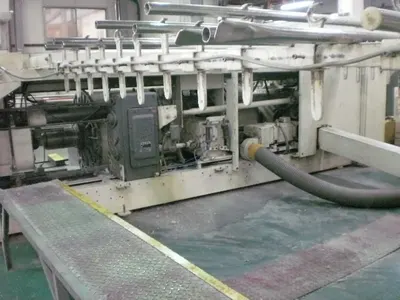

    16. Dry cylinders: 12 pieces, type ZG8, TZ

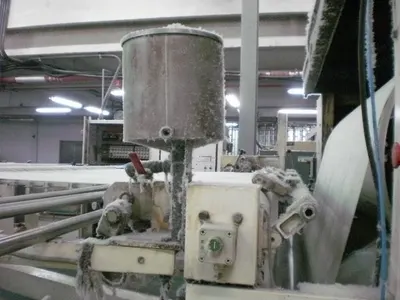

    17. With after waxing device and moisture control device

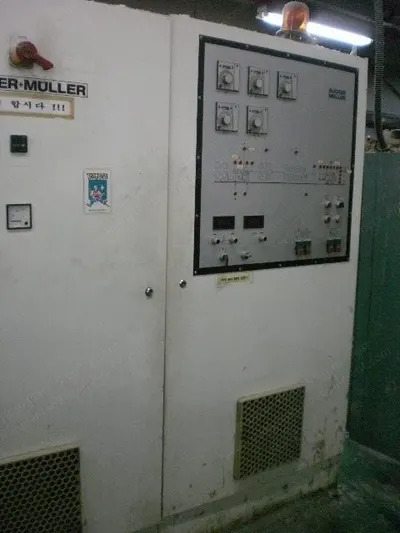

    18. With control panel

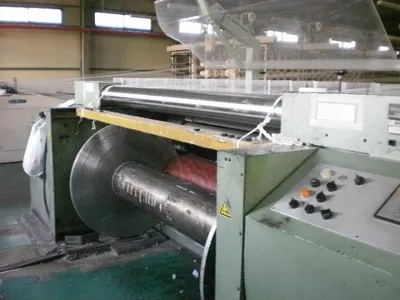

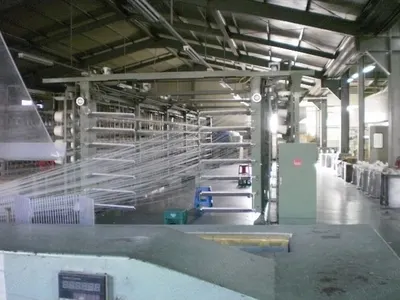

  2. Hacoba Direct Warping Machine
    1. Year: 1994

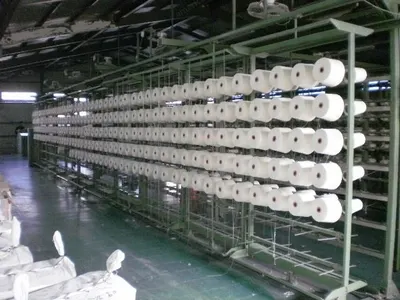

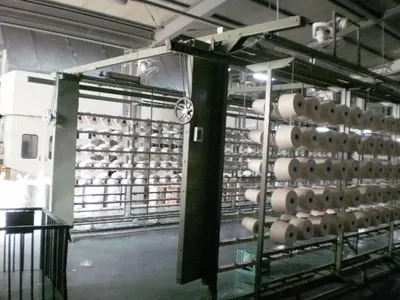

    2. Head type: NZB-Super 1000; creel type: G5-N-T
    3. Number of ends: 700, arranged in 5 creel sections
    4. Vertical pitch: 270 mm
    5. Horizontal pitch: 270 mm
    6. Number of decks: 7
    7. Beam diameter: 1,000 mm
    8. Warping width: 1,800 mm
    9. Direct beam drive by DC motor, 22 kW
    10. Speed: 0 to 1,500 m/min
    11. Expanding comb: 700 dents
    12. Lateral traverse motion
    13. Automatic indication of yarn brakes
    14. With yarn cutting device and independent blowing device
    15. With spare warper beams: 18 pieces

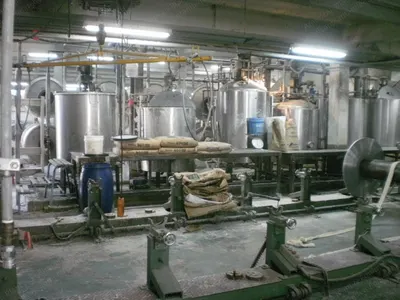

    16. With mixing and cooking tanks: 1 each (1,200 and 1,000 liter)
