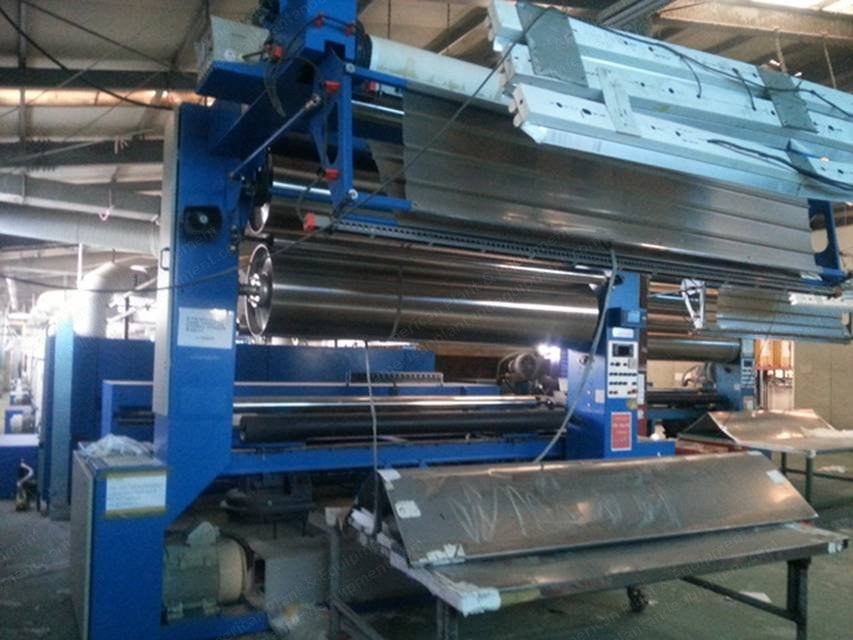

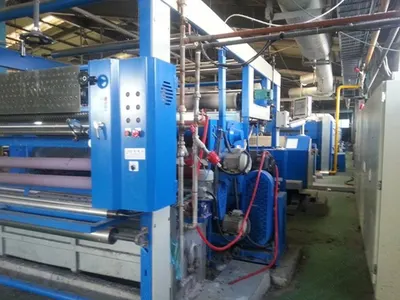

Eh-Wha, Tenter, 2011, 9 Chambers, 2400mm Working Width, Gas Heated, Pin Chain

Eh-Wha, Tenter, 2011, 9 Chambers, 2400mm Working Width, Gas Heated, Pin Chain

Description

  1. Overview
    1. 9 chambers
    2. Year 2011
    3. Working width: 2400 mm
    4. Roller width: 2600 mm
    5. Horizontal chain pin type
    6. Cloth speed: max 120 m/min
    7. Gas heating system
    8. Electric power: 60 Hz x 380 V
    9. Inverter driving system
  2. Entrance
    1. Guide ring
    2. Tension bar
    3. Textar guide

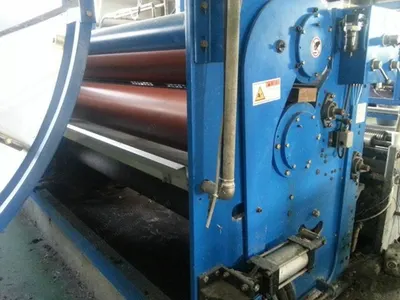

    4. 2 bowl padding mangle

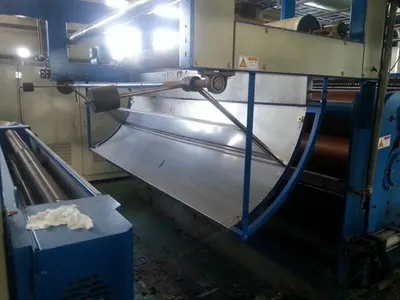

    5. “J”-box
  3. Auto Overfeed
    1. Electronic control type overfeed device

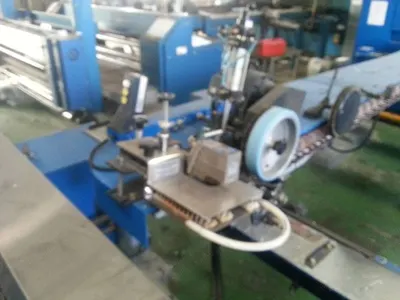

    2. Rail guider with automatic position control detector
    3. Selvedge uncurler
    4. Over feed tensioner
    5. Selvedge keeper
    6. Rail safety device
    7. Screw expansion roll
    8. Touch screen T.V monitor system
  4. Dry & Heat Setting Chamber
    1. 9 x hot air circulation fan & motor
    2. Air floating system hot air injection nozzle
    3. Heating exchanger
    4. Exhaust duct with fan motor
    5. 9 x gas burner (Maxson, USA)
  5. Cooler
    1. Air cooling fan & nozzle
  6. Main Drive
    1. Driving arrangement

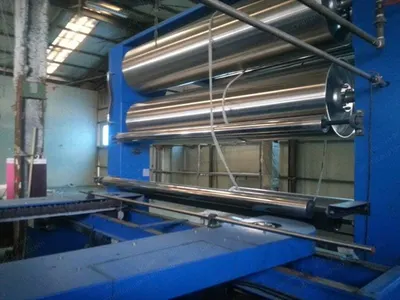

    2. 2 x bowl cooling cylinder
    3. Plaiting down device

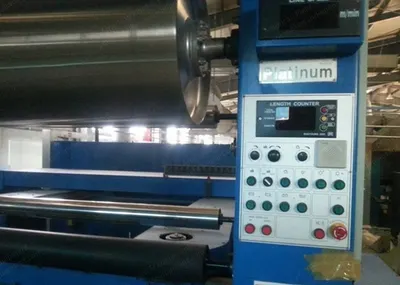

  7. Main Control Panel
    1. Main control panel
