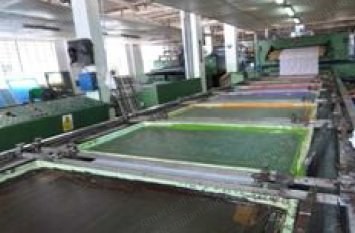

Description Overview 8-color flatbed printing machine, compact in its class Good hydraulic force of 40 kgs/cm² maximum Working width: 2400 mm Hydraulic System Independent brakes with pistons, each with its own hydraulic box Main pistons (belt and magnets) with 50 mm diameter for forced work with good performance Hydraulic pump: 200 amp / 55 kw / 1800 rpm Vacuum System Vacuum system across the width of the transport belt and two that serve as brakes at the moment of stamping Bush 250 vacuum pump Minimum repeat: 0.61 m, maximum repeat: 2.05 m Can print tablecloths with a repeat of 1.92 m up to 3 colors Vacuum pump: 35 amp / 5.5 kw / 1800 rpm Printing Belt Equipped with a Rollin printing belt, one of the best with 7 plies Belt Cleaning System Cleaning brush Cleaning blade Washing system with sprinklers and copper blades Belt wash pump: 25 amp / 4 kw / 3600 rpm Fabric Entry Fabric entry via rollers and an automatic compensator synchronized with a Gusa gearbox Fabric entry motor: 25 amp / 4 kw / 1800 rpm Drying Chamber Drying chamber with 3 passes for good color fixation Thermal oil heating system powered by gas Fans: 25 amp / 4.2 kw / 1800 rpm Extractors: 3.23 amp / 0.75 kw / 1650 rpm Fabric Output Fabric output can be in rolls, folded, or small rolls Fabric output motor: 20 amp / 2.4 kw / 1800 rpm Repeat Motor Repeat motor: 2.53 amp / 0.75 kw / 1640 rpm
