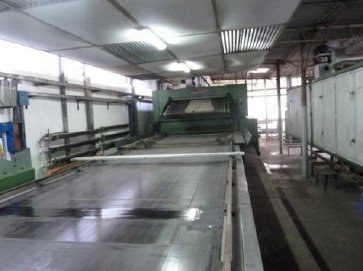

Zimmer, FBO-K, Flatbed Printer, 2200mm, 8 Colors

Zimmer, FBO-K, Flatbed Printer, 2200mm, 8 Colors

Description

  1. Overview
    1. Compact 8-color flatbed printing machine with good hydraulic force up to 40 kgs/cm2
    2. Working width: 2200 mm
  2. Fabric Entry
    1. Fabric entry via rollers and an automatic compensator synchronized with a GUSA variable speed drive box
    2. Includes an entry for knitted fabric
  3. Printing System
    1. Fabric adhesion using a blade with a compact base and worm screw adjustment system
    2. Main pistons of 50 mm diameter drive the belt and magnet system
    3. Automatic brakes for printing safety
    4. Combined vacuum system for lateral transport above the table and for braking across the belt width: one at the lower entry (inside the belt) and one at the delivery to the drying chamber
    5. Belt is 100% synthetic Masco Habasit
  4. Vacuum System
    1. BUSH 250 vacuum pump
    2. Minimum repeat: 0.65 m; maximum repeat: 2.05 m
    3. Can print tablecloths with a repeat of 1.92 m up to 4 colors
  5. Belt Cleaning
    1. Cleaning brush
    2. Cleaning blade (Robalon)
    3. Washing system with spray bars and Robalon blades
  6. Drying
    1. Fabric drying with 3 passes for good color fixation
    2. Thermal oil heating system powered by gas
  7. Fabric Output
    1. Fabric output can be in rolls, folded, or small rolls
  8. Motor Specifications
    1. Hydraulic pump motor: 10 amp / 30 kw / 1765 rpm
    2. Water pump motor: 13.6 amp / 4 hp / 3525 rpm
    3. Vacuum pump: 35 amp / 5.5 hp / 1800 rpm
    4. Fabric entry: 20 amp / 2.4 kw / 1800 rpm
    5. Fabric output: 25 amp / 4 kw / 1800 rpm
    6. Fans: 23 amp / 6.5 kw / 1765 rpm
    7. Extractor: 9.7 amp / 2.2 kw / 1110 rpm
    8. Repeat motor: 2.53 amp / 0.75 kw / 1640 rpm
