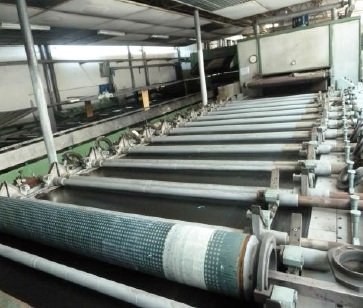

Zimmer, RSD, Rotary Printer, 2000mm, 12 Colors

Zimmer, RSD, Rotary Printer, 2000mm, 12 Colors

Description

  1. Overview
    1. Semi-automatic rotary system machine with 12 colors
    2. Fabric entry system via geared motor with automatic compensator (card disabled)
    3. Fabric gluing system by means of a blade regulated by pneumatic air
    4. Main drive via motor with tacho generator, speed transmission through a compact reducer, minimum speed 0.02 to 25 m/min
    5. 3-pass fabric dryer with 1 fabric output in folder and roll
    6. Equipped with pneumatic color feed pumps
    7. Belt washing by brushes and silicone blades with pneumatic pressure
    8. Sensors for automatic color feeding
    9. Thermal oil heating by gas
  2. Specifications
    1. Working width: 2000 mm
    2. Main motor: 20 hp, direct current, controlled by electronic card
    3. Fan motor: 98 amp / 40 hp / 1740 rpm
    4. Extractor motor: 9.2 amp / 2.4 kW / 1280 rpm
    5. Oven entry and fabric exit motor: 3 amp / 1.60 kW, controlled by frequency converter
    6. Water pump: 8.6 amp / 3 hp / 3450 rpm
  3. Condition
    1. Automatic compensator card is disabled
  4. Included
    1. Color feed pumps with pneumatic air
    2. Brushes and silicone blades for belt washing
    3. Sensors for automatic color feeding
    1. Not specified
