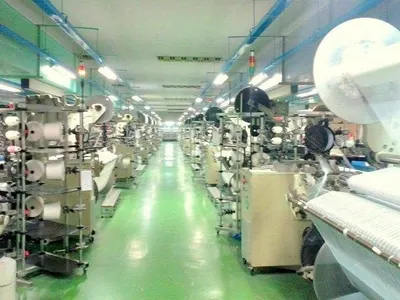

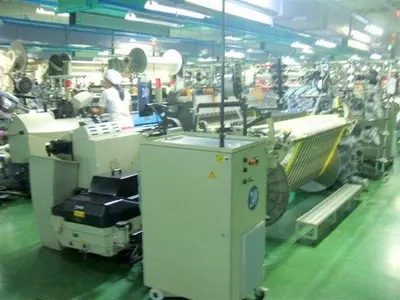

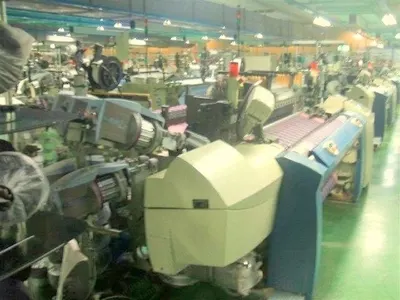

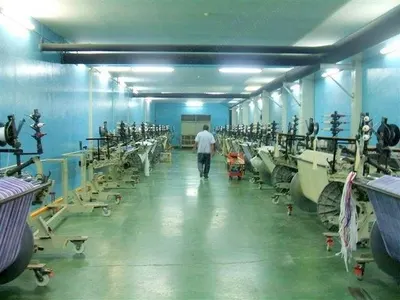

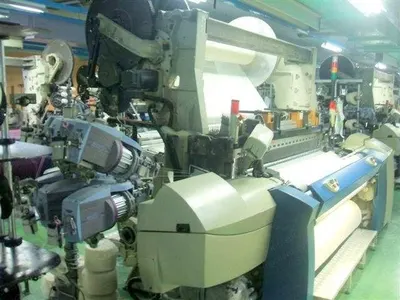

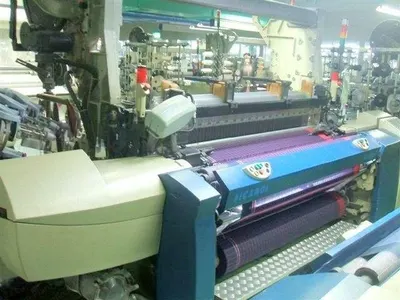

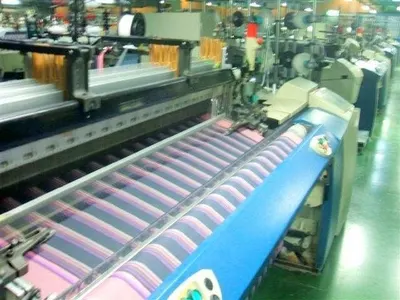

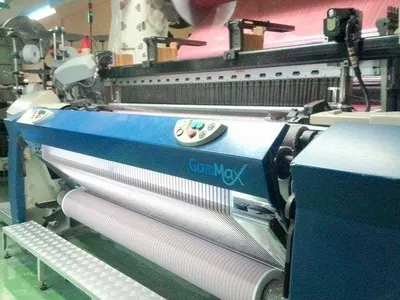

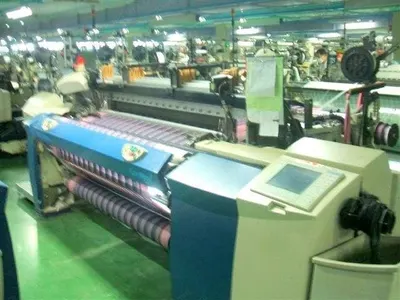

Picanol, GamMax-8-R-190cm, 2006, 1900mm Reed Width, 8 Colors, Staubli Electronic Dobby

Picanol, GamMax-8-R-190cm, 2006, 1900mm Reed Width, 8 Colors, Staubli Electronic Dobby

Description

  1. Machine Groups
    1. Type: Gammax-8-R-190cm with Staubli 2670 electronic dobby (20 harness drives), 2006 year – 48 machines
    2. Type: Gammax-8-R-190cm with Staubli 2861 electronic dobby (24 harness drives), 2006 year – 16 machines
    3. Type: Gammax-8-R-190cm (fancy beam) with Staubli 2670 electronic dobby (20 harness drives), 2006 year – 16 machines
    4. Type: Gammax-8-R-190cm (fancy beam) with Staubli 2861 electronic dobby (24 harness drives), 2006 year – 16 machines
  2. Important Notes

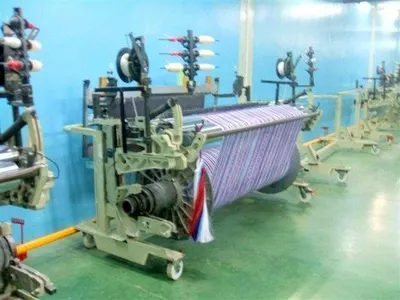

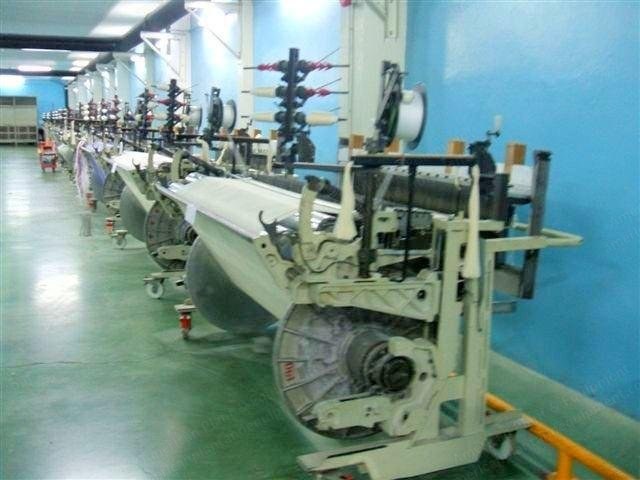

    1. 20 sets are "style change module T190" off-loom automation which is included with the weaving machines.
    2. The A and B type looms are foreseen for quick-style change (QSC) using these modules, and the change is conducted by the deployment of the Genkiner Hubtesx Warpy Type-1 (2 units) which is also included in the proposal.

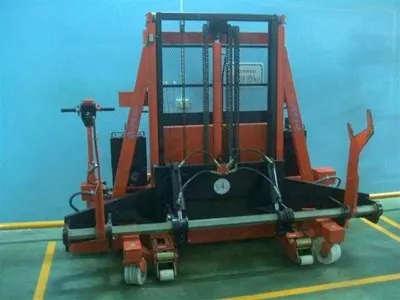

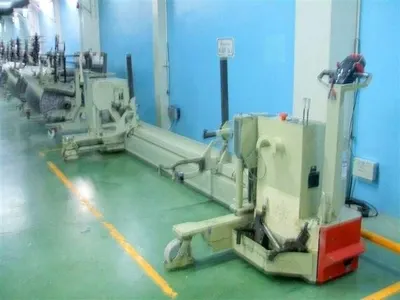

    3. An electric warp beam carrier is also shown on one or two of the photos, and this will be provided also.
  3. Technical Specifications
    1. Reed width: 190 cm
    2. Performance: Filling insertion rates up to 1500 m/min

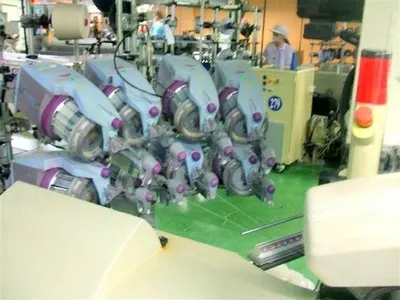

    3. Filling selection: 8 colors (filling presenter with insertion control)
    4. Filling detection/insertion: Piezo-electronic 8-channels, with prewinder switch-off system (PSO)
    5. Reed motion: Positive cam and cam followers in both frames
    6. Shedding motion: Electronic dobby for 20 and 24 frames (refer above)
    7. Let-off motion: Load-cell controlled warp-let off system (ELO)
    8. Warp beam: 805 mm flange diameter, 216 mm barrel diameter, with button holes
    9. Machine drive: Sumo main motor with direct machine drive, optispeed
    10. Voltage: 380 V / 50 Hz
    11. Backrest: Feeler roll / whip roll / warp tension measuring
    12. Cloth take-up: Electronically controlled take-up system (ETU), 580 mm diameter, rubber covered, double press-roller
    13. Selvedge motion: Independently electronically controlled (ELSY), 3 ends split LHS/RHS
    14. Harness frames: Schmeing, type Tex, 16 pcs with DRC2 for heald length 15 inches
    15. Warp stop motion: 6 bar electrical 25 mm pitch
    16. Pick finding: Automatic pickfinding and closed shed positioning

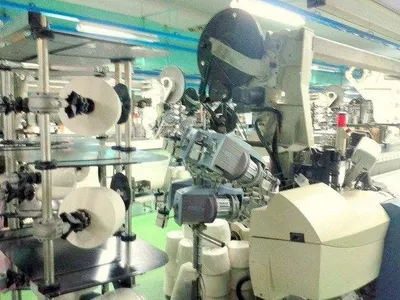

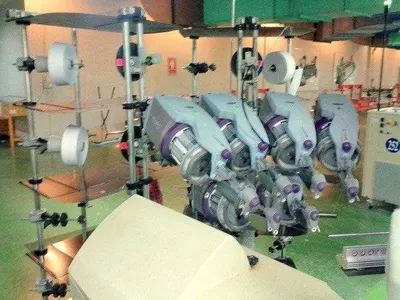

    17. Weft supply: 2 vertical bobbin rack for 6 bobbin each diameter 450 mm
    18. Machine controls: LCD screen, push buttons on front panel
    19. Lubrication: By forced circulation of filtered oil; grouped grease points for manual lubrication; sealed bearings for the beat-up shaft to prevent the lubrication grease drying out; microprocessor controlled, centralized grease lubrication for bearings of the beat-up shaft and harness motion mechanism
    20. Monitoring: Self-diagnosis; stop distribution reporting
    21. Safety: Light curtain; protection guard over take-up rollers
    22. Water-cooling: On all machines
  4. Included
    1. 1.5 pcs warp beams, 1.5 pcs cloth rollers, 16 heald frames, and 7000 heald wires and droppers
