Swa, Poker - 3/6c, 2002, 2m Useful Width, 6 Colors, Space Dyeing System

Swa, Poker - 3/6c, 2002, 2m Useful Width, 6 Colors, Space Dyeing System

Description

  1. Overview
    1. Space dyeing system for the polychromatic dyeing of yarn in hanks, fabric and garments.
    2. Model: Poker 3/6c.
    3. Year: 2002.
    4. Useful width: 2 meters.
    5. 6 colors: continuous colors fixing.
    6. Effects: space dyeing conventional / new Zaza effects.
  2. Space-Dyeing Group

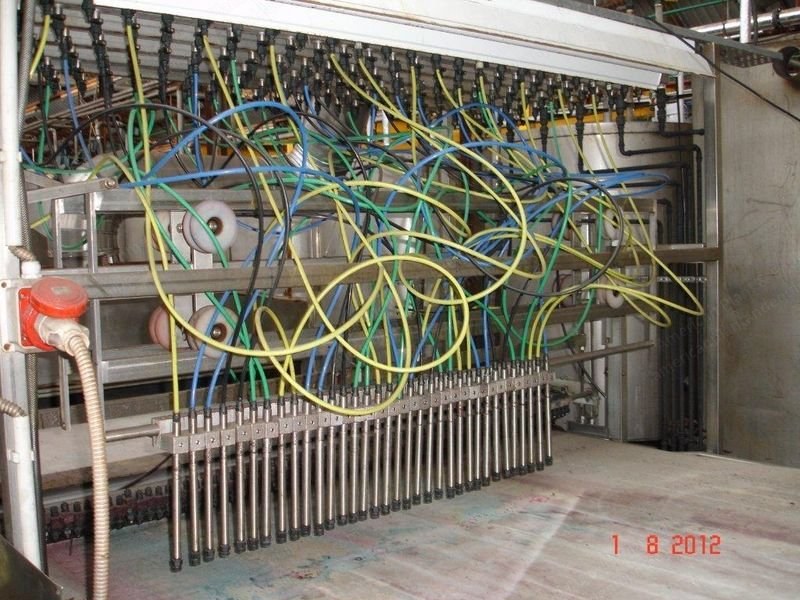

    1. Built in stainless steel with nozzles for space dyeing.
  3. Squeezing Group
    1. Situated after space dyeing group, with adjustable pressure.
  4. Polyester Conveyor Belt
    1. Thermostabilized at 250° C for conveying the material through the various working phases.
  5. Aspirator Fan Group
    1. For the belt cleaning.
  6. Belt Motor
    1. With speed regulation.

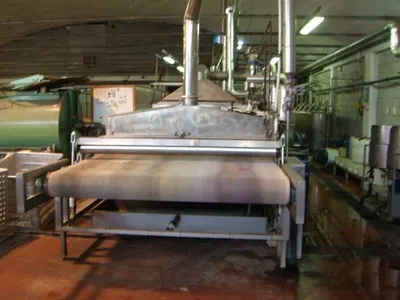

  7. Continuous Tunnel for Dyestuffs Fixing and Steaming
    1. Max theoretical treatment temperature: 100° C approx.
    2. Built in stainless steel.
    3. Automatic valves for steam feeding.
    4. Temperature indicator thermometer.
    5. High surface coils for the homogeneous steam distribution.
  8. Belt Washing Group
    1. With water and suction pipe.

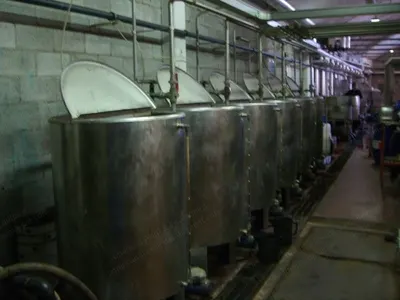

  9. Colors Kitchen Group at High Capacity
    1. Vats for dyeing bath circulation.
    2. Pumps for dyestuff, also used for the dyeing bath preparation, delivery and re-circulation.
    3. Manual valves on feeding tubes and on the dyestuffs delivery pipes.
    4. PVC pipes for the distribution to the dyeing nozzles with quick coupling and the possibility to obtain all the various polychromatic combinations.
  10. Main Electric Panel
    1. Pressure manometer for delivery pumps.
    2. Fixing tunnel temperature indicator.
    3. Switches for dye kitchen pumps.
  11. Supplementary Vat
    1. For softener application with circulation pump and pipes.
  12. Zig Zag Device Movement
    1. For nozzles application for "Zaza" effects.
