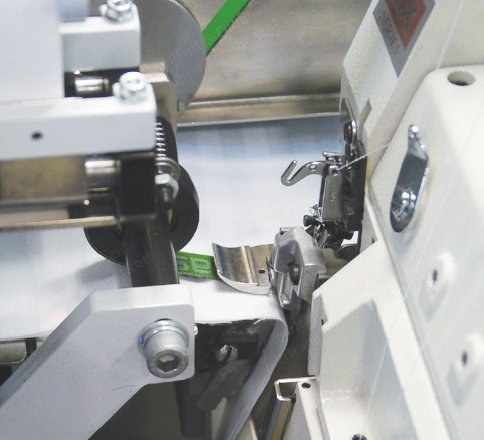

Description Overview Fabric feeds from one or two rolls via let-off automatically through tension control and edge guiding to the over lock sewing heads (left and right). The length sewn tick goes through an accumulator, is cross cut, and transferred to the cross sewing operation (left and right). A mechanism pushes out one side leaving a 15–30 cm opening, then stacks the bundles. It is possible to bypass the push-out mechanism and sew a three-side pillow tick. Features Two cradle roll supports. Pinch measuring device controlled by servo motor. Seam out mechanism for partial 4th side closing. Simple data programming with touch screen operator interface. Vacuum waste removal system. Technical Data Output capacity: 50 cm (w) x 66 cm (l) = 15 units/min. Production figures given with 1.8 mm stitch length. Linen width: min 40 cm / max 80 cm. Linen length: min 40 cm / max 150 cm. Labels (flat) width 20–80 mm / length 50 to 160 mm. Power supply: 208 v - 3 phase - 50/60 hz - 5.8 kw. Air consumption: 6 bar / 510 l/min. Net weight: approx. 4690 kg. Options Automatic label insertion. J-scrays with pneumatic edge alignment correctors. Doubling system with slitting device when using wider rolls. Tick turner. Remote access for troubleshooting capability.
