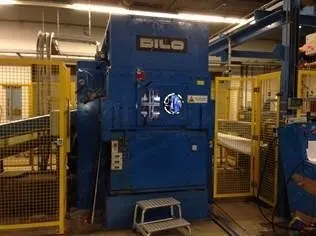

Dilo, OUGII 25, 1990, 2500mm Working Width, Double Needle Loom, 12000 Needles/m

Dilo, OUGII 25, 1990, 2500mm Working Width, Double Needle Loom, 12000 Needles/m

Description

  1. Overview
    1. High production machine, installation on vibration dampers without foundation
    2. Year 1990
    3. Working width: 2500 mm
    4. Maximum stroke frequency: 1200 min
    5. The practical stroke frequency in operation depends on fibre parameters and area weight
    6. Needle beam stroke: 60 mm
    7. All drives are DC
  2. Specifications
    1. Needling from top and bottom by 2 needle boards each from top and bottom, simultaneous or alternating
    2. Needle beam: aluminum profile with high bending and torsion resistance, positioning of needle boards, with fast clamping for quick exchange of needle boards
    3. Guiding of needle beam: floating rocker arm guiding system almost free of friction, minimum maintenance, fully protected from dust and oil leak proof
    4. Needle boards: ALPA = aluminum with polyamide top surface, with clamping grooves for precise positioning and fixing of the needles to avoid turning, pivoting and dropping out of the needles, drilled for needles 15, without needles
    5. Needle arrangement: 4 W8-200-23-12000
    6. Number of needle boards: 4 pcs in machine, 4 pcs in reserve (without needles)
    7. Stitching plates: drilled, electrical adjustment of top and bottom stitching plate and top girder while in operation and in stopping for setting "penetration depth top," "penetration depth bottom," and gap between stitching plates
    8. 12000 needles/mtr. per needle bar provided with CBF25 input and output rollers (slat conveyors with finger system)
    9. Crankshaft bearings with temperature measurement
  3. Included
    1. Provided with automatic grease system, 47 kW CD main drive
    2. Delivered with several spare parts
  4. Condition
    1. Machine can be inspected running
