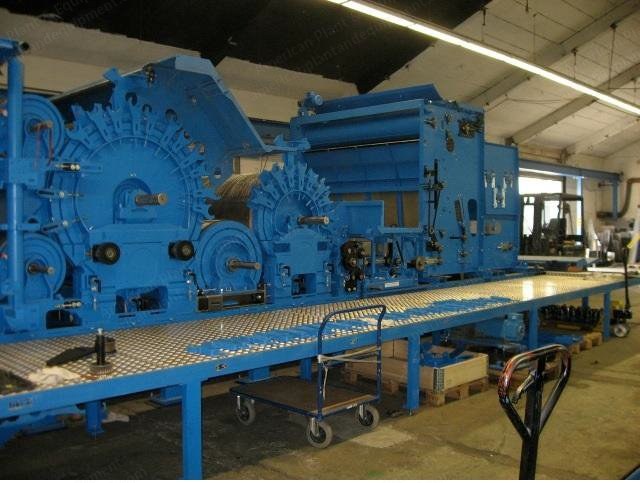

Spinnbau Card, 1994, 2500mm Working Width, Overhauled

Spinnbau Card, 1994, 2500mm Working Width, Overhauled

Description

  1. Overview
    1. Working width: 2500 mm
    2. Color: machine RAL 5015/9001 (can be changed), control cabinet RAL 7032 grey, switch board RAL 7032 grey
  2. Feeding Device
    1. One feed roller, diameter 159 mm
    2. One licker-in, diameter 412 mm
  3. Preopening, New
    1. One breast, diameter 412 mm
    2. One worker/stripper, diameter 213/105 mm
    3. One intermediate roller, diameter 412 mm
  4. Card
    1. One main cylinder, diameter 1050 mm
    2. Five workers and four strippers, diameter 213/105 mm
    3. One doffer top, new, diameter 412 mm
    4. One doffer bottom, new, diameter 412 mm
    5. Two condensing rollers top, new, diameter 292 mm
    6. Two condensing rollers bottom, new, diameter 292 mm
  5. Top Drawing Off Device, New
    1. One drawing off roller wired, diameter 159 mm
    2. One drawing off roller steel rubber, diameter 159 mm
    3. One cleaning roller with integrated electronic; when diameter of cleaning is getting bigger, card will stop
  6. Bottom Drawing Off Device, New
    1. One drawing off roller wired, diameter 159 mm
    2. One drawing off roller steel rubber, diameter 159 mm
    3. One cleaning roller with integrated electronic; when diameter of cleaning is getting bigger, card will stop
  7. Drawing Off Tables, New
    1. Top: transilon belt
    2. Bottom: transilon belt
  8. Covers
    1. The card has covers to clap up and down (secured when clapped up)
    2. The sides are fully covered and electronically locked
  9. Rigid Wire
    1. One complete set of rigid wire, mounted
    2. For fibers 1.7 dtex to 28 dtex
    3. Capacity up to 600
  10. Electrical Drives
    1. Feed roller: one AC gearbox motor, frequency controlled mechanically from breast
    2. Licker-in: mechanically from breast
    3. Breast: one AC gearbox motor, frequency controlled
    4. Workers breast: mechanically from breast
    5. Intermediate roller: mechanically from breast
    6. Main swift: one AC motor, frequency controlled
    7. Workers: one AC gearbox motor, frequency controlled
    8. Doffers: two AC gearbox motors, frequency controlled
    9. Condensing rollers: two AC gearbox motors, frequency controlled
    10. Drawing-off devices: two AC gearbox motors, frequency controlled
    11. Drawing-off tables: two AC gearbox motors, frequency controlled
  11. Switchboards and Controls
    1. Switchboards Rital series, complete wired
    2. Switchboards without cooling devices
    3. Control cabinet
    4. Operation with colored screen, fitted in control cabinet
    5. Operated by Siemens SPS S7-300
  12. Included
    1. One set of cable material between machinery and switchboard
    2. Without installation material for cable ducts and channels
  13. Erection and Starting Up
    1. Not included; should be made by us
  14. Foundation
    1. One foundation is 750 mm height
    2. With sidewalks around
    3. Two steps on each side
  15. Suction
    1. Suction at the edges of the doffer
