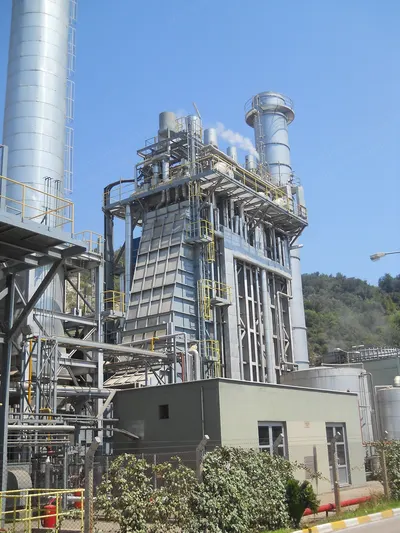

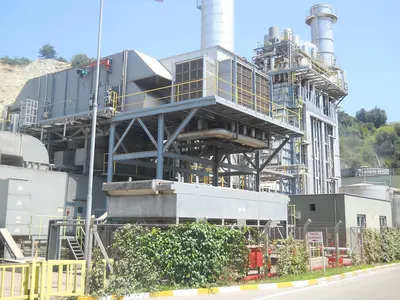

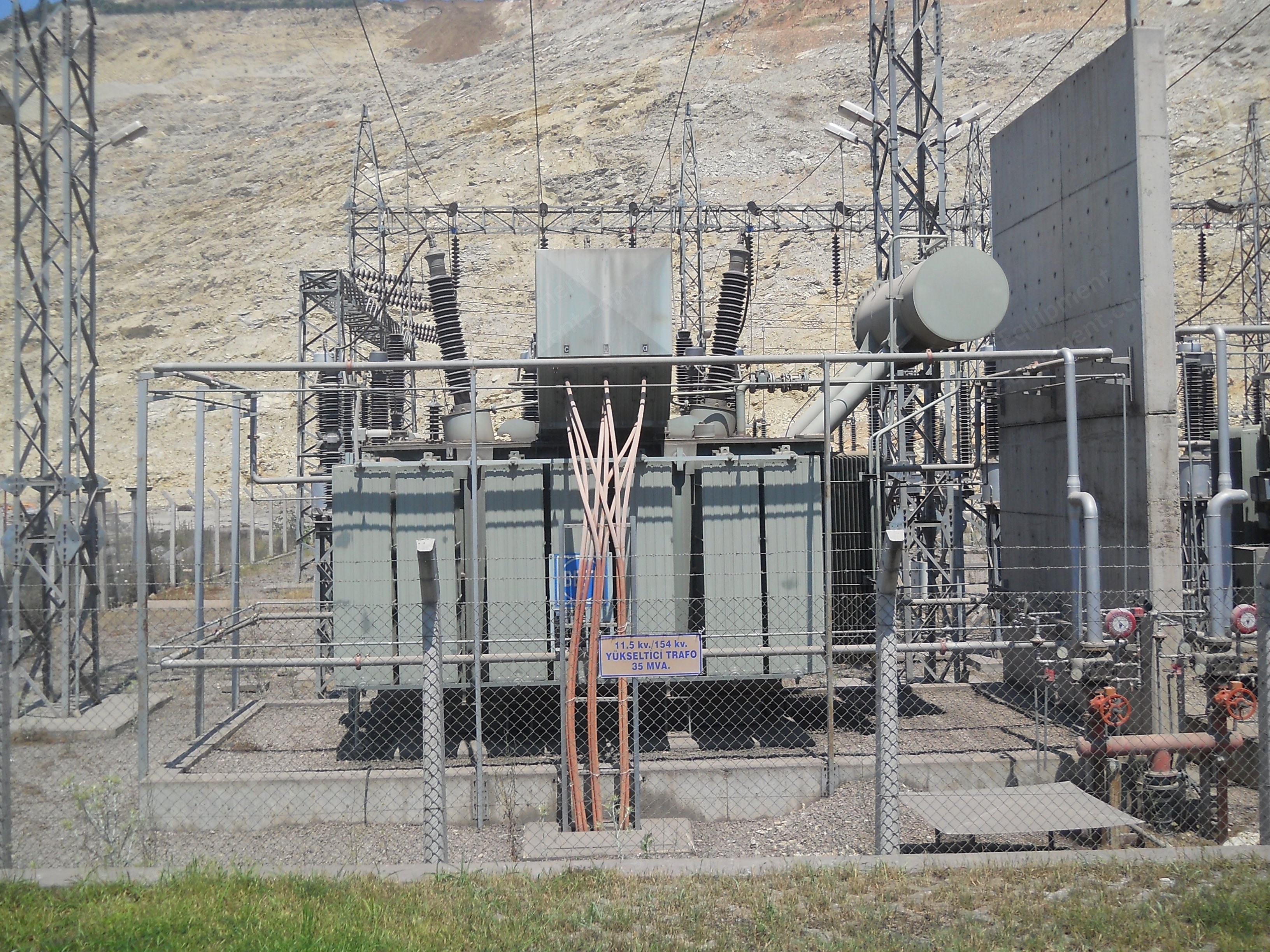

GE, LM6000PC, 2004, Combined Cycle Power Plant, 119 MW, 50 Hz

GE, LM6000PC, 2004, Combined Cycle Power Plant, 119 MW, 50 Hz

Description

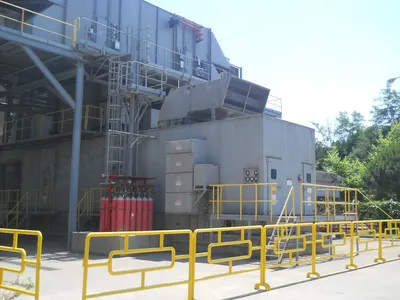

  1. Gas Turbine 1
    1. Manufacturer: GE
    2. Model: LM6000PC
    3. Year: 2004
    4. Capacity: 46,95 kWe (ISO)
    5. Compressor speed: 10200 rpm
    6. Power turbine speed: 3600 rpm
    7. Compressor blade stages: 14 stage hp, 5 stage lp
    8. High pressure turbine stages: 2 stage
    9. Power turbine stages: 5 stage
  2. Gas Turbine 1 Generator
    1. Manufacturer: Brush
    2. Model: BDAX7-290 ERJT
    3. Year: 2004
    4. Capacity: 63500 kVA, 50800 kWe
    5. Speed: 3000 rpm
    6. Power factor: cos φ 0,80
    7. Voltage: 11500 V
    8. Current: 3188 A
    9. Frequency: 50 Hz
    10. Ingress protection: IP 20
    11. Exciting voltage: 225 V DC
  3. Gas Turbine 2
    1. Manufacturer: GE
    2. Model: LM6000PC
    3. Year: 2007
    4. Capacity: 46,95 kWe (ISO)
    5. Compressor speed: 10200 rpm
    6. Power turbine speed: 3600 rpm
    7. Compressor blade stages: 14 stage hp, 5 stage lp
    8. High pressure turbine stages: 2 stage
    9. Power turbine stages: 5 stage
  4. Gas Turbine 2 Generator
    1. Manufacturer: Brush
    2. Model: BDAX7-290 ERJT
    3. Year: 2008
    4. Capacity: 63500 kVA, 50800 kWe
    5. Speed: 3000 rpm
    6. Power factor: cos φ 0,80
    7. Voltage: 11500 V
    8. Current: 3188 A
    9. Frequency: 50 Hz
    10. Ingress protection: IP 20
    11. Exciting voltage: 225 V DC
  5. Steam Turbine
    1. Manufacturer: GE-Thermodyn
    2. Model: 8-11MC 10
    3. Year: 2004
    4. Capacity: 26080 kW
    5. Hp inlet steam: 54 barg
    6. Lp inlet steam: 5,5 barg
    7. Hp inlet steam temperature: 424 °C
    8. Lp inlet steam temperature: 250 °C
    9. Exhaust pressure: 0,072 barg
    10. Nominal speed: 4200 rpm
    11. Over speed: 4620 rpm
    12. Blade stages: 7 stage hp, 3 stage lp
  6. Steam Turbine Generator
    1. Manufacturer: Frametomeanp-Jeumont
    2. Model: JISATL435
    3. Year: 2004
    4. Capacity: 32658 kVA
    5. Speed: 1500 rpm
    6. Power factor: cos φ 0,80
    7. Voltage: 11500 V
    8. Current: 641 A
    9. Frequency: 50 Hz
    10. Ingress protection: IP54
    11. Exciting voltage: 181 V DC
