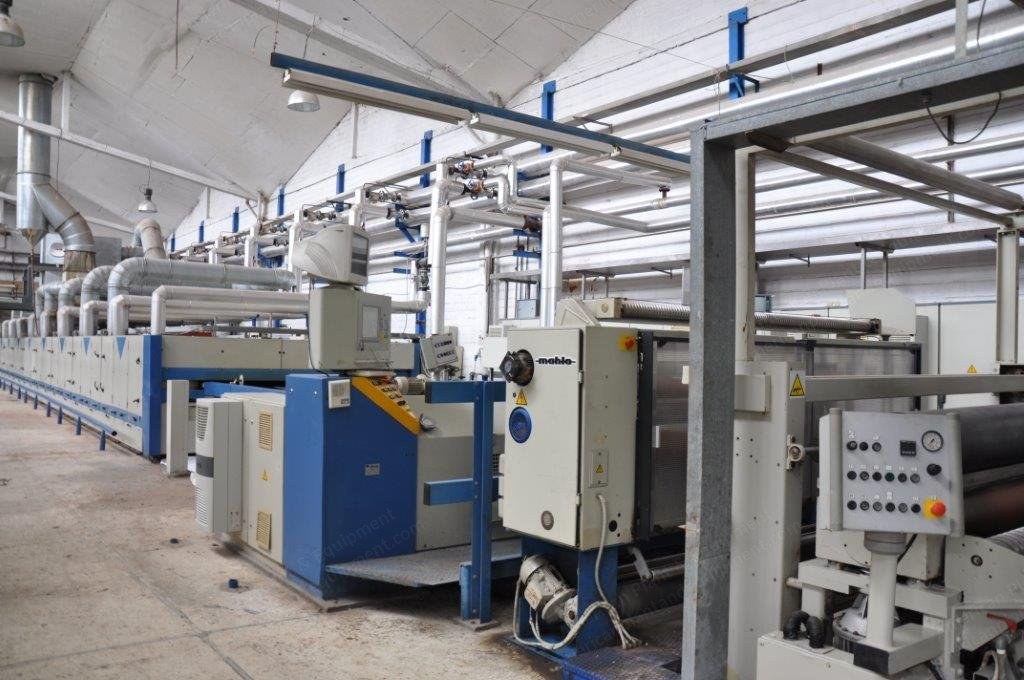

Krantz, K30, 2000, 8 Chambers, 240mm Working Width, with Oil Boiler

Krantz, K30, 2000, 8 Chambers, 240mm Working Width, with Oil Boiler

Description

  1. Overview
    1. Stenter frame complete with oil and steam boiler
    2. Type: K30
    3. Year: 2000

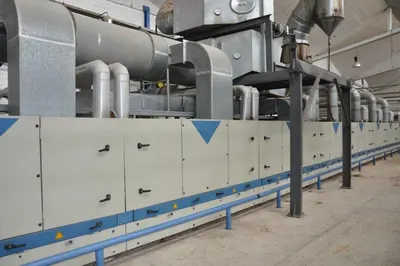

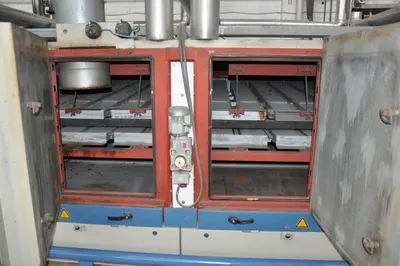

    4. 8 chambers, each of 3 meters long
    5. Maximum working width: 240 mm
    6. Oil heated (hot oil circulating)
  2. Infeed and Guiding

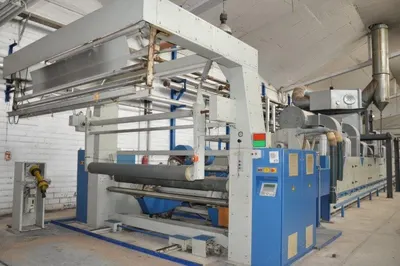

    1. Centering and opening unit Bianco type Dogal 04

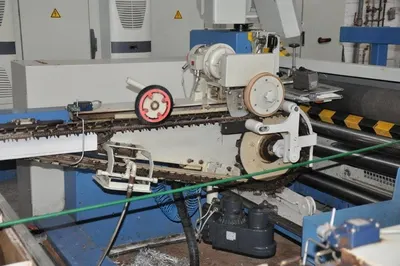

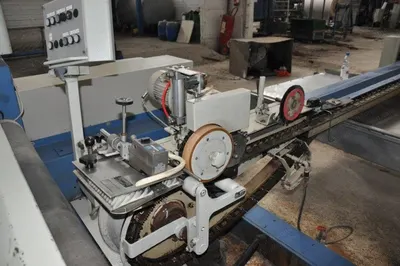

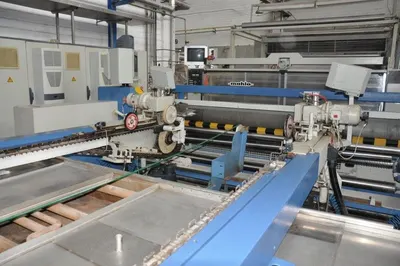

    2. E+L infeed unit, type KRS 51 for guiding the chain arms
    3. Consisting of Tandematic spreaders and E+L infrared sensors
  3. Padder and Vat
    1. 2 roller padder for woven and knitted fabrics
    2. Vat with level and temperature regulation, steam heated
  4. Weft Straightener and Monitoring

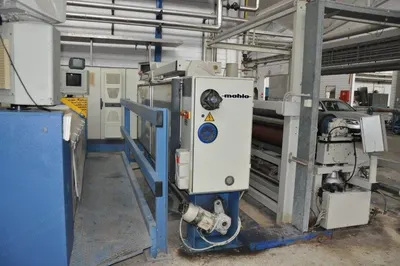

    1. Mahlo weft straightener RFMC-10/6 with 6 scanning heads
    2. Fabric temperature monitoring system Pleva TDS 95 on four chambers through feelers
  5. Chain and Exit

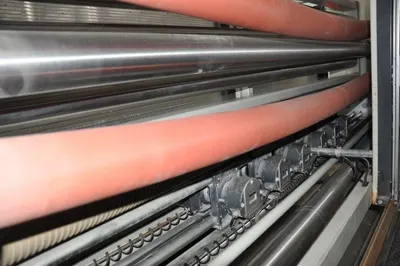

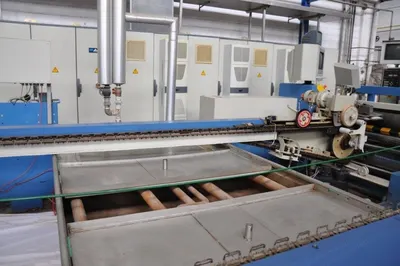

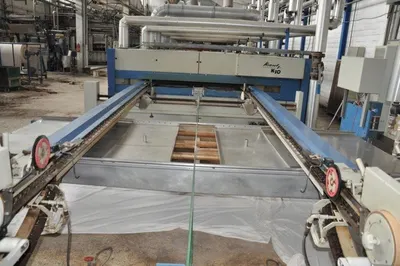

    1. Pin chain with locking device
    2. Cooling at the exit
    3. Selvedge cutting and suction device

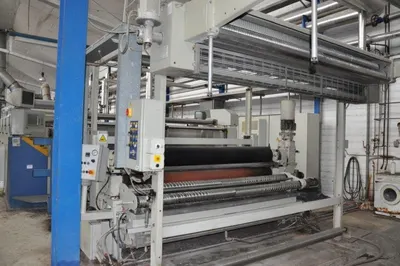

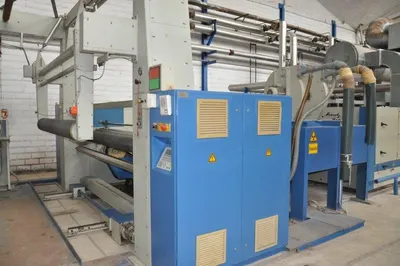

    4. Batch winder for rolls up to 700 mm diameter
    5. Plaiter of 1 meter maximum length
  6. Boilers

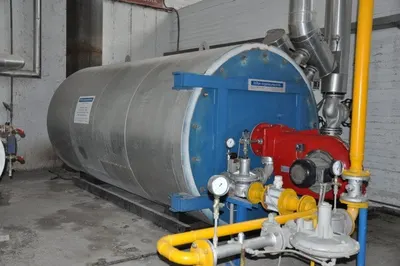

    1. Inplan oil boiler, gas heated, 2.5 mil cal, year 2000
    2. Economizer make RS Germany, year 2005

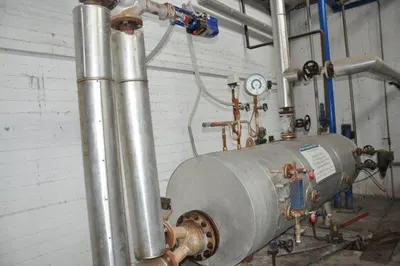

    3. Inplan steam boiler (small), year 2000 for covering the needs of the stenter (steaming at entrance)
