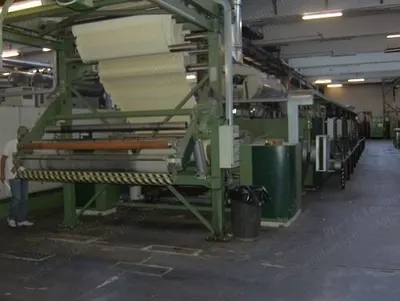

Babcock, Single Layer Stenter, 2001, 2200mm, Pin Chain, 6 Compartments

Babcock, Single Layer Stenter, 2001, 2200mm, Pin Chain, 6 Compartments

Description

  1. Overview
    1. Combination chain: 01 second hand Babcock single layer stenter
    2. Year 2001
    3. For finishing woven and knitted fabric
  2. Chain And Fabric Handling

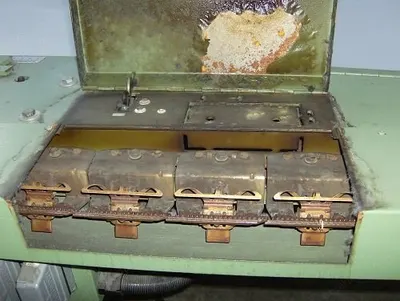

    1. Lubrication free pin horizontal chain with anti-depinning system (looking device), one looking device each link chain
    2. Roller width 2.400 mm for a maximum fabric width 2200 mm

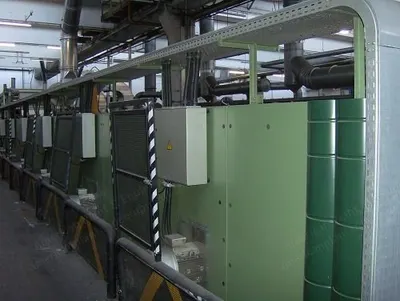

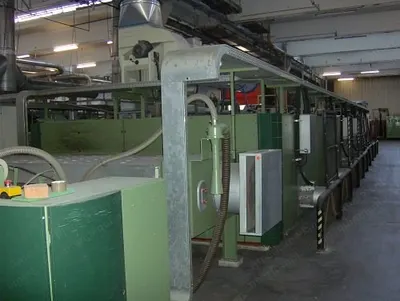

    3. Tentering machine 06 compartments (length each compartment 3 meter) with lubrication free pin horizontal chain
    4. Length entrance field: 4500 mm
    5. 01 traction roller between the entrance frame in bottom position for a tension free introduction of textile
    6. 01 spreader system between the entrance frame
    7. 01 traction roller between the entrance frame placed in top position

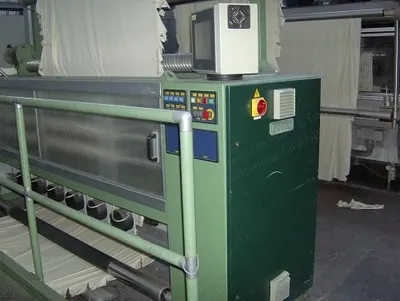

    8. Tentering machine infeed unit Elfeed KRS 50 D - C - S made by Erhart & Leimer (E & L)
    9. Pin on and overfeed device made by Babcock

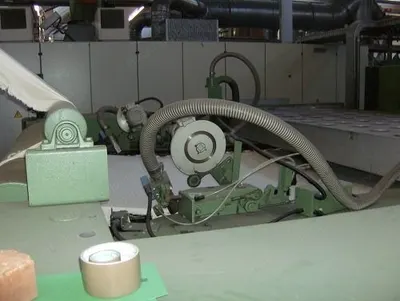

    10. Steam jet cleaning device to clean pin bars

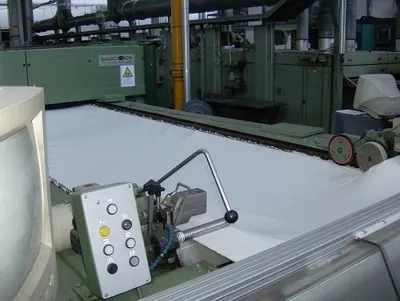

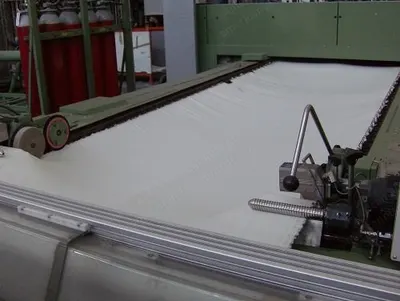

    11. 01 pair of selvedge glueing device
  3. Heating And Air System

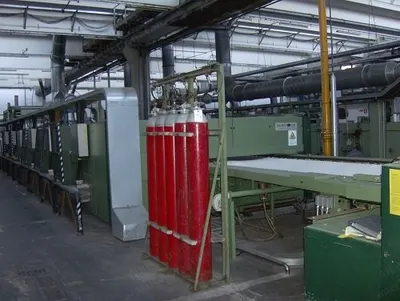

    1. Gas heating system for the dryer by means of 06 forced-air-gas burners
    2. Gas pressure regulating and safety unit for the gas main according to EN 746
    3. By pass flaps to redirect the circulating air during machine stoppage
    4. Motorized air volume regulating system with control combined for 3 compartments and also combined for the last 03 compartments

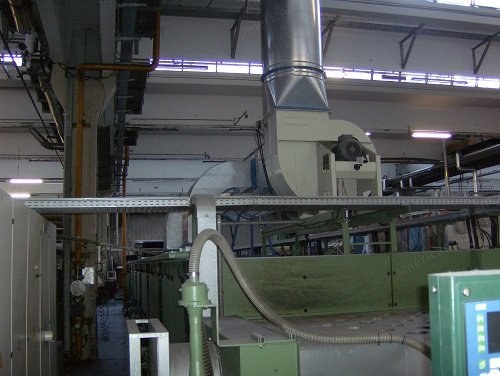

    5. 01 radial exhaust fan
  4. Exit And Winding

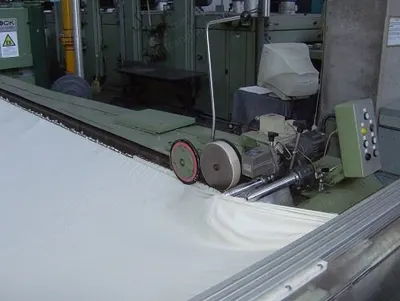

    1. 01 pair of selvedge cutting device made by Babcock
    2. 01 intensive cooling zone
    3. 01 descending batch winder at stenter exit
    4. 01 non stop plaiter at stenter exit
  5. Electronics And Software
    1. Main electronic hardware: PC box made by Siemens
    2. PLC made by Siemens

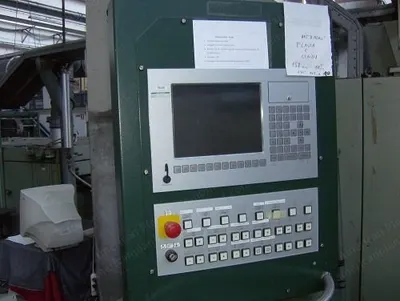

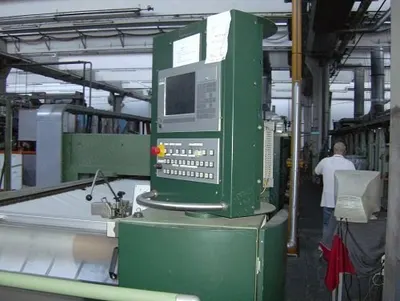

    3. 01 touch screen monitor made by Siemens
    4. Electronic software includes: main program type Dasy Tex and the following extension:
    5. Set up automation for preparing and maintaining recipes and process relevant setting
    6. Air exhaust moisture control
    7. Heat setting pilot type STA for the control of fabric temperature and the adjustment of thermo-treatment processes by means of modification of the running speed of the installation according to the indication of the setting time and setting temperature requested
    8. 02 fellers for recording the fabric temperature
  6. Included Additional Equipment
    1. 01 stainless steel entry assembly with spreading and centering unit made by Bianco, year of construction 2001

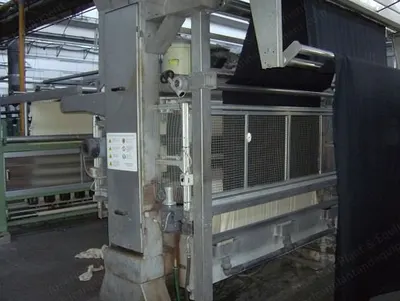

    2. 01 stainless steel impregnation 03 rollers padder made by Beta, year of construction 2001

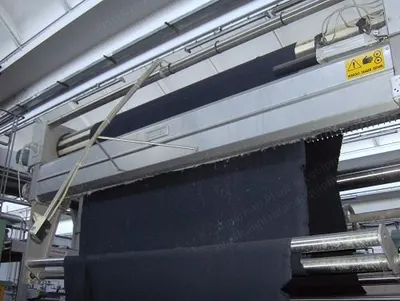

    3. 01 optical weft straightener with 06 scanning system made by Bianco, year of construction 2001
  7. Condition And
    1. Machine is in excellent condition
    2. Machine is visible in Italy and is still running
