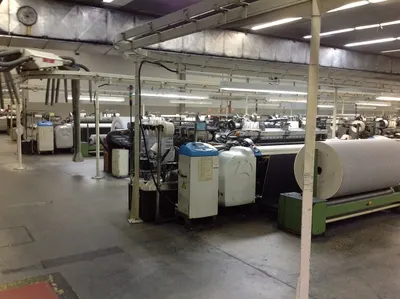

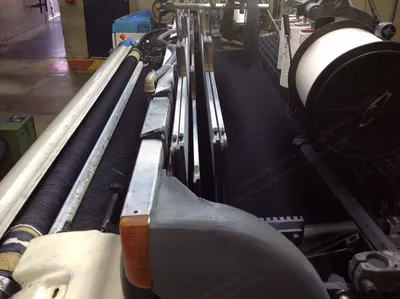

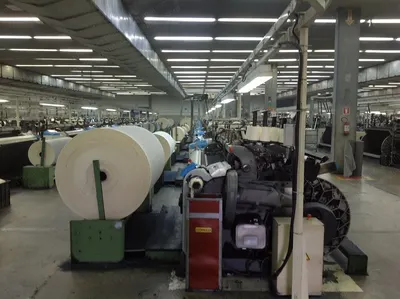

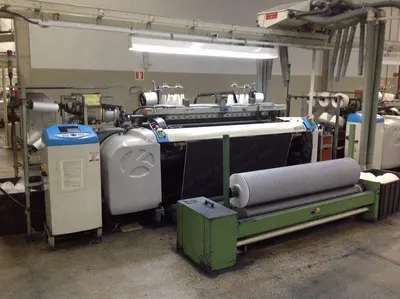

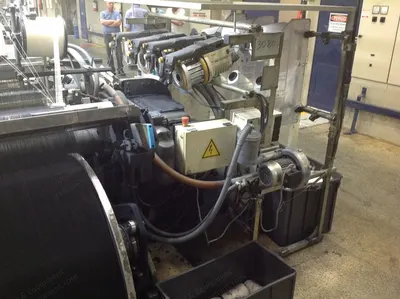

Vamatex, Leonardo, 2001, 1900mm Width, 8 Colors, Staubli 2670 Dobby

Vamatex, Leonardo, 2001, 1900mm Width, 8 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Vamatex Leonardo denim looms
    2. Year: 2001
    3. Width: 1900 mm
    4. Running at 580 on Staubli dobby machines
    5. 8 colors with 4 finger selectors (4 weft feeders)
  2. Dobby And Shedding
    1. Staubli 2670 dobby with 16 levers installed and 20 lever capacity
    2. 10 frames

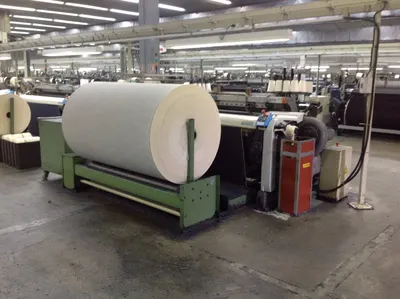

  3. Beam And Cloth Roll
    1. 1.5 beam for loom
    2. 1.5 cloth roll for loom

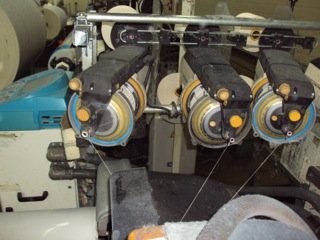

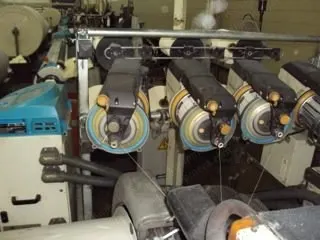

  4. Weft Feeders And Creel
    1. 4 filling feeders per loom - Roj Quarts with creel
  5. Take-Up And Drop Wires
    1. 1 off loom take-up electronic
    2. 6 electrode bars per loom with 2500 drop wires
    3. 2500 healds/droppers per loom
