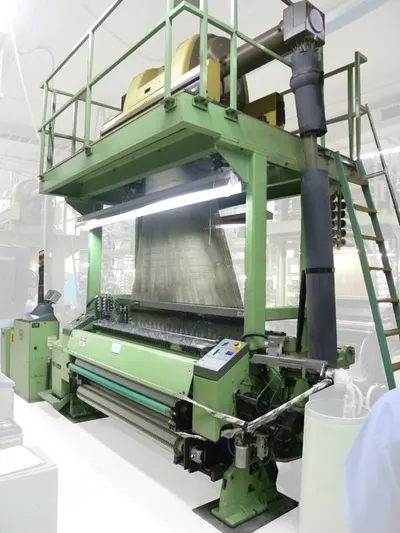

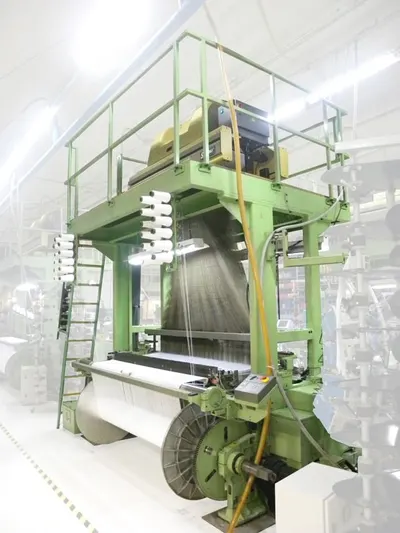

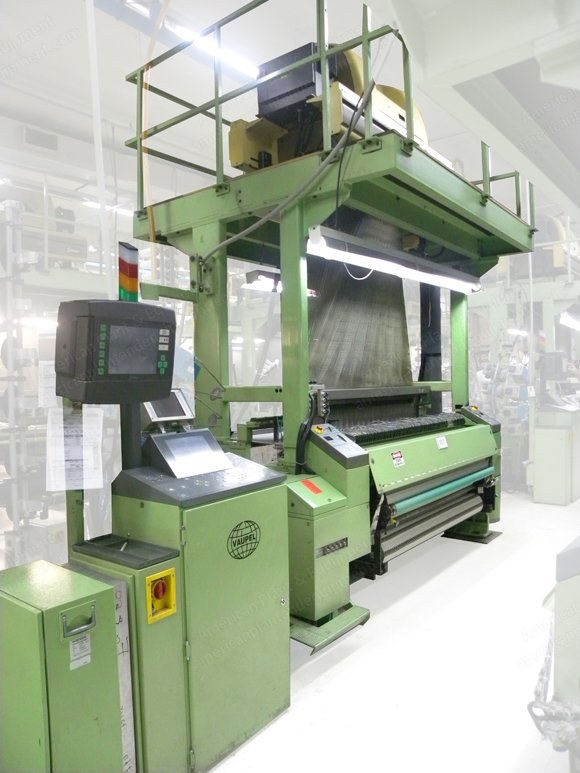

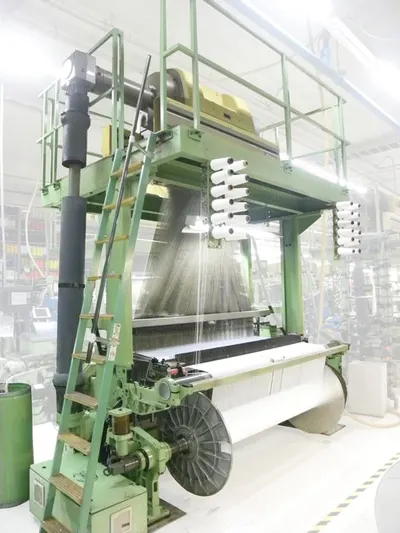

Dornier, EWM90-180E, 2003, Woven Label Loom, 1680mm Weaving Width, Staubli LX 1600 Jacquard, 8 Colors

Dornier, EWM90-180E, 2003, Woven Label Loom, 1680mm Weaving Width, Staubli LX 1600 Jacquard, 8 Colors Sold

Description

  1. Overview
    1. Dornier Vaupel woven label loom
    2. Model: EWM90-180E
    3. Year: 2003
    4. Weaving system: Air weaving machine
    5. Base loom: LWV / 8/J 8 colors
    6. Weaving width: 1680 mm
  2. Jacquard Specifications
    1. Jacquard Staubli LX 1600
    2. Jacquard Staubli CX880
  3. Harness Details
    1. Harness type: Taffeta 8 x 1152, @ 211 mm
    2. Taffeta 160 mts
    3. Repetitions: 8 of 200 mm
    4. Year of harness: 2003
  4. Warp Specifications
    1. Warp material: Polyester 70 to 100 den
    2. Warp density: 54.6 to 109.2 ends per cm
  5. Weft Specifications
    1. Weft material: Polyester 50 to 200 dtex
