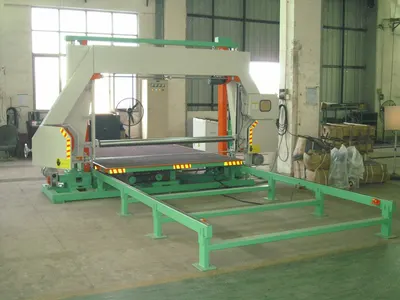

Description Overview Fully automated plc numerical controls allowing for multiple thickness cut in one bun, sequentially Touch screen controls, inverter controls, siemens plc, all motors 220 volt, 3 phase, 60 hz Vertical blade movement is by ball screws Specifications Foam block size: w2150 x l3000mm x 1524mm high Power: 7.94 kw Cutting speed: 0~25 m/min (table travel speed) Cut thickness: from 2 mm and up Blade length: 9580mm, blade width 30mm Blade thickness is 0.45mm, blade guide opening is fixed opening of 0.55mm Blade speed: 720 meters/minute Machine weight: 2000 kg Floor space requirement: l5800 x w3500 x h2400mm Included Components With a pressure roller for finer cuts, electrically activated Vacuum table (3.6 kw motor) Blade sharpener and dust collector (1.1 kw motor) Movable stabilizer bar for blade guide extra support Pneumatic blade guide tensioning
