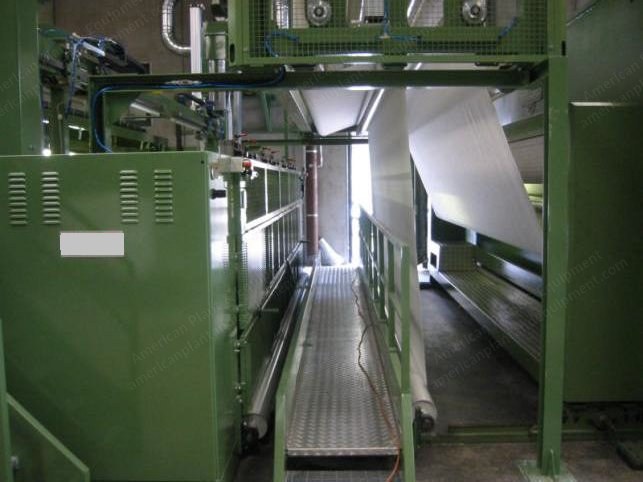

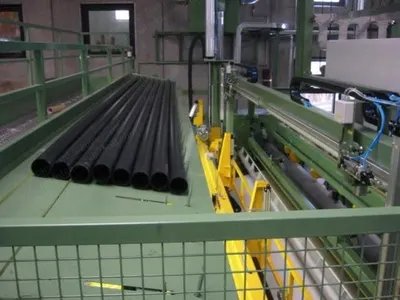

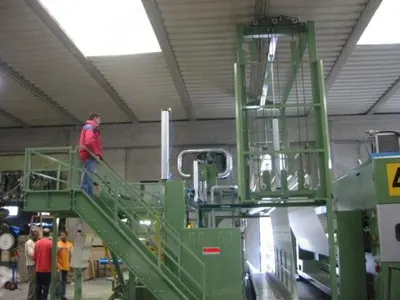

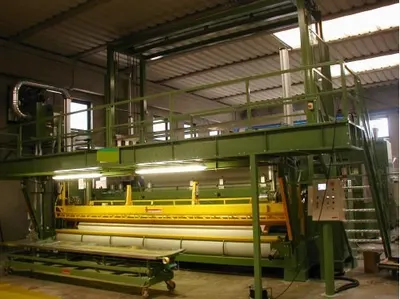

Ramina, Endline Winder, 2007, 6000mm Working Width, 80-1500 g/m² Basis Weight, For Geotextile

Ramina, Endline Winder, 2007, 6000mm Working Width, 80-1500 g/m² Basis Weight, For Geotextile

Description

  1. Overview
    1. Italian manufacturer
    2. Basic weight range: 80 – 1,500 g/m²
    3. Working width: 6000 mm
    4. Roll diameter: min 200 mm, max 1200 mm
    5. Carton core internal diameter: min 50 mm, max 150 mm
  2. Specifications
    1. Total power installed: 8.25 kW
    2. Tension: 400 V ± 10%, 50 Hz, 24 V DC
    3. Pressure: 6 bar
    4. Load on product during winding: 1 kg/cm
    5. Painting color: RAL 6011
    6. Base with cylinders
    7. Structure in painted steel carpentry

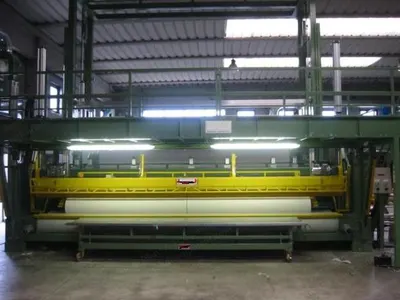

  3. Winding Section
    1. 2 support cylinders Ø 470 mm
    2. 1 motorization for the 2 cylinders, with servo-ventilated motor, adjusted by frequency converter
    3. 2 levers mounted on lateral shoulders, and automatic pneumatic roll expulsion system
    4. 1 pneumatic automatic threading system
  4. Pressing Cylinder
    1. 1 pressing cylinder with 2 servo-ventilated motors driven by frequency converter
    2. Sliding system on prismatic guides with recirculation spheres runners and tempered wheels
    3. Synchromism shaft with racks
    4. Lifting with pneumatic cylinders equipped with safety valves and quick discharge tools
    5. 1 pneumatic material locking system
    6. 1 pneumatic command panel of presser cylinder

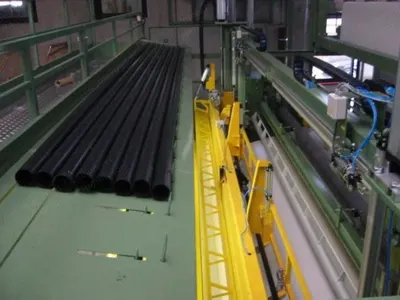

  5. Spindle Shaft
    1. All sliding components are on tempered wheels with ground tempered guides
    2. Manual transversal shifting of spindles, pneumatic locking system with on-board valve
    3. Automatic pneumatic lifting and lowering of spindles
    4. Spindles position register, all low, and realized with manual mechanical strike to adjust according to the carton core type
    5. Pneumatic independent opening/closing of spindles, stroke 150 mm
    6. Min. spindles dimension, all closed: 2800 mm
    7. Spindle couples included: no. 1 inner Ø 50 mm, no. 1 inner Ø 80 mm, no. 1 inner Ø 120 mm
  6. Creel After Slitting Cutting
    1. 1 meter counting wheel in contact with the lower cylinder
  7. Cross Cut
    1. 1 motorized blade Ø 420, cross moving through motorized linear axis, with gear motor and pinion and rack transmission
    2. All the guides and the shifting wheels are tempered and ground
    3. Transversal cutting speed is 1 m/sec
  8. Slitting Unit
    1. Tempered cylinder hardness: 60/62 HRC, tempering depth 3/4 mm
    2. 7 pressure pneumatic knives, with tempered heart blade and ground Ø 200 mm
    3. Minimum working distance among the knives is 100 mm
    4. Useful stroke 100 mm
    5. Pneumatic cylinder Ø 80, thrust 6 bar (kg 300)
    6. Adjusting distance between knives and blocking is manual
    7. Command and pressure adjusting are independent for every knife and are mounted at cutter block edge
    8. Max material thickness is 100 mm
    9. The machine, according to the client’s request, can be provided of lateral edges suction mouths and of a winding edges system, completely automatic carton cores stock
    10. The capacity of the stocking is 10 files with min. diameter and 4 files with max. diameter
    11. Loading is manual

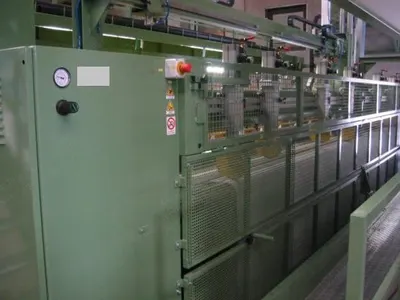

  9. Pneumatic Accumulator
    1. Structure in varnished steel
    2. 6 fixed steel cylinders Ø 160 mm positioned on the lower base
    3. Accumulation capacity: 22 mt
    4. Carriage command system with pneumatic cylinders and different pressures
    5. Material load is min. 0.01 kg/cm, max. load is 0.1 kg/cm
  10. Electric Pneumatic Command Panel and Suction System
    1. Electric pneumatic command panel on console table and machine board L.S
    2. Automatic suction trim system with condenser
    3. Main structure in painted carpentry with access door at the upper top protected by safety micro
    4. Drum with perforated sheet metal S thick 30/10, holes diam. 3, H 500, diam. 580 mm, supported with wheels mounted on bearings
    5. Motorization drum and belt: 2.2 kW, speed 1/60 m/min
    6. 1 suction system complete with canalization and fan 5.5 kW
    7. 1 silencer in exhaust to the suction fan
    8. 2 suction edges vents realized in AISI 304, mounted on special moving carriages anchored to the machine structure, complete with flexible tubes Ø 120 mm
    9. Manual independent moving vents

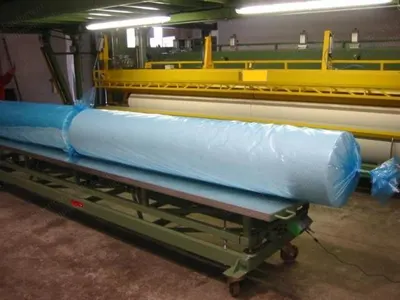

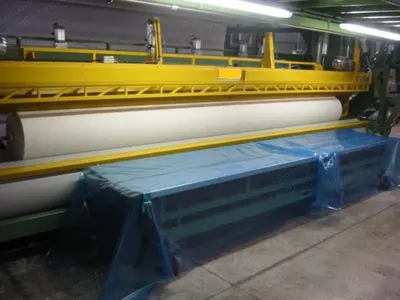

  11. Unloading Roll Cart
    1. 1 base in steel structural work suitable to receive the roll
    2. Carriage complete with rotating wheels heavy type
