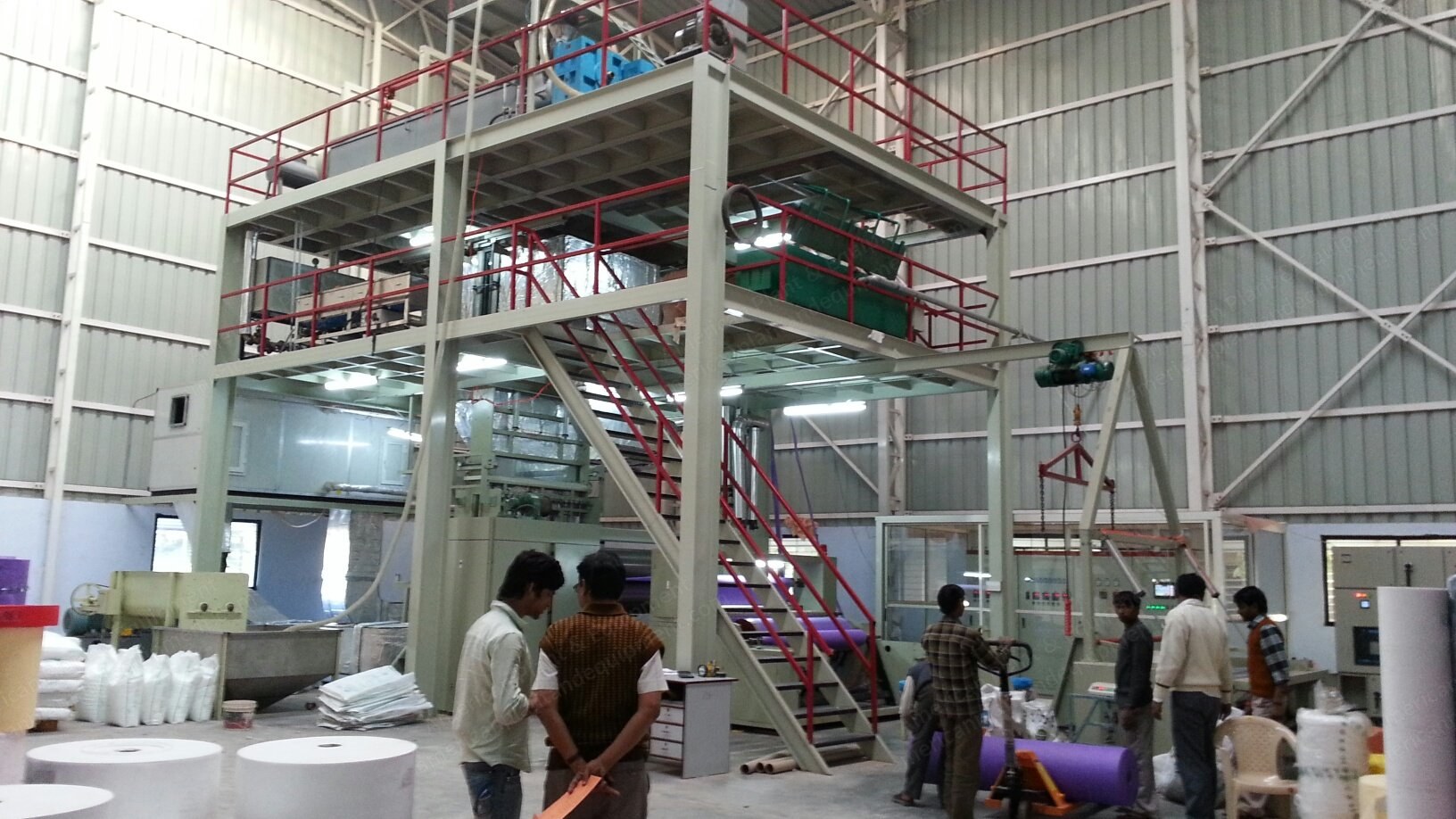

Shanghai Jingwei, JWM135/30, Non-Woven Plant, 1600mm, 2000 tpa

Shanghai Jingwei, JWM135/30, Non-Woven Plant, 1600mm, 2000 tpa

Description

  1. Overview
    1. Land area: 2145 sq meters
    2. Factory building: 11400 sq feet
    3. Office area with pantry and first floor: 500 sq feet
    4. Worker accommodation: 8 rooms built for accommodation with separate water supply
  2. Machine Description
    1. Production working width: 1600 mm
    2. 15-150 gsm
    3. Filament titer
    4. Annual production capacity: 2000 ton per annum at 60 gsm fabric
  3. Main Extruder
    1. Diameter: 135
    2. Speed: 60 rpm
    3. Model: JWM135/30
    4. Rated output: 380 kg/h
    5. Rated revolution: 60 rpm
    6. Heating capacity: 75 kW / 220 V
    7. Motor horsepower: 75 kW DC motor
  4. Recycle Extruder
    1. Diameter: 105
    2. Speed: 80 rpm
    3. Model: JWM105/15C
    4. Rated output: 80 rpm
    5. Rated revolution: 15 kW / 220 V
    6. Heating capacity: 15 kW AC motor
  5. Polymer Filter
    1. Model: PF2T-2.5B
    2. Filtering area: 2.5 m² x 2
    3. Filtering precision: 250
    4. Max pressure: 16 MPa
    5. Max temperature: 300 °C
  6. Metering Pump
    1. Manufacturer: Shanxi Barmarg
    2. Model: HRA1x200cc/s
    3. Motor horsepower: 5.5 kW sync motor
  7. Color Master Batch Add Device
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Motor horsepower: 750 W
    4. Arching capacity: 0.5% - 10%
    5. Quantity: 2 sets
  8. Spinning Box
    1. Manufacturer: Changzhou Chengguang
    2. Model: CG1600_40CR
  9. Monomer Suction Device
    1. Manufacturer: Self-made
    2. Model: 9-19
    3. Motor horsepower: 4 kW AC motor
  10. Particle Suction Device
    1. Manufacturer: Self-made
    2. Model: FSQ-800
    3. Capacity: 400 kg/h
    4. Motor horsepower: 3 kW AC motor
  11. High Volume Container
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made of: Cold-rolled plate
    4. Capacity: 0.2 t
  12. Blower
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made of: Aluminum plate
    4. Quantity: 2 pieces
  13. Perforated Plate
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made of: Galvanized plate
    4. Quantity: 8 pieces
  14. Air Dust
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made of: Galvanized plate
  15. Upper-Stretching Device
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made of: Toughened glass
  16. Lowering-Stretching Device
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Made from: SS
  17. Air Conditioner Blower
    1. Manufacturer: Zhe Jiang
    2. Model: S=ZKT1420_W35B
    3. Capacity: 2000 m³/h
    4. Cooling capacity: 115 kW
  18. Air Conditioner
    1. Model: WFWL110
    2. Nominal cooling capacity: 110 kW
  19. Air Supply Blower
    1. Manufacturer: Nan Tong
    2. Model: 9-26-9D
    3. Capacity: 17322 m³/h
    4. Pressure: 4481 Pa
    5. Horsepower: 30 kW AC motor
  20. Suction Blower
    1. Manufacturer: Nan Tong
    2. Model: 9-26-9D
    3. Capacity: 18512 m³/h
    4. Pressure: 4343 Pa
    5. Horsepower: 30 kW AC motor
  21. Oil Furnace
    1. Manufacturer: Yan Cheng
    2. Model: YJ-48
    3. Heating capacity: 48 kW / 380 V
    4. Oil pump horsepower: 4 kW AC motor
  22. Oil Furnace to Roller
    1. Manufacturer: Yan Cheng
    2. Model: YJ-48
    3. Heating capacity: 48 kW / 380 V
    4. Oil pump horsepower: 4 kW AC motor
    5. Quantity: 2
  23. Calciners
    1. Manufacturer: Yan Cheng
    2. Model: YJ_1600
    3. Heating capacity: 30 kW / 380 V
  24. Ultrasonic Cleaner
    1. Manufacturer: Zhang Jia Guang
    2. Model: CGT-1600
    3. Heating horsepower: 6 kW / 220 V
  25. Netting Device
    1. Manufacturer: Self-made
    2. Model: BL1600
    3. Line velocity: 120 m/min
    4. Motor horsepower: 7.5 kW sync motor
  26. Roller
    1. Manufacturer: Changzhou Guangyu
    2. Model: RZJ-2800
    3. Line velocity: 120 m/min
    4. Main motor horsepower: 33 kW DC motor
    5. Hydraulic motor horsepower: 4 kW AC motor
    6. Cycling oil pump horsepower: 1.1 kW AC motor
  27. Granule Machine
    1. N.A.
  28. Office Furniture and Computers
    1. Tables, chairs and cupboards
