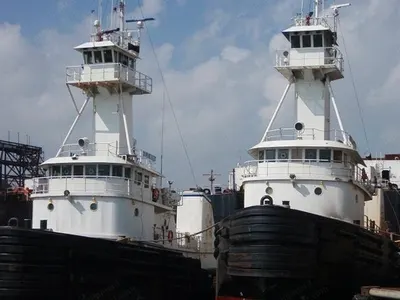

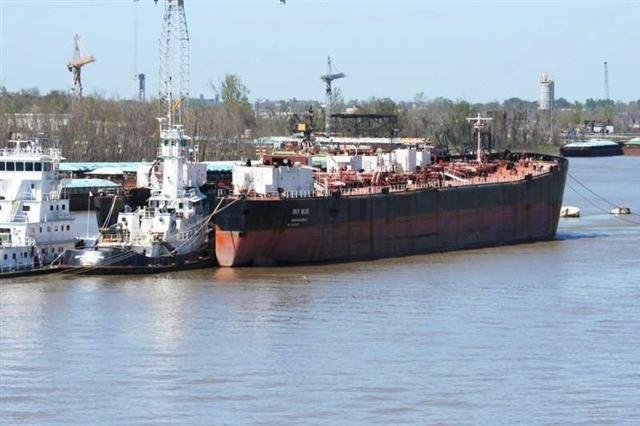

Description Tug #1 Overview Vessel type: Articulated pusher tug Build year: 1982 Builder: Bollinger Marine Fabricators Flag: USA Status: Laid up Gross tonnage: 559 tons Summer deadweight tonnage: 419 tons Last update: 2012 Dec 29 Tug #1 Vessel Details Class: (+) A1, towing service, (+) AMS, (+) ABCU service restriction: unrestricted service Last drydock survey: 2010 February 01 Last special survey: 2012 March 31 Service limit: Unrestricted service Service speed: 15 knots Trading areas: Breadth extreme: 11.00 m Breadth moulded: 10.98 m Depth: 6.86 m Draught: 5.94 m Length overall: 39.01 m Length registered: 39.01 m Net tonnage: 167 t Suez gross tonnage: 2014 t Suez net tonnage: 404 t Freeboard (summer): 270.0 mm Fuel oil capacity: 277.3 t Number of bulkheads: 6 Number of decks: 1 Hull material: Steel Hull type: Single hull Call sign: TBA Tug #1 Propulsion System Port engine manufacturer: Electro-Motive Division (General Motors) Port engine model: L16-645-E7B Port engine cylinder bore: 230.124 mm Port engine maximum continuous rating: 2163.4 kW Port engine number of cylinders: 16 Port engine piston stroke: 254 mm Starboard engine manufacturer: Electro-Motive Division (General Motors) Starboard engine model: L16-645-E7B Starboard engine cylinder bore: 230.124 mm Starboard engine maximum continuous rating: 2163.4 kW Starboard engine number of cylinders: 16 Starboard engine piston stroke: 254 mm Propeller design speed: 15 knots Propeller material (ABS grade): Bronze Propeller shaft bearing material: Synthetic rubber Aux generator number 1 rated power: 210 kW Aux generator number 2 rated power: 210 kW Tug #2 Overview Vessel type: Articulated pusher tug Build year: 1981 Builder: Bollinger Marine Fabricators Morgan City, LA – USA Flag: USA Status: Laid up Gross tonnage: 559 tons Summer deadweight tonnage: 234 tons Last update: 2012 Dec 28 Tug #2 Vessel Details Class: (+) A1, towing service, (+) AMS, (+) ABCU service restriction: unrestricted service Last drydock survey: 2009 Jul 25 Last special survey: 2011 Oct 31 Service limit: Unrestricted service Service speed: 15 knots Trading areas: Breadth extreme: 11.00 m Breadth moulded: 10.98 m Depth: 6.86 m Draught: 5.94 m Length overall: 39.01 m Length registered: 39.01 m Net tonnage: 167 t Freeboard (summer): 270.0 m Fuel capacity: 295.0 t Fuel oil capacity: 277.3 t Number of bulkheads: 6 Number of decks: 1 Hull material: Steel Hull type: Single hull Engine bore: 230 mm Engine builder: GM Electro Motive Engine cylinders: 16 Engine model: 16-645-E7B Engine power: 4266 kW Engine stroke: 230 mm Fuel type: Marine diesel Propeller: 1 fixed pitch Call sign: TBA Tug #2 Propulsion System Port engine manufacturer: Electro-Motive Division (General Motors) Port engine model: 16-645-E7B Port engine cylinder bore: 230.124 mm Port engine maximum continuous rating: 2163.4 kW Port engine number of cylinders: 16 Port engine piston stroke: 254 mm Starboard engine manufacturer: Electro-Motive Division (General Motors) Starboard engine model: L16-645-E7B Starboard engine cylinder bore: 230.124 mm Starboard engine maximum continuous rating: 2163.4 kW Starboard engine number of cylinders: 16 Starboard engine piston stroke: 254 mm Propeller shaft bearing material: Synthetic rubber Aux generator number 1 rated power: 210 kW Aux generator number 2 rated power: 210 kW
