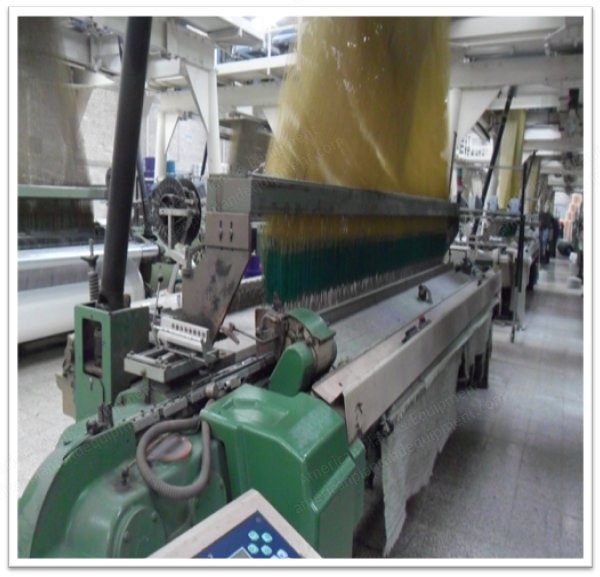

Nuovo Pignone, Fast 3600, 1998, 3600mm Width, Bonas 250 Jacquard, 4 Feeders

Nuovo Pignone, Fast 3600, 1998, 3600mm Width, Bonas 250 Jacquard, 4 Feeders

Description

  1. Overview
    1. Nuovo Pignone fast 3600
    2. Year of make: 1998
    3. Useful width: 3600 mm
  2. Specifications
    1. Feeders: 4 sirio progress
    2. Comb: 18/1”
    3. Selector: 8

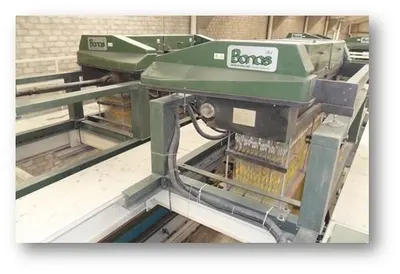

    4. Jacquard: Bonas 250
    5. Hooks: 2688
    6. Droppers: 5400
    7. Warp beams: 2
    8. Cloth rolls: 0
    9. Automatic controller
  3. Electrical
    1. Voltage: 380 V
    2. 3 phases
    3. Frequency: 60 Hz
    4. Current draw: 39.5 amps
    5. Current main motor: 26.4 amps
