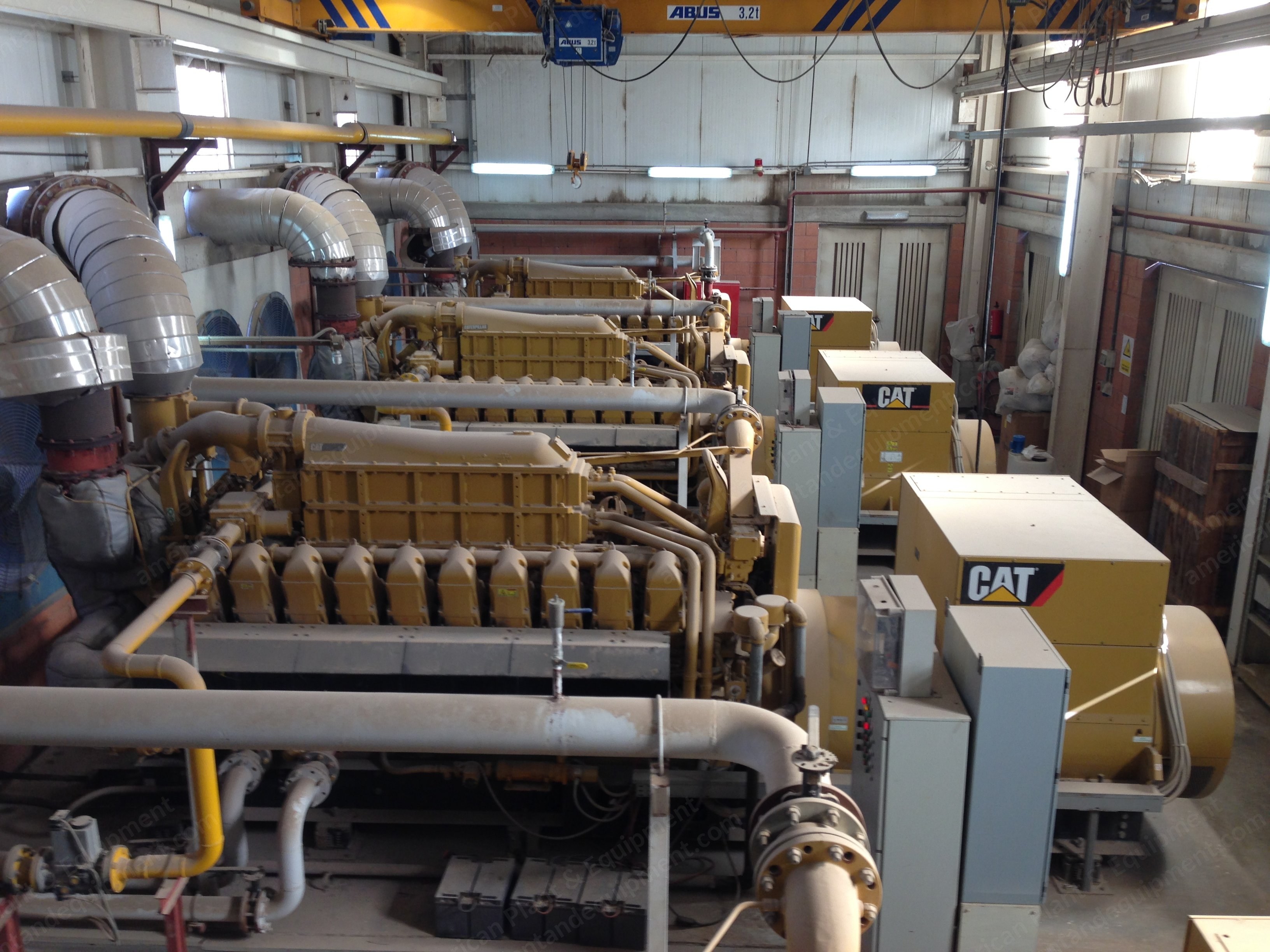

Used power plant with caterpillar natural gas generator sets 8 MW (4 x G3520)
Low emission 2000 kW (2430 kVA) continuous power
2689 hp, 1500 rpm, 50 Hz, com. ratio 11.3:1
Alternator SR4B - 11,000 volts, electrical starts
Double bearing generator, parallel to grid mode
Plant Includes

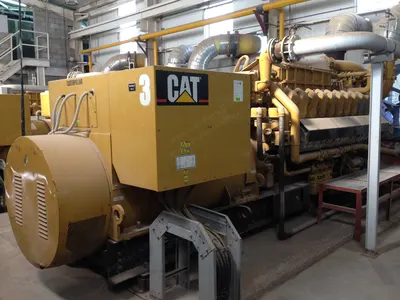

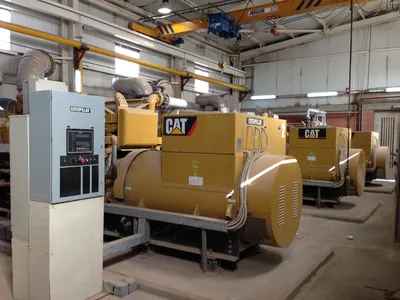

(4) Cat G3520

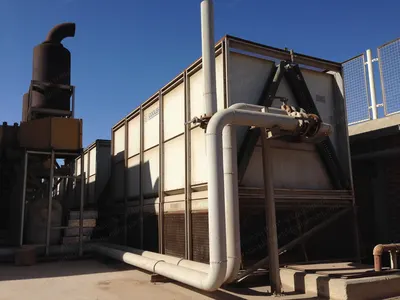

Remote radiators (cooler)

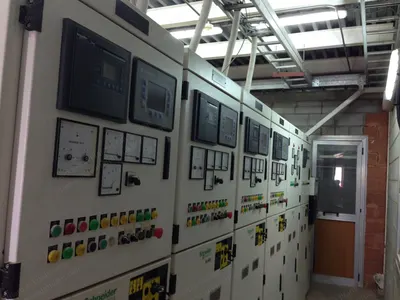

Synchronizing panel between 4 gensets
Battery charger panel for 4 gensets and switch gear

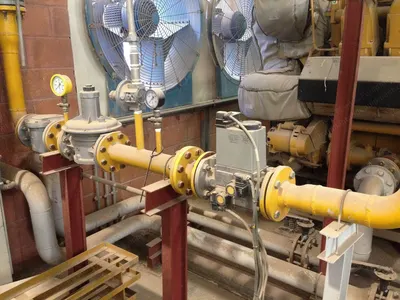

Gas trains
All the panels manufactured with Schneider Electric
Exhaust system
EMCPII panel
Jacket water heater
Air inlet system
Co-generation System
The proposed steam generator is designed in order to recover heat from flue gases of 4 gas fired engines Cat G3520 rated 2 MW/each
The boiler shall be positioned downstream the 4 engines and the flue gases shall be collected in one single duct up to the generator flue gas inlet
Each of the 4 engines shall be provided with dampers and a by-pass stack (as by pass duct it will be used the engine exhaust with muffler), the final stack will be a single unit
The heat recovery system generator will supply the saturated steam flow to the plant steam header and will be integrated from the steam generated by the existing fire tube boilers as per process needs
Year and Operating Hours
Year: (1) 2007, (3) 2008
Operating hours since new: gen #1: 9,820 hrs, #2: 7,960 hrs, #3: 9,930 hrs, #4: 8,470 hrs
Serial number: GZXXXXXX
