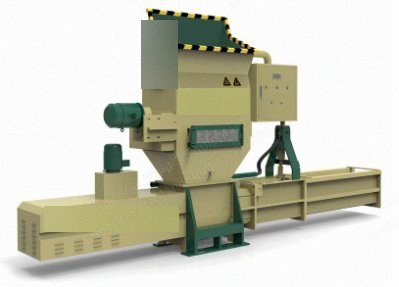

Description Overview Compactor PL SG185 for all polystyrene foam: EPS/XPS/PSP Screw compression technology produces continuous logs at a ratio of 50:1 Mechanical compression technology, safe, no fumes, lower consumption Siemens control system makes the operation easy and simple Famous brand components like Siemens, Phoenix, etc. CE/UL/CSA standards Specifications Item: A-C100 Total power consumption: 10.25 kW / 13.75 hp Dimensions (L/W/H): 3780 mm x 650 mm x 1910 mm Shipping dimensions (L/W/H): main part 2900 mm x 760 mm x 2200 mm, output chute 1310 mm x 500 mm x 620 mm Weight: 1,500 kg / 3,300 lbs Feed hopper door (L/W/H): 800 mm x 500 mm x 1700 mm EPS block dimensions (W/H): 300 mm x 300 mm Production capacity: 100 kg per hour / 220 lbs per hour EPS compression ratio: 50:1 Compressed EPS density: 200 to 400 kg/m³
