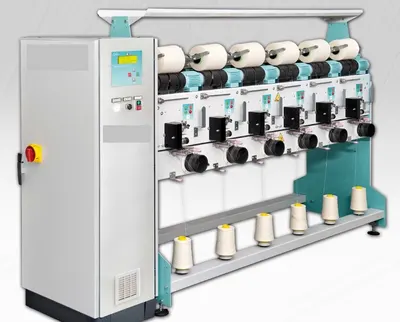

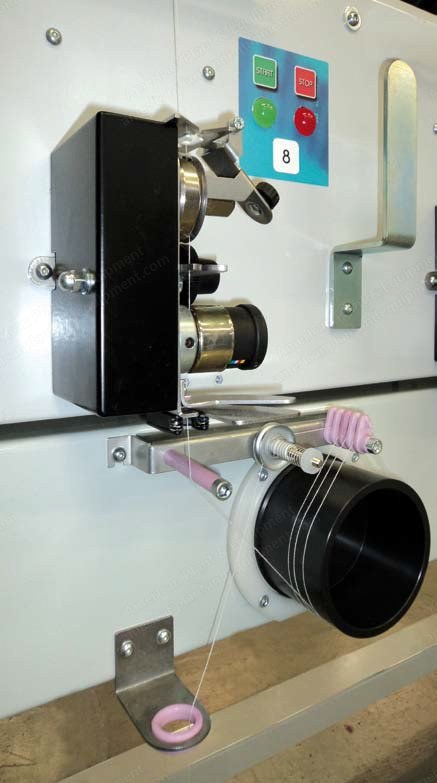

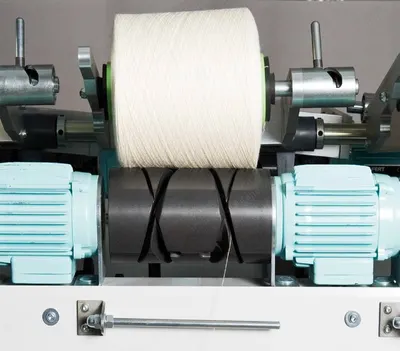

Description Overview Electronic yarn feeder with adjustable yarn overfeeding Axial movement Vertical threading Machine configuration up to 96 spindles, with programmable control unit with digital display showing production and machine operational data Can simultaneously run at two different speeds and with two different lots of yarn Individual high precision electronic meter counter per spindle Gas controlled arm pressure to accurately control the package density and tailstock with spring for axial compensation Electronic yarn feeder with yarn overfeeding (+1% - +50%) adjustable from the programmable control unit The machine can be programmed to run with two different overfeed levels Self-cleaning motorized yarn tensioner Optical yarn detection sensor Micrometric slub catcher Counter rotating motorized waxing device Programmable control unit with digital display showing production and machine operational data Electronic anti patterning system programmable by the control panel Individual AC coaxial motor per spindle run by inverter Start/stop button Under machine creel with universal bobbin holder Overhead package holder Upon request, the bu winder can be supplied with overhead trolley blower, Mesdan ATS splicer and oiling device Machine Configuration Machine configuration from 6 up to 60 spindles single sided (6 spindles per unit) From 12 up to 96 spindles double sided (12 spindles per unit) Specifications Yarn traverse 6 in (152 mm) Conicity 0°00' - 4°20' - 5°57' - interlocking bobbins and Biko-press type tubes Package's diameter up to 290 mm maximum Feeding package's diameter up to 300 mm maximum Motorization individual AC coaxial motor per spindle Power supply 400 V 3 phase – 50/60 Hz Absorption 0.09 kW per spindle Total absorption per spindle equipped with yarn overfeeding system 0.18 kW Speed from 250 to 1200 m/min Grooved Drums Available Ø 82 mm, 2 turns constant pitch, crossover angle 21° Ø 82 mm, 2.5 turns constant pitch, crossover angle 17° Ø 95 mm, 2 turns constant pitch, crossover angle 20° Ø 95 mm, 1.5 turns constant pitch, crossover angle 24° Ø 126 mm, 1.5 turns constant pitch, crossover angle 19° Weights Basic unit of 6 spindles: 225 kg - double sided 12 spindles unit: 265 kg - weight of the machine Machine equipped with yarn overfeeding system - basic unit of 6 spindles: 265 kg Double sided 12 spindles unit: 345 kg - control unit: 145 kg
