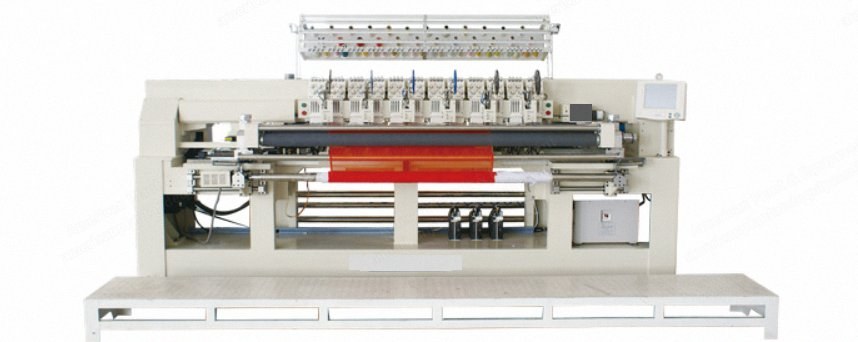

NovaStar, BE137, Roll to Roll Embroidery Machine, 12 Heads, 1620mm Width, 800 RPM (New)

NovaStar, BE137, Roll to Roll Embroidery Machine, 12 Heads, 1620mm Width, 800 RPM

Description

  1. Overview
    1. Works without frame or clamps
    2. Continuously embroiders on roll fabric, saves time and manpower, mass production is possible
    3. Both x-axis and y-axis use servo motor driving, ensuring precise embroidery result and high speed running
    4. Auto-oiling system is a special design with a spraying feature, multi-directional to lubricate machine heads, gives longer machine lifetime
    5. Automatic color change and automatic thread trimming
    6. Optional sequin devices able to create fantastic design
    7. Two servo motor offer power to x/y-axis to guarantee machine working high speed and move precision
    8. True color lcd touch screen and brilliant display
  2. Needle And Thread Information
    1. Models of machines with needle is from no.7 to no.18
    2. 20/2 rayon, this line use no.14 needle is ok
    3. Embroider the furniture fabric is problem with this machine
  3. Specifications
    1. Heads: 12
    2. Needle space (mm): 135 or (270) mm
    3. Thread colors per head: 4/6
    4. Embroidery area (mm): x direction (single pattern): 135 or (270) mm
    5. Whole width in x: 1620 mm
    6. Dimensions (mm): length (a): 3680 mm
    7. Width (c): 1500 mm
    8. Height (b): 1940 mm
    9. Speed: max.: 800 rpm
    10. Length of stitch: in binary: 0.15~12.4 mm
    11. No. of stitch storage: 1,3000,000 stitch
    12. Capacity of pattern storage: 200 patterns
    13. Power supply: 3-phase: as per customer
    14. Consumption: 4.5~5 kw
    15. Weight: 2.5 tons
  4. Options
    1. Sequin device
    2. Sequin device and tracing cording device (if you want to add sequin device and tracing cording device at the same time, you can add sequin device on one head, the tracing cording device must be added on the next head, the middle of two sequin device have one tracing cord device)
