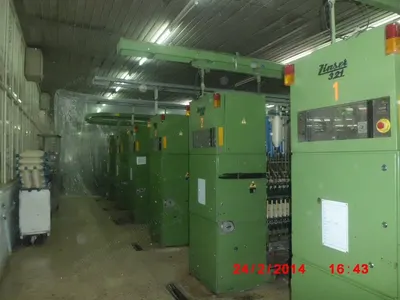

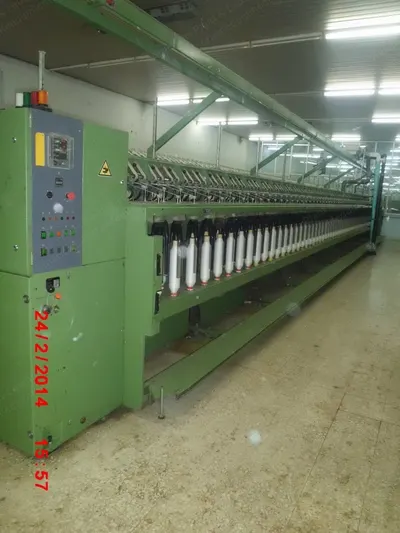

Zinser, Complete Spinning Plant, 28,944 Spindles, Trützschler Blow Room

Zinser, Complete Spinning Plant, 28,944 Spindles, Trützschler Blow Room

Description

  1. Overview
    1. Complete blow room preparation line for cotton and synthetic fibre blending.
    2. Line consists of multiple preparation stages and two parallel machine parks.
    3. Includes a dedicated weighing system for precise blending control.
  2. Ring-1 Plant Blow Room Preparation Line
    1. Blendomat by Trützschler, year 1991, type BDT 019-603 2300: length 30 m, width 2.3 m, max 160 bales, 2 blends can work at the same time (automatic bale opener).
    2. Ema 1000 metal detector by Trützschler, year 1991, type 151-04 01: separates metal items from the fiber.
    3. Afc by Trützschler, year 1995, type 052-25 02: metal mixer and cleaner.
    4. Rn by Trützschler, year 1991, type 096-07 03: opens the fiber finer.
    5. Jossi by Rieter, year 1991, type Jossi: metal separator, controller, separates foreign colors (camera system).
    6. Condenser by Trützschler, year 1991, type LVSA 375-04 09: material separator (deliverer).
    7. Rst by Trützschler, year 1991, type 069-07 03: fine opener.
    8. Condenser by Trützschler, year 1991, type LVSA 375-04 09: material separator (deliverer).
  3. Line 1 Machine Parc

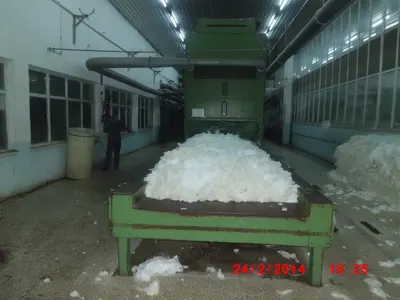

    1. Bale opener by Trützschler, year 1991, type BOA 1600: bale opener with conveyor, manual feeding possible, conveyor 5.25 m, width 1600 mm.
    2. Magnet: separates metal items from the fiber.
    3. Axiflow by Trützschler, year 1991, type AFC 1200: material mixer and cleaner.
    4. Mixer by Trützschler, year 1991, type MPM 10/2000: multiple mixer, room number 10, chassis width 2000 mm, without conveyor, pneumatic fiber deliverer.
    5. Condenser by Trützschler, year 1996, type LVSA 375: material separator (deliverer).
    6. Sectional feeding by Trützschler, year 1996, type BS 987/1600: sectional feeding.
    7. CVT-4 opener by Trützschler, year 1994, type CVT-4 1600: opener with 4 cylinders, chassis width 1600 mm.
    8. Condenser by Trützschler, year 1991, type LVSA 375: material separator (deliverer).
    9. Sectional feeding by Trützschler, year 1998, type MS1400 191-20 02: sectional feeding.
    10. Dustex fine dust holder by Trützschler, year 1991, type DX 385-10 02: fine dust holder.
  4. Line 2 Machine Parc
    1. Hergeth opener by Ingolstadt, year 1973, type Bale Openerı: bale opener.
    2. Mixer by Trützschler, year 1994, type MM 8/1600: multiple mixer, room number 10, chassis width 1600 mm, conveyor system for fiber transport.
    3. CVT-3 opener by Trützschler, year 1994, type CVT-3 1600: opener with 3 cylinders, chassis width 1600 mm.
    4. Dustex by Trützschler, year 2000, type DX 385 1001: fine dust holder.
    5. Condenser by Trützschler, year 1995, type LVSA 375: material separator (deliverer).
    6. Sectional feeding by Trützschler, year 1995, type MS1400: sectional feeding.
  5. Weighing System for Cotton and Synthetic Fibres Blending
    1. BOA opener by Trützschler, year 1994, type BOA 1200: platform feeding polyester and viscose opener, length 5.25 m, width 1200 mm.
    2. AS band opener by Trützschler, year 1995, type AS 1000: dual band opener, length 2.75 m.
    3. BOWA weigher by Trützschler, year 1994, type BOWA 046/1600: platform feeding blending with % control, length 5.25 m, width 1600 mm.
    4. PWSE weigher by Trützschler, year 1995, type PWSE 1600: platform feeding blending with % control.
    5. Condenser by Trützschler, year 1995, type LVSA 375: material separator.
    6. BOWA weigher by Trützschler, year 1994, type BOWA 046/1600: platform feeding blending with % control, length 5.25 m, width 1600 mm.
    7. Conveyor band by Trützschler, year 1995, type FM: 1 cylinder blending with conveyor band, deliverer, opener.
    8. Mixer by Trützschler, year 1995, type MPM 8/1400: multi mixer with 8 chambers, width 1400 mm.
    9. Tuftomat by Trützschler, year 1994, type TFV1/1200: 1 cylinder, polyester/viscose opener, chassis width 1200 mm.

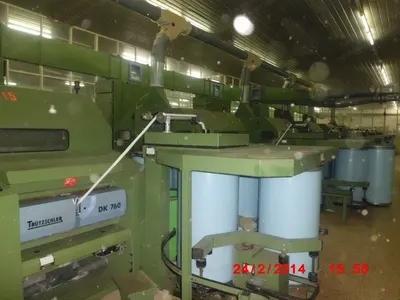

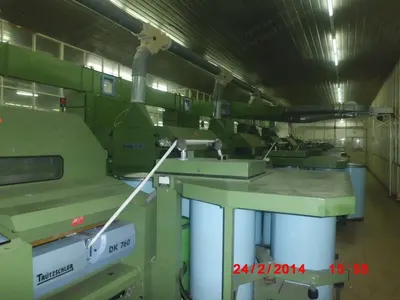

  6. Carding Machine Line
    1. Carding machine line details not provided in the input.
