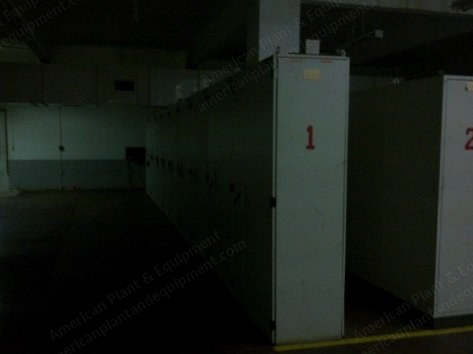

Barmag, FDY Line, 1990, 48 Positions, 290 kg/hr Capacity

Description

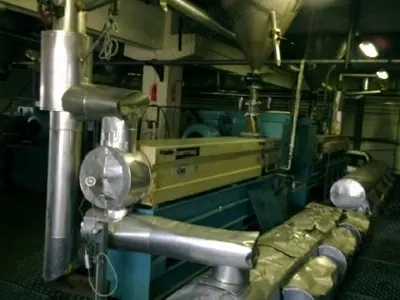

Extruder
1. Type: Barmag 10 E8/24D (single screw)
2. Capacity: max. 290 kgs / hr
Motor Extruder
1. Type: Siemens DC motor
2. Type: 1GG5 182-OND10-6SU-Z
3. DC motor 59.5 kW, 143 A, 1970 rpm

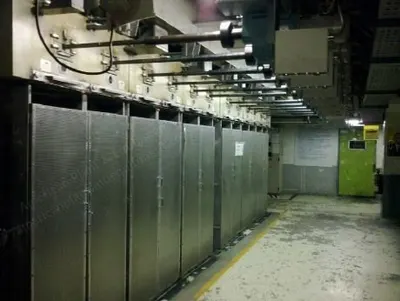

Spinning
1. Type: EMS-Inventa-AG process
2. Position: 16 position, 6 end / position
3. Capacity D/N: 40 – 100 denier spinpack
4. Diameter: 64 mm
5. Spin pump: Barmag 6 x 1.2 cc/rev, 6 x 1.8 cc/rev
6. Specs of motor (spin pump): type 1FU3087-6TV91-Z IEC80 IMB5 IP54, 125 V 50 Hz 400 W 2.5 A 1000/min VDE0530, I.CI.F 2.5/Hz 25-150 Hz Imax=2.8 A, Siemens
7. Specs of motor finish oil: type G042-20/DUS44-114L-S 220 V 50 Hz, 127 V 0.25 A 25 W, Eberhard Bauer
Take-Up
1. Type: H4S EMS-Inventa Inventa-AG process
2. Motor godet 1+4: type 1FU4081-2TV99-Z IEC80 IMB5 IP44, 100 V 50 Hz 154 W 1.7 A 3000/min VDE0530, 2.0 V/Hz 25-212 Hz, Siemens
3. Godet duo 1+4: cool godet
4. Godet diameter: 157 mm

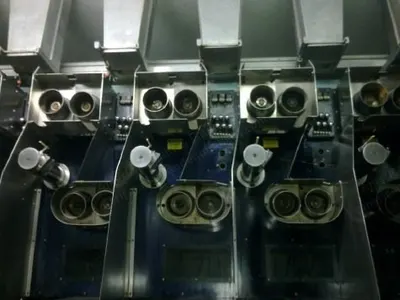

Winder
1. Type: Barmag SW-62-R-900 (auto doffing)
2. Specs of spindle motor: type 1LA5113-2AA92-Z 190-285-360 V, IEC112M IMB14 IP54, 16.0 A 3.56-5.34-2.35 kW, I.CI.F 50-75-280 Hz, 2880-4380-16700/min, Siemens
3. Spindle diameter: 150 mm

Spinning Process	EMS-Inventa-AG Process
Type	Barmag SW-62-R-900 (Auto Doffing)
