Barmag, CW6T-920/6, 1995, FDY Line, 12 Positions, 6 Ends/Position

Barmag, CW6T-920/6, 1995, FDY Line, 12 Positions, 6 Ends/Position

Description

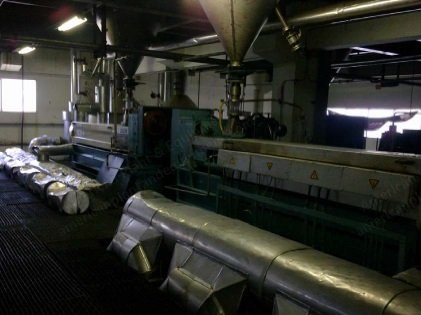

  1. Extruder
    1. Type: Barmag 10 E8 (single screw)
    2. Capacity: max. 290 kgs / hr
  2. Motor Extruder
    1. Type: Siemens DC motor
    2. Specs: type 1GG5 182-OND10-6SU-Z DC motor 59.5 kW, 143 A, 1970 rpm
  3. Spinning
    1. Type: EMS-Inventa-AG process
    2. Positions: 12 positions, 6 end / position
    3. Capacity d/n: 30 - 70 denier
    4. Spinpack diameter: 105 mm
    5. Spin pump: Barmag 6 x 1.2 cc/rev
    6. Spec motor spin pump: type 1FU3087-6TV91-Z IEC80 IMB5 IP54, 125 V, 50 Hz, 400 W, 2.5 A, 1000/min VDE0530 I.CI.F 2.5/Hz 25-150 Hz Imax=2.8 A, Siemens
    7. Spec motor finish oil: type G042-20/DUS44-114L-S 220 V 50 Hz 127 V 0.25 A 25 W, Eberhard Bauer
  4. Take-Up
    1. Type: H4S EMS-Inventa-AG process
    2. Motor godet 1+4: type 1FU4081-2TV99-Z IEC80 IMB5 IP44, 100 V, 50 Hz, 154 W, 1.7 A, 3000/min VDE0530 2.0 V/Hz 25-212 Hz, Siemens
    3. Godet duo 1+4
    4. Cool godet
    5. Godet diameter: 157 mm

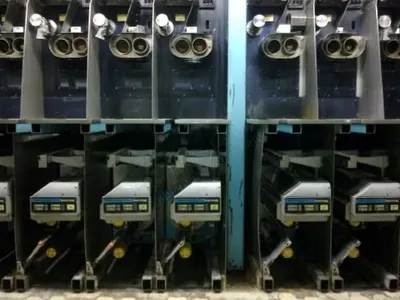

  5. Winder
    1. Type: Barmag CW6T-920/6 (auto doffing)
    2. Spec motor spindle: type 1LA5113-2AA92-Z 190-285-360 V IEC112M IMB14 IP54, 16.0 A, 3.56-5.34-2.35 kW, I.CI.F 50-75-280 Hz, 2880-4380-16700/min, Siemens
    3. Spindle diameter: 150 mm
