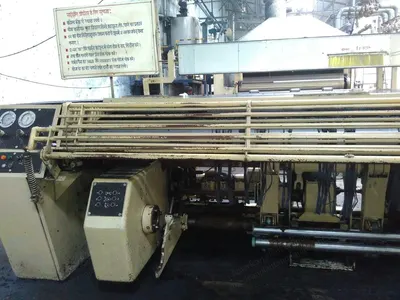

Sucker, Sizing Machine, 1997, 3300mm Creel Width, 12 Beams, 14 Drying Cylinders

Sucker, Sizing Machine, 1997, 3300mm Creel Width, 12 Beams, 14 Drying Cylinders

Description

  1. Overview
    1. Creel working width: 3300 mm
    2. Creel capacity: 12 beams
    3. Year: 1997
  2. Let-Off and Tension Control
    1. Let-off device for maintaining creel tension as well as yarn sheet tension in feed of size box

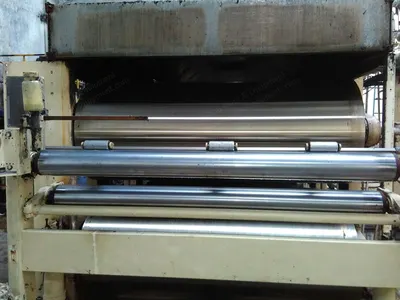

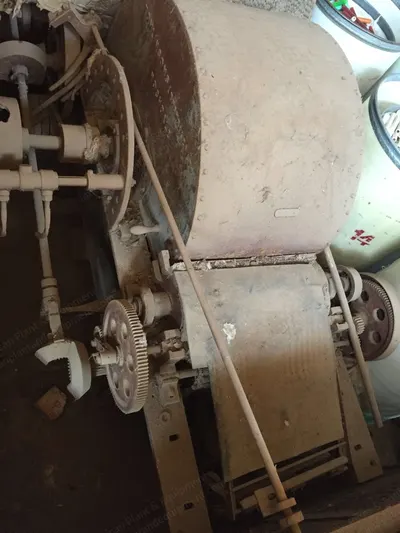

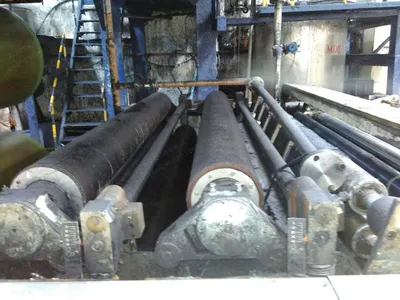

  3. Size Box
    1. Double dip/double nip, with circulation motor and pump
    2. Squeezing roller: 2000 mm x 209 mm diameter, 65 shore hardness
    3. Size roller: stainless steel roller, 2000 mm x 240 mm diameter
    4. Immersion roller: 1960 mm x 180 mm diameter
    5. Feed roller diameter: 2000 mm x 212 mm diameter, drive by gear box, belt pulley

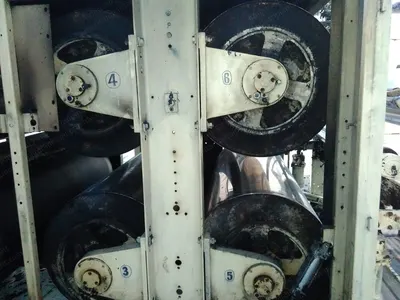

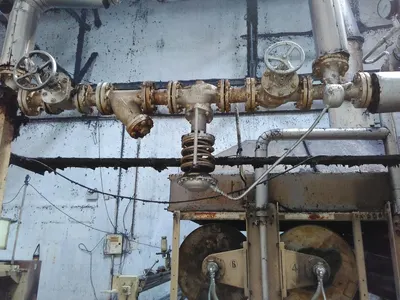

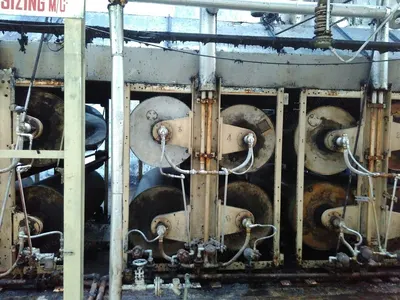

  4. Drying Cylinders
    1. 14 drying cylinders, 9 teflon coated, 2000 mm x 800 mm, 3 groups/auto control
  5. Leasing and Compensator
    1. Leasing device: rod 38 mm
    2. Warp compensator

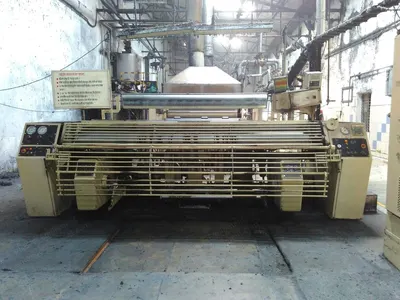

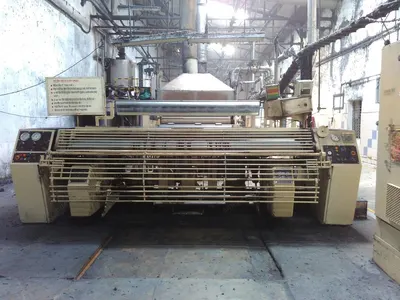

  6. Headstock and Beam Control
    1. Headstock delivery roller diameter: 3300 mm x 212 mm, 85 shore hardness

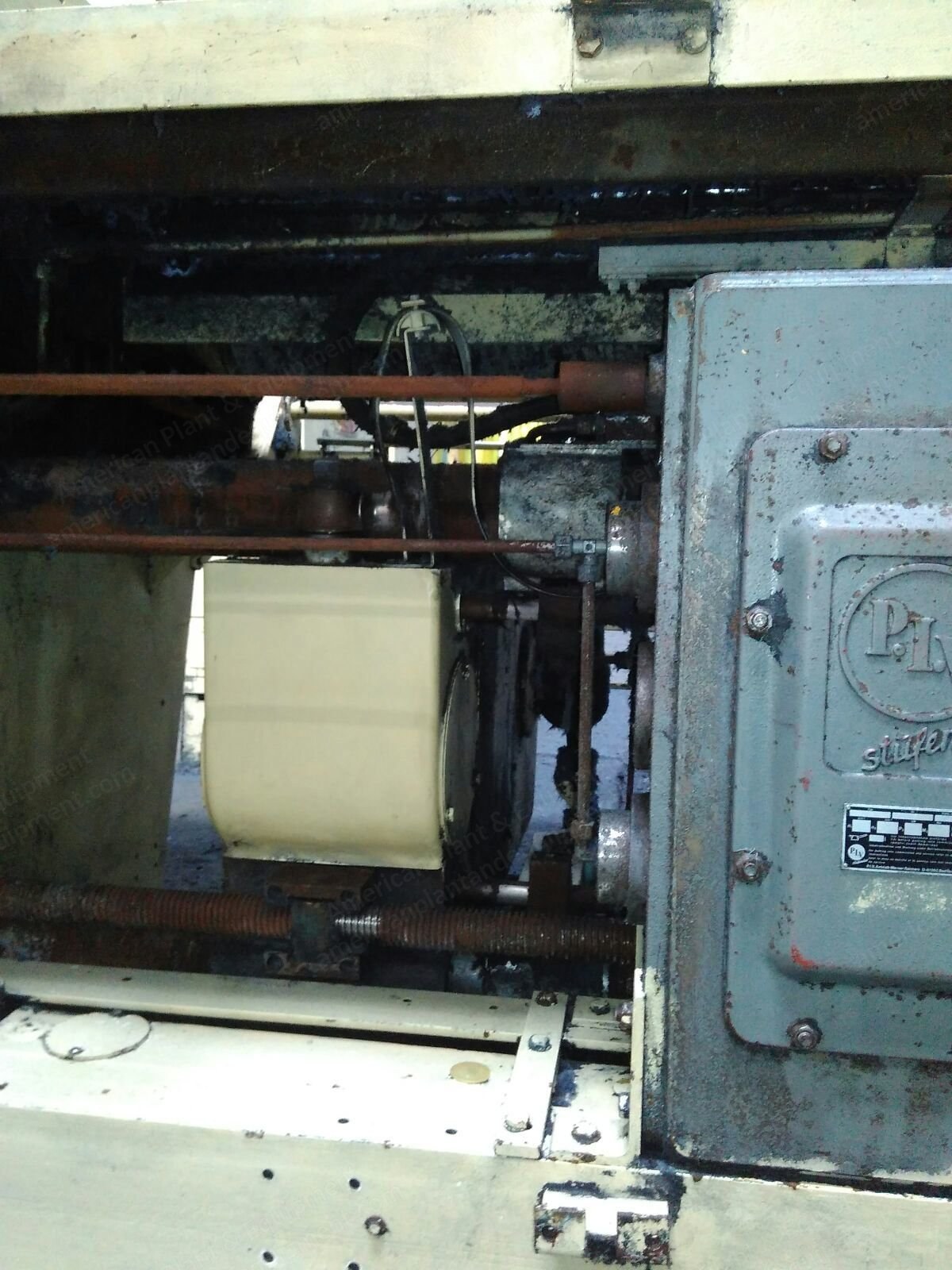

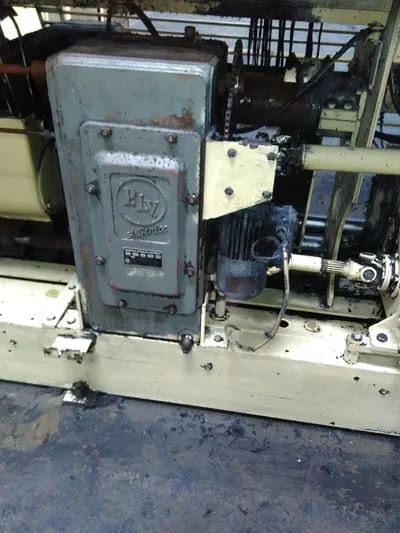

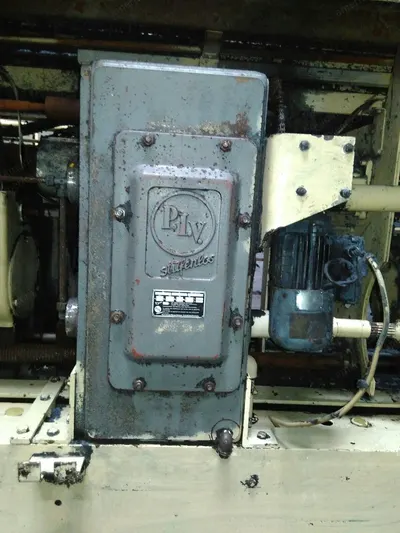

    2. Piv system for beam diameter control
    3. Hydraulic system for beamer functioning (doffing, donning, beam carriage)
    4. Press roller
    5. Beamer capacity: 1100 mm flange diameter
    6. Barrel length: 2360 mm diameter 216 mm

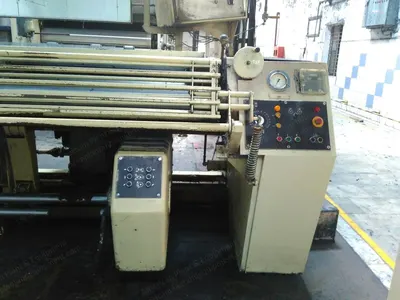

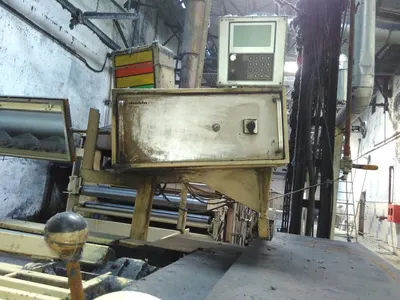

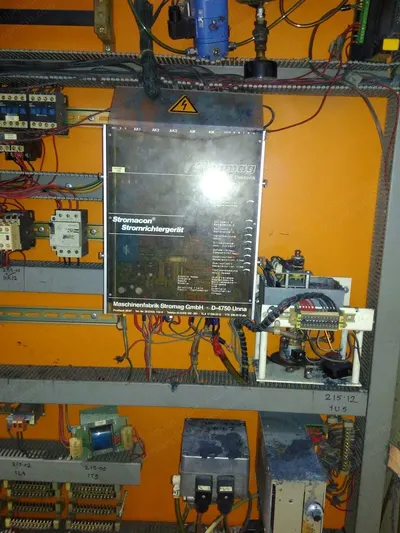

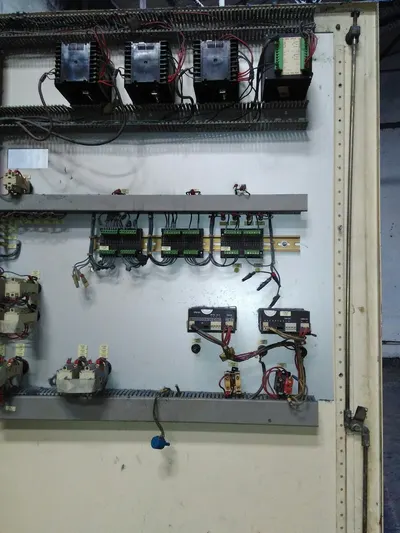

  7. Monitoring and Control
    1. Moisture monitoring and control: Mahlo

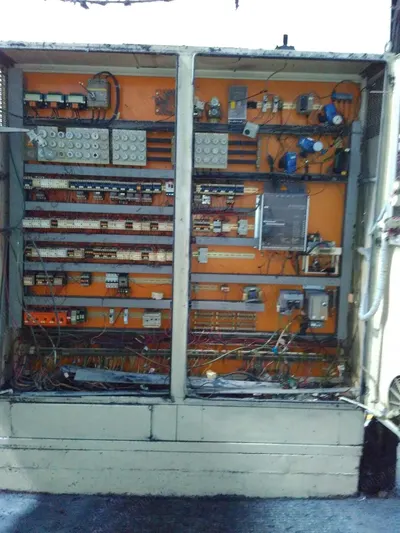

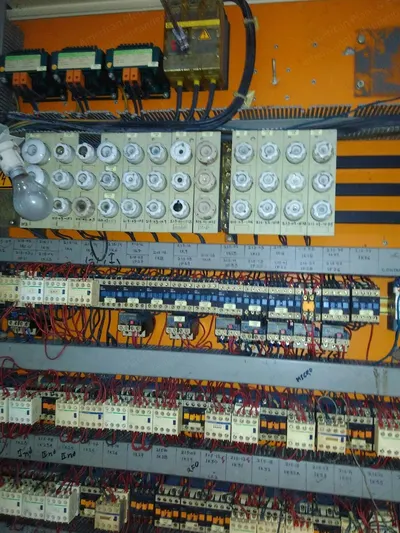

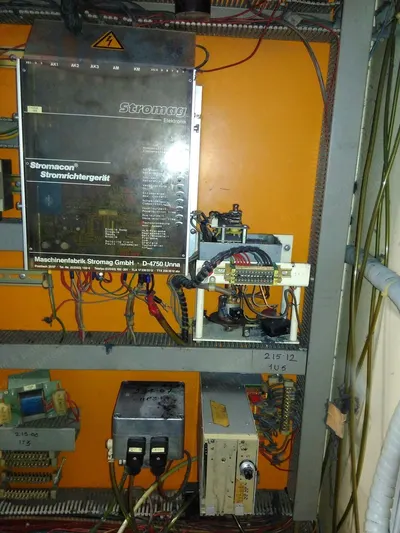

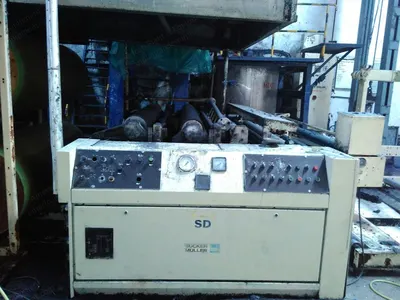

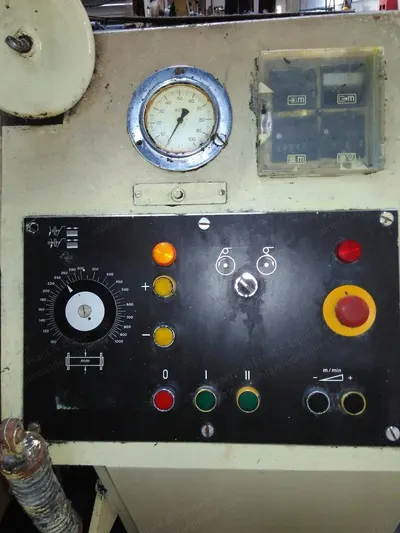

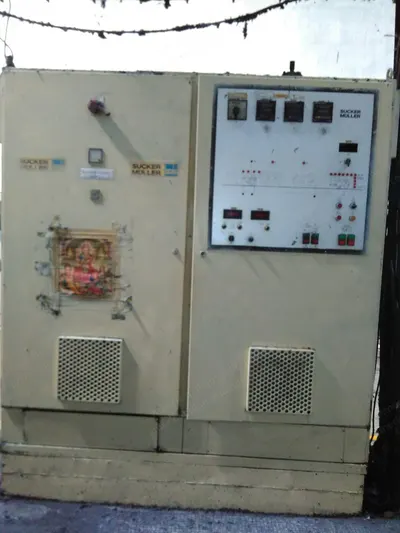

    2. Control panel: 1
