Union, 6 Inch Single Screw Extruder and Reifenhauser 86 Inch Sheet Line, 6 Inch Screw Diameter, 86 Inch Wide, 220 kW

Union, 6 Inch Single Screw Extruder and Reifenhauser 86 Inch Sheet Line, 6 Inch Screw Diameter, 86 Inch Wide, 220 kW

Description

  1. Overview
    1. Reifenhauser sheet line
    2. Year: estimated at mid 1980s
    3. Reconditioned machine

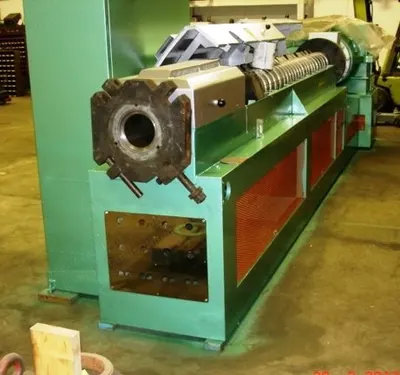

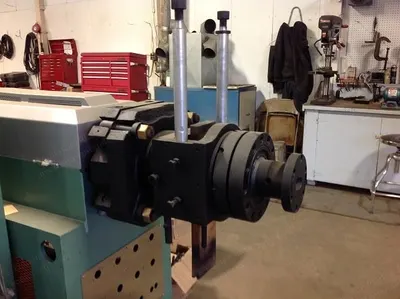

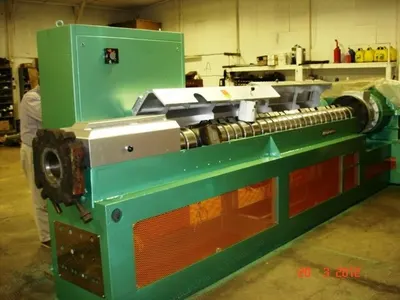

  2. Extruder Specifications

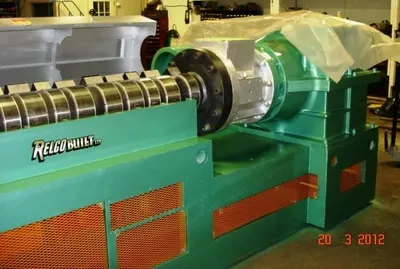

    1. 6 inch screw diameter
    2. Standard centerline center-screw to floor (1040 mm)
    3. 30:1 L:D vented side opening
    4. Air cooled barrel with 7 control zones (280 mm)

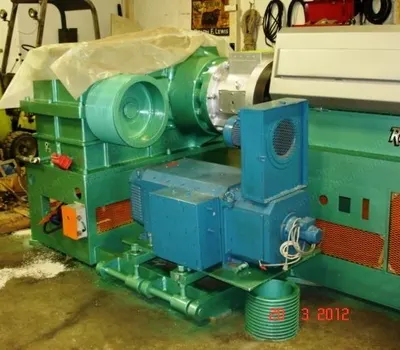

    5. 220 kW (290 hp) completely rebuilt bull motor

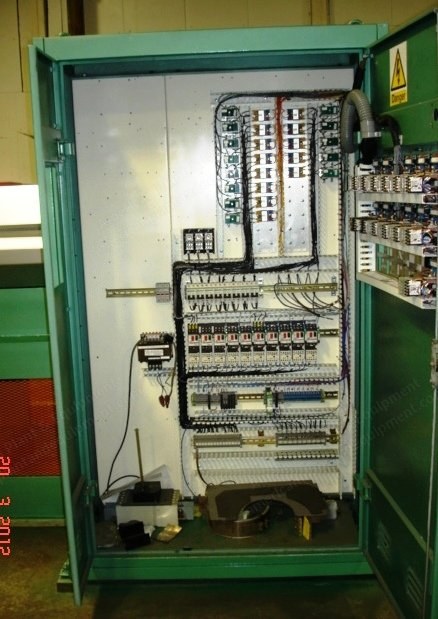

    6. New temperature control panel with 13 zones

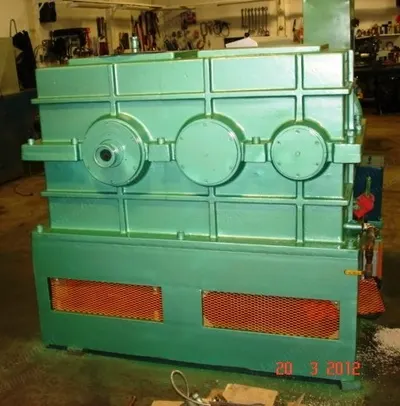

    7. Drive motor belt driven into the gear reducer
    8. New barrel and used rebuilt screw

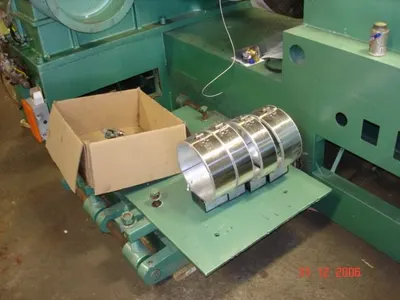

    9. New barrel heaters
    10. 480 V
    11. 60 Hz
    12. Screw was used for 2 stage, can be rebuilt based on request
  3. Sheet Line Downstream
    1. Reifenhauser 86 inch wide, sheet calendar roll stack, presently set for 45° tilt operation, but can be modified to vertical or other position
    2. Roll diameter 24 inches, roll width 86 inches, includes all high polish rolls with two unused spare rolls
    3. Rolls are individual driven rolls with 3 new gear reduction gear reducers with 1.5 hp drive motors VFD variable speed

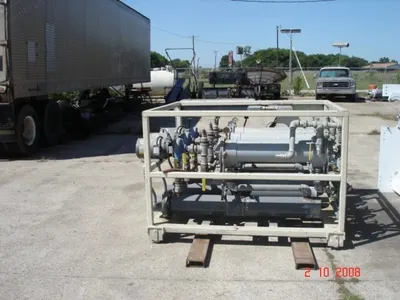

    4. Included: a 3 zone heat/cool roll temperature control system with under 2 years of production use
    5. Free standing with temperature controllers built in
    6. Hydraulic power pack and controls for roll movement up/down

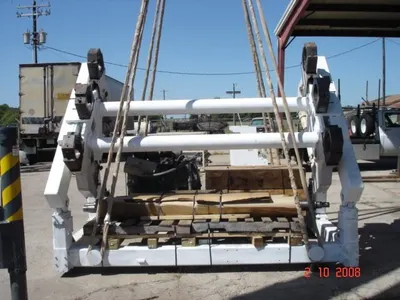

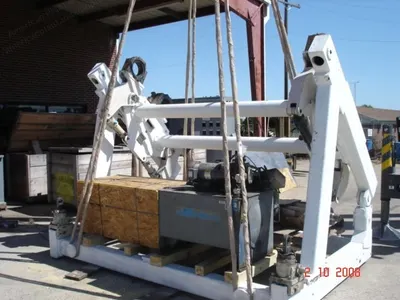

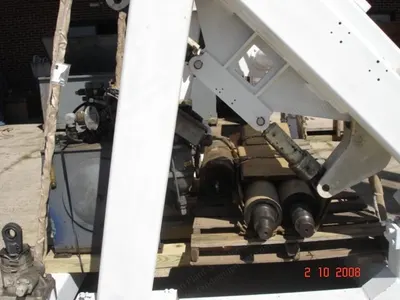

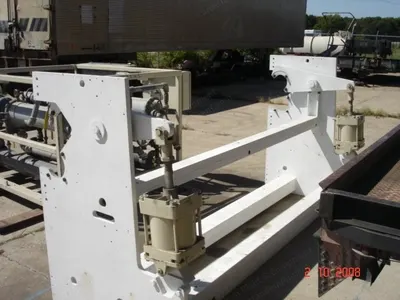

    7. Includes one rebuilt set of pull rolls and frame, motor, pneumatics, new coverings on rolls, 86 inches wide, roll diameters 10 inches each
    8. 20 foot long conveyor is included with the line as it presently sits; conveyor has manual type knife provision for rotating of knives into/out of sheet
  4. Items Not Included But Can Be Added
    1. Die: to be determined when buyer specifies width and thickness desired; this can be a used die or new die; other types and size dies may be available at time of request
    2. Maag/Entrex 70/70 melt pump system with controls available but not fitted at this time to the line
    3. Winder or shear
