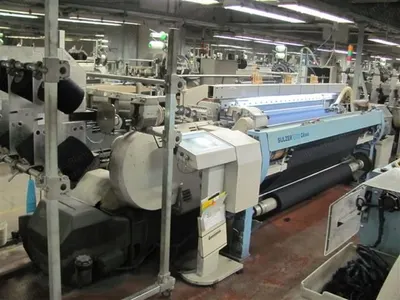

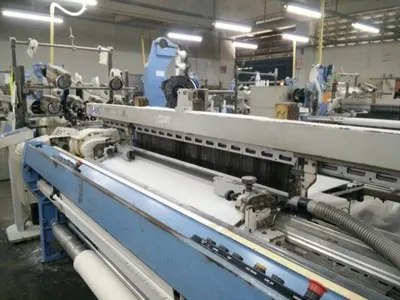

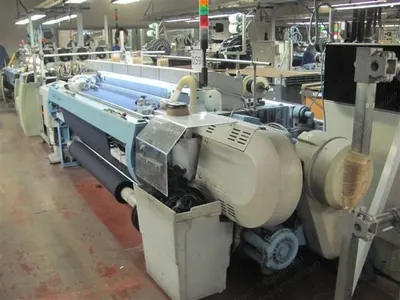

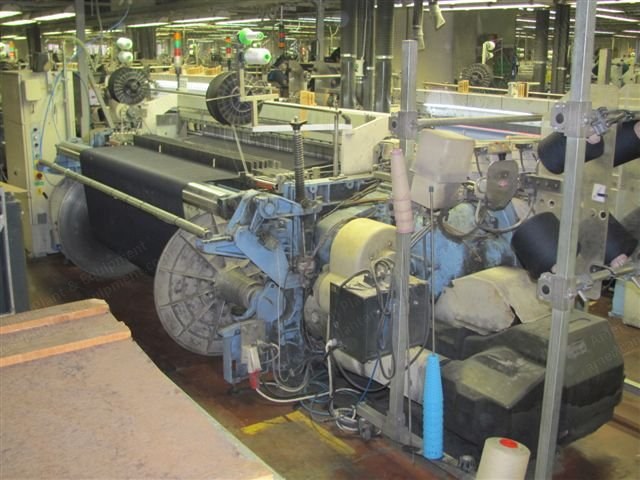

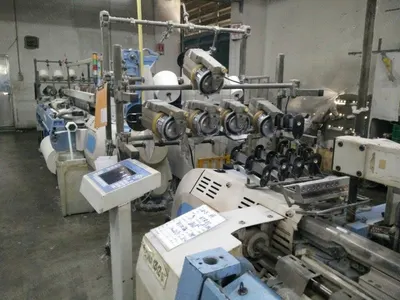

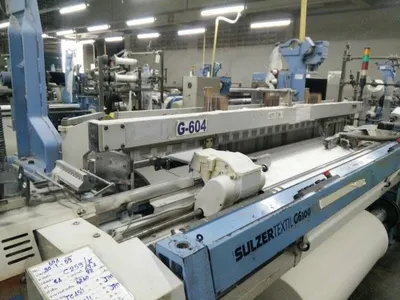

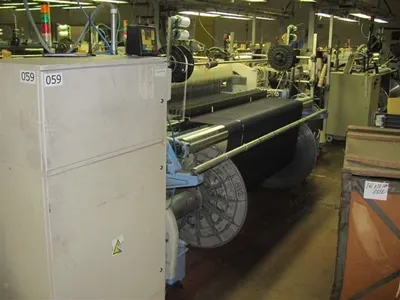

Sulzer, G6300 B 220 N4 SP 20/20, 2000, 2200mm, Staubli 2670 Dobby, 8 Colors, 660 RPM

Sulzer, G6300 B 220 N4 SP 20/20, 2000, 2200mm, Staubli 2670 Dobby, 8 Colors, 660 RPM

Description

  1. Overview
    1. Weaving looms
    2. Make: Sulzer
    3. Model: G6300 B 220 N4 SP 20/20
    4. Year: 2000-2001
  2. Specifications
    1. Width: 2200 mm
    2. Electronic Staubli dobby 2670 with 20 levers installed
    3. Electronic let off and take up
    4. Standard back-rest roller with breaking device
    5. 4 colors (up to 8 colors)
    6. 10 harnesses
    7. 5,000 heald frames
    8. 5,000 droppers
    9. Maximum machine speed of 660 rpm
    10. Maximum weft insertion rate of 1450 meters per minute
    11. Inverter device for automatic speed change
  3. Equipment Per Loom

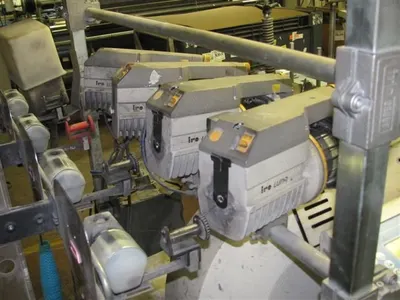

    1. 4 accumulators Iro Orion
    2. 16 to 20 frames for 330 mm for DRC4 connection, quick style change
    3. 1.5 warp beams 193 mm diameter tube with flanges 800 mm diameter

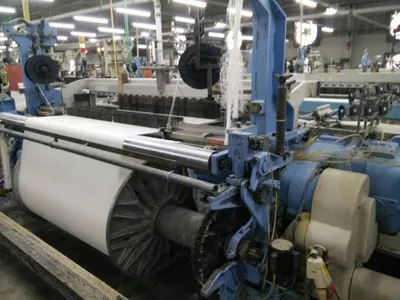

    4. 1.5 cloth rollers for maximum winding of 600 mm diameter

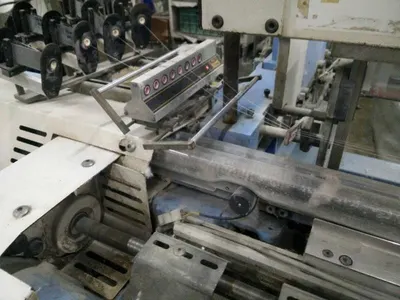

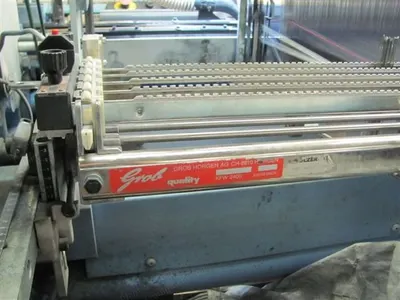

    5. Warp stop motion with 6 contact bars
    6. All looms equipped with double (fancy) beam
