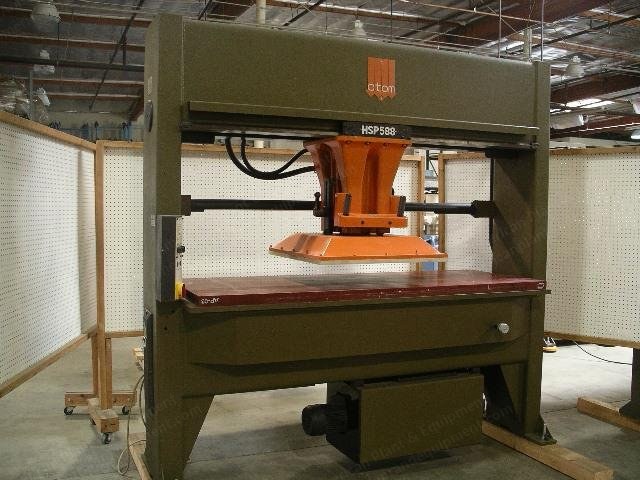

Atom, HSP 588/10, Hydraulic Traveling Head Press, 33 Tons, 750x2000mm Cutting Area

Atom, HSP 588/10, Hydraulic Traveling Head Press, 33 Tons, 750x2000mm Cutting Area

Description

  1. Overview
    1. Cutting force: 33 tons
    2. Cutting area: 29.5” x 78.75” (750 mm x 2000 mm)
    3. Trolley: 29.5” x 29.5” (750 mm x 750 mm)
    4. Cutting stroke: 5.9” (150 mm)
    5. Max. daylight: 7.4” (188 mm)
  2. Specifications
    1. Pump motor: 2.5 hp
    2. Trolley motor: 1 hp
    3. Max. trolley speed: 31.5”/sec
    4. Cutting speed: 3.5”/sec
    5. Net weight: 4,994 lbs
    6. Power: 220 V, 3-phase, 60 cycle
  3. Included
    1. Polypropylene cutting pad
