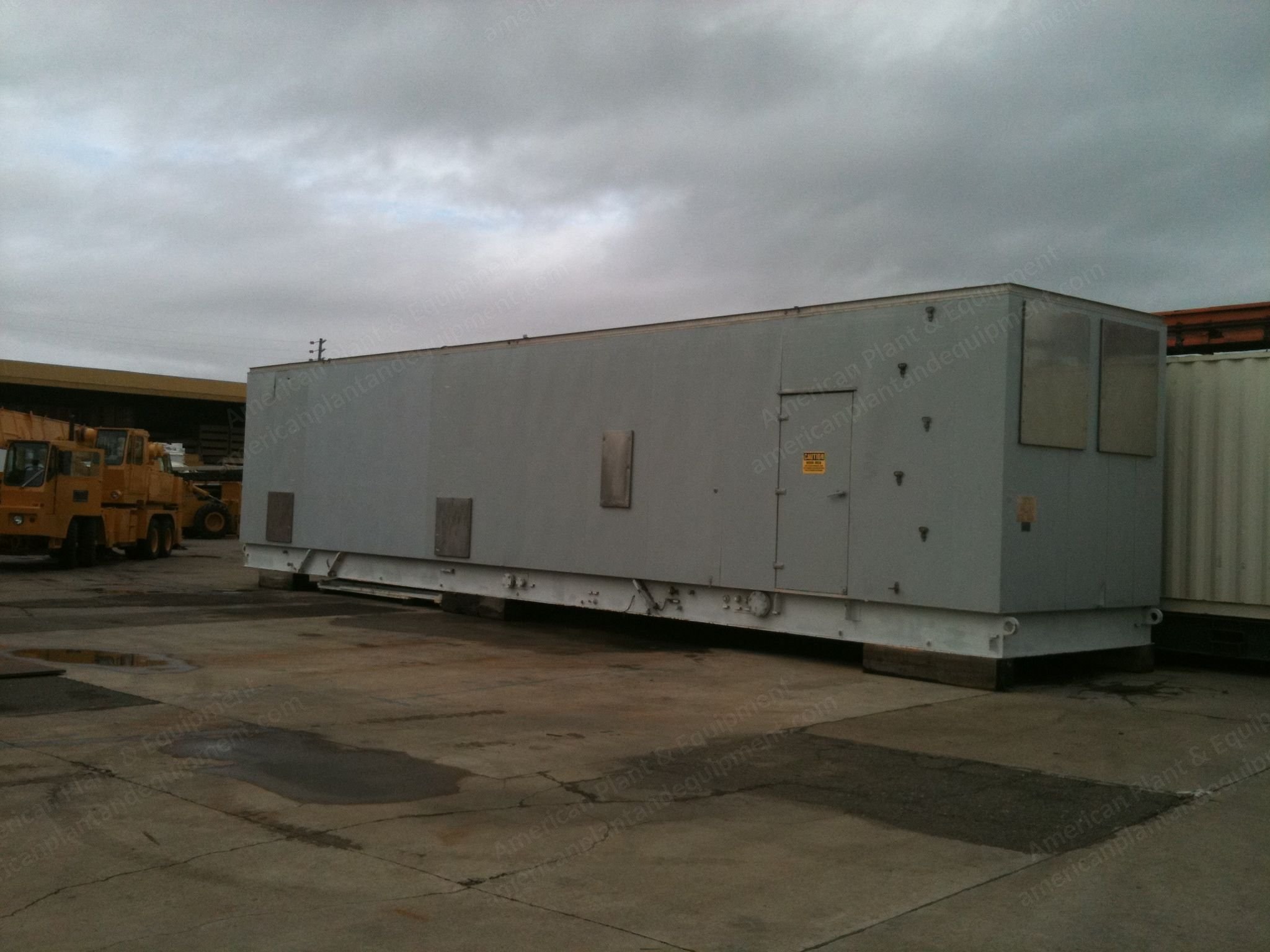

Superior, Seminole, 1994, 20,000 lbs/hr, 600 HP, 160 PSI, Mobile Steam Plant

Superior, Seminole, 1994, 20,000 lbs/hr, 600 HP, 160 PSI, Mobile Steam Plant

Description

  1. Overview
    1. 20,000 lbs per hour
    2. 160 psi
    3. 600 hp superior seminole wetback 3 pass scotch marine boiler

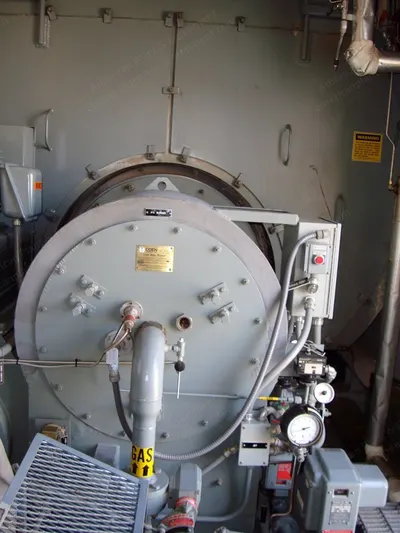

    4. Coen micro nox burner rated at 750 bhp
    5. Maximum pressure is stated at 175 psi
  2. Electrical and Control Systems
    1. Electrical power distribution (225 amp breaker)
    2. Burner control panel
  3. Support Systems
    1. Makeup, deaerator, condensate and feedwater system
    2. Boiler blow down system
    3. Natural gas / propane supply system
    4. Combustion air system
    5. Chemical treatment system
    6. Water sample system
    7. Heating ventilation system
  4. Design and Environmental Specifications
    1. Designed ambient temperature range: -25 f to 100 f at elevations from 0-5,000 ft
    2. Designed for transport by truck, train, or ship
  5. Dimensions and Weight
    1. Shipping dimensions: 50 ft 9 in long x 10 ft 6 in wide x 11 ft 6 in tall
    2. Weight: 94,000 lbs
    3. Setup dimensions with stack and rain cap: 20 ft 3 in tall, wet weight 137,000 lbs
    4. Measures approximately 51 ft long x 10 ft 6 in wide, 11 ft 6 in high and 95,000 lbs with all accessory equipment on board
  6. Shipping and Transport
    1. We ship these enclosed boiler rooms on stretch deck low boy trailers
