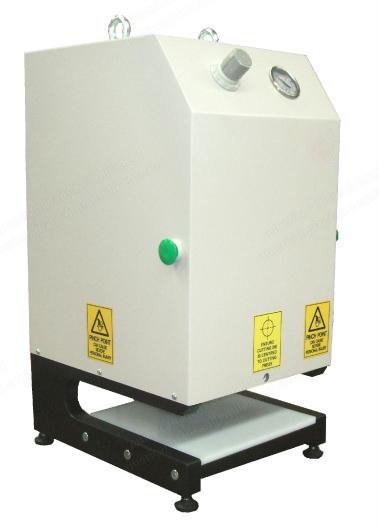

Description Applications Paper and carton board Textiles Polyurethane Rubber Plastics Many other materials Foil Features One or more sheets can be cut simultaneously Two hand control valve operation that conforms to EN574/AS4024 (both hands are required to operate the unit so fingers are out the way before cutting) Replaceable cutting board Compact in size and fits onto a work table to conserve work space Front load for easy operation 95 mm daylight (clearance from press plate to cutting board) Options Tool steel and ruler dies of standard and custom sizes can be used and interchanged with ease with the additional adaptor Full stainless steel option for clean room environments Spare cutting boards Specifications Model C0050-1: capacity 0-3 ton, cutting area 300 x 300 mm, connections air 80-100 psi, dimensions 720 h x 440 w x 550 d, weight 115 kg Model C0050-2: capacity 0-10 ton, cutting area 300 x 300 mm, connections hydraulic, dimensions 720 h x 440 w x 550 d, weight 235 kg
