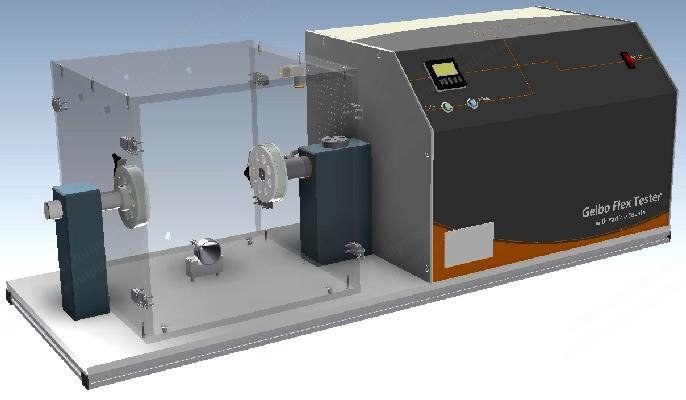

IDM, Gelbo Flex Tester, 60 cycles/min, 120mm Stroke, with Particle Counter

IDM, Gelbo Flex Tester, 60 cycles/min, 120mm Stroke, with Particle Counter

Description

  1. Overview
    1. The gelbo flex tester with particle counter measures the amount of loose fibers (lint) shed from non-woven materials in a 30 second time period of flexing.
    2. It is important that non-woven textile materials must have a low tendency to lint.
    3. The IDM gelbo flex tester with particle counter is a fast and accurate instrument for determining the linting of non-woven materials.
    4. This test can also be applied to other materials like tissues.
    5. The sample is subjected to repetitive twisting and compression cycles, air is withdrawn from the testing chamber and particles in the air stream are counted and classified with the laser particle counter.
  2. Applications
    1. Non-wovens
    2. Wovens
    3. Textiles
    4. Healthcare
    5. Hygiene
    6. Filtration
  3. Benefits
    1. Easy to use
    2. Fast results
    3. Accurate
  4. Specifications
    1. 82.8 mm diameter mandrels x 2
    2. 60 cycles/min
    3. 180° rotation
    4. 120 mm stroke
    5. Flexing chamber: 300 x 300 x 300 mm
    6. Flow rate: 1 cfm (28.3 lpm)
    7. Storage: up to 3,000 data sets
  5. Features
    1. Gelbo flex tester
    2. Flexing chamber and air collector
    3. Stainless steel cutting template: 285 mm x 220 mm
    4. Sample mounting fixture
    5. Isokinetic probe (air collector)
    6. Particle counter: optional sizes available
    7. 6 sensor monitor
  6. Standards
    1. ISO 9073-10
    2. INDA IST 160.1
    3. DIN EN 13795-2
    4. YY/T 0506.4
  7. Options
    1. Particle counter (please specify sizing range when ordering)
  8. Models
    1. 3100+ C6 INDA IST 160.1 0.3, 0.5, 1.0, 5.0, 10.0, 25.0 µm
    2. 5100+ C6 INDA IST 160.1 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 µm
    3. 3100+ C8 ISO 9073-10 0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 10.0, 25.0 µm
    4. 5100+ C8 ISO 9073-10 0.5, 1.0, 2.0, 3.0, 5.0, 7.0, 10.0, 25.0 µm
  9. Included Software
    1. LMS express 7 software
    2. Allows users to manually download data directly from lighthouse instruments or import lighthouse secure data files from supported counters.
    3. Manual data download from lighthouse portable particle counters via com ports and network ports
    4. Exports data tables and reports to Excel (*.xls) or CSV
    5. Exports graphs to BMP, JPEG, and more
    6. Easy unit conversion
    7. Localized dates and numbers
    8. Includes database with archiving feature
  10. Included Accessory
    1. Airstream horizontal flow cabinet
    2. Room air is taken from the top of the clean bench through a disposable pre-filter with 85% arrestance.
    3. The air is forced evenly across the ULPA filter, creating a clean stream of air within the workzone.
    4. Clean bench with standby mode for more energy saving
    5. DC ECM motor: only 155 watts (for 4 ft size)
    6. Stable and self-compensating flow
    7. ULPA filter (up to ISO class 3)
    8. Quiet operation
